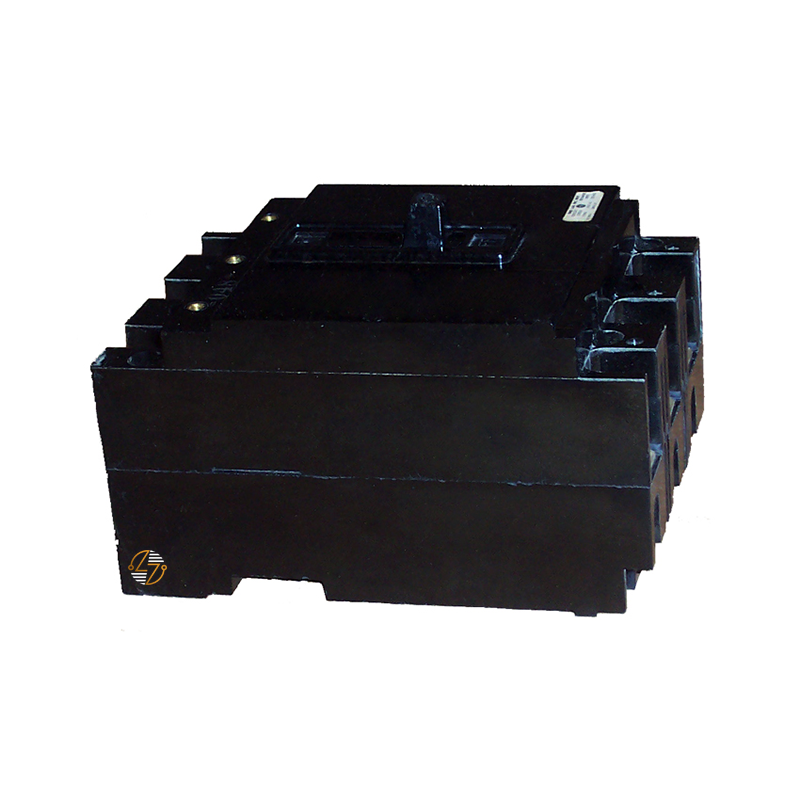

TE32060 - 60Amp Circuit Breaker

TE32060 - 60Amp Circuit Breaker

The TE32060 is a 3-pole, 60-amp molded case circuit breaker designed for use in your commercial and industrial electrical distribution systems where dependable overcurrent protection is required. Featuring a non-interchangeable thermal magnetic trip unit, this breaker helps you protect conductors and connected equipment from overloads and short circuits while providing a form, fit, and functional replacement for compatible Type TE installations. Its bolt-on mounting design provides a secure connection, and the included load-side lugs simplify installation. Built to last and engineered for long-term service, the TE32060 is well suited for maintaining your existing electrical systems that require a breaker with matching electrical ratings and physical compatibility.

Key Features and Benefits

• Part Number: TE32060
• 60 Amp Continuous Current Rating: 60 Amp continuous current rating.
• 3-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• Type TE Molded Case Industrial Circuit Breaker: Type TE molded case industrial circuit breaker.
• Bolt-On Design: Bolt-on design for secure installation in compatible equipment.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit provides protection against overloads and short circuits.
• 10kA A.I.C. Rating: 10kA A.I.C. rating at 240VAC.
• Includes Load-Side Lugs: Includes load-side lugs for convenient field installation.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible Type TE applications.
• Built to Last: Built to last for continued service in commercial and industrial electrical systems.


Technical Specifications

• Manufacturer Part Number: TE32060

• Type: TE

• Product Type: Molded Case Industrial Circuit Breaker

• Mounting Style: Bolt-On

• Poles: 3

• Amperes: 60A

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Interrupting Rating: 10kA @ 240VAC

• Voltage Rating: 240VAC

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.
• Load-Side Lugs: Included


Material Compliance and Certifications

• Manufacturing: The TE32060 is manufactured for use in electrical distribution systems requiring a Type TE molded case circuit breaker. It is intended to meet the electrical ratings specified for compatible installations.
• Installation: Users should verify compatibility with their equipment and confirm all applicable code, installation, and project requirements before installation.


Where It Works Best

• The TE32060 is commonly used in commercial and industrial electrical distribution equipment requiring a 60-amp, 3-pole, Type TE bolt-on circuit breaker. It is well suited for protecting feeders, branch circuits, motor loads, distribution panels, switchboards, and other compatible power distribution equipment where its 240VAC voltage rating and 10kA interrupting capacity match the application requirements. Its form, fit, and functional compatibility make it an excellent choice for maintaining existing electrical systems while preserving the original equipment configuration.
