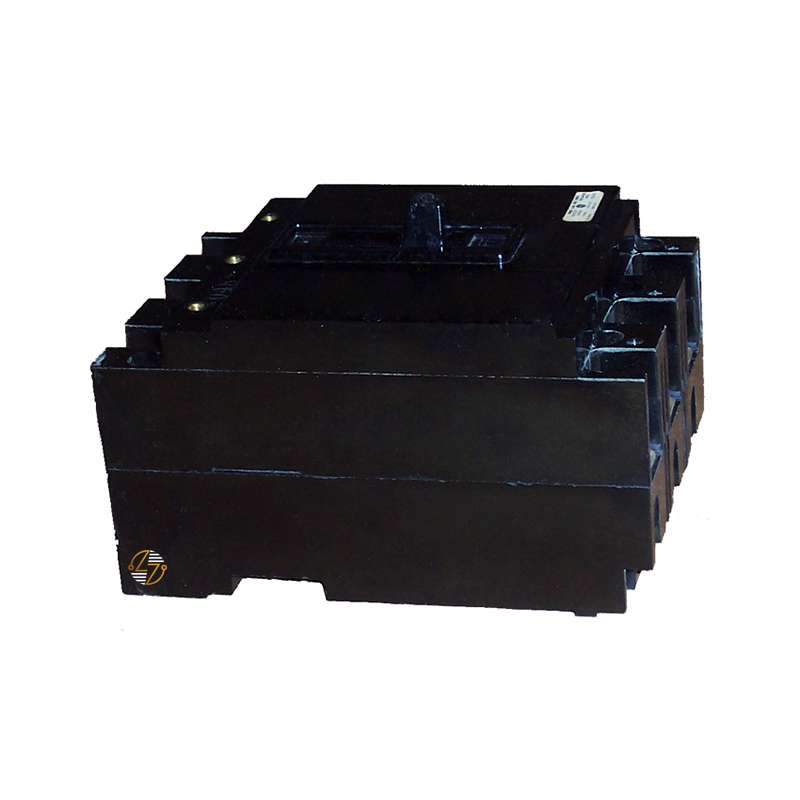

TE32050 - 50Amp Circuit Breaker

TE32050 - 50Amp Circuit Breaker

The TE32050 is a 3-pole, 50-amp TE molded case industrial circuit breaker designed for use in your commercial and industrial electrical distribution systems requiring dependable overcurrent and short-circuit protection. Featuring a non-interchangeable thermal magnetic trip unit, this breaker provides both long-time overload protection and instantaneous response to short-circuit conditions, helping you safeguard conductors and connected equipment during normal operation and fault events. Its bolt-on mounting design offers a secure installation, while the included load-side lugs simplify conductor termination. Built to last and engineered for compatibility with equipment designed for TE-series breakers, the TE32050 is an excellent choice when maintaining or replacing components in existing electrical systems where proper form, fit, and function are essential.

Key Features and Benefits

• Catalog Number: TE32050
• 50 Amp Continuous Current Rating: 50 Amp continuous current rating for commercial and industrial branch circuit protection.
• 3-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• Bolt-On Mounting: Bolt-on mounting provides a secure, stable installation.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit delivers overload and instantaneous short-circuit protection.
• 10kA A.I.C. Rating: 10kA A.I.C. rating at 240VAC for interrupting fault currents within its rated capacity.
• Includes Load-Side Lugs: Includes load-side lugs for convenient field installation.
• Form, Fit, and Functional Replacement: Designed to provide form, fit, and functional replacement in equipment designed for TE-series circuit breakers.
• Built to Last: Built to last for long-term service in properly maintained electrical systems.


Technical Specifications

• Part Number: TE32050

• Type: TE

• Circuit Breaker Type: Molded Case Industrial Circuit Breaker

• Mounting Style: Bolt-On

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Poles: 3

• Current Rating: 50 Amps

• Voltage Rating: 240 VAC

• Interrupting Rating (A.I.C.): 10kA @ 240VAC

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.
• Load Connections: Includes Load-Side Lugs


Material Compliance and Certifications

• Manufacturing: The TE32050 is manufactured for use in commercial and industrial electrical power distribution applications and is designed to meet the applicable standards associated with its original production.
• Installation: Compatibility should always be verified by confirming the breaker's part number, electrical ratings, mounting style, and panel or switchboard requirements before installation. Installation and maintenance should be performed in accordance with applicable electrical codes and by qualified personnel.


Where It Works Best

• The TE32050 is well suited for a variety of commercial and industrial applications requiring a 3-pole, 50-amp bolt-on molded case circuit breaker, including industrial control panels, panelboards, switchboards, manufacturing facilities, commercial buildings, distribution equipment, and facility maintenance and repair projects requiring a compatible TE-series replacement breaker.
