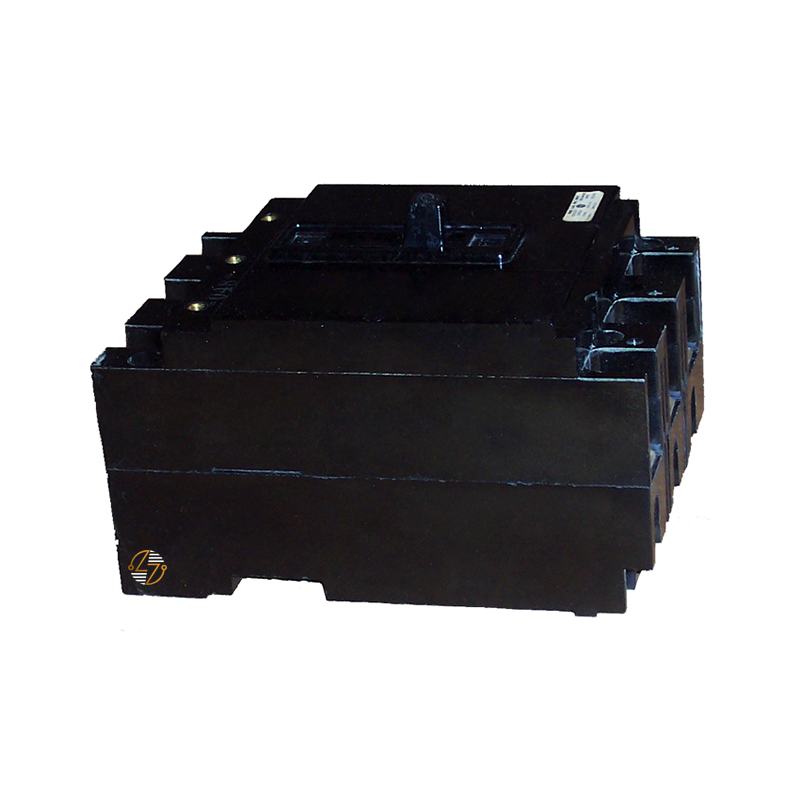

TE32040 - 40Amp Circuit Breaker

TE32040 - 40Amp Circuit Breaker

The TE32040 is a 3-pole, 40-amp Type TE molded case industrial circuit breaker designed for dependable circuit protection in your commercial and industrial electrical distribution systems. Built with a non-interchangeable thermal magnetic trip unit, this bolt-on breaker helps you protect conductors and connected equipment from overloads and short circuits while providing a secure, permanent installation. Rated for 10kA interrupting capacity at 240VAC, the TE32040 is well suited for applications where maintaining the original form, fit, and function of an existing electrical system is essential. It also includes load-side lugs, helping you to simplify installation in compatible panelboards and switchboards. Constructed for long service life, this breaker is intended to provide consistent protection in properly maintained electrical systems.

Key Features and Benefits

• 40 Amp Current Rating: 40 Amp current rating for branch circuit protection in commercial and industrial applications.
• Three-Pole Configuration: Three-pole configuration for protecting three-phase electrical systems.
• Type TE Molded Case Circuit Breaker: Type TE molded case circuit breaker for compatible electrical distribution equipment.
• Bolt-On Mounting Design: Bolt-on mounting design provides a secure mechanical and electrical connection.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit offers protection against overloads and short circuits.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 240VAC for use in appropriately rated systems.
• Load-Side Lugs Included: Includes load-side lugs for added installation convenience.
• Form, Fit, and Functional Replacement: Designed for form, fit, and functional replacement in compatible legacy electrical systems.
• Built to Last: Built to last for dependable operation in properly maintained installations.


Technical Specifications

• Part Number: TE32040

• Type: TE

• Product Type: Molded Case Industrial Circuit Breaker

• Mounting Style: Bolt-On

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Poles: 3

• Amperage: 40 Amps

• Interrupting Rating: 10kA @ 240VAC

• Voltage: 240VAC

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.
• Included Accessories: Load-Side Lugs


Material Compliance and Certifications

• Installation Requirements: The TE32040 is manufactured as a molded case circuit breaker for use in compatible electrical distribution systems. It should be installed and maintained in accordance with applicable electrical codes, equipment manufacturer requirements, and local regulations.
• Compatibility Verification: Users should verify compatibility, interrupting capacity, voltage rating, and application requirements before installation.


Where It Works Best

• The TE32040 is well suited for a variety of commercial and industrial electrical applications, including industrial control panels, commercial buildings, manufacturing facilities, distribution panelboards, switchboards, mechanical and HVAC equipment, three-phase branch circuits, and maintenance and repair projects requiring a compatible form, fit, and functional replacement for existing Type TE circuit breakers.
