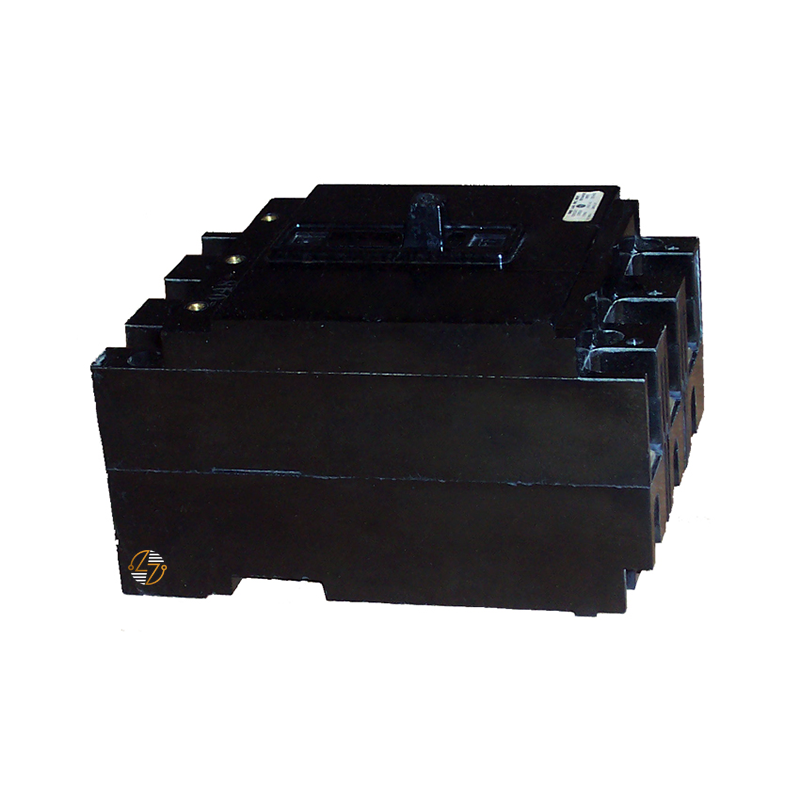

The TE32030 is a 3-pole, 30-amp molded case industrial circuit breaker designed for use in your commercial and industrial electrical distribution systems requiring a Type TE breaker. Featuring a non-interchangeable thermal magnetic trip unit, this breaker provides dependable overcurrent and short-circuit protection by responding to both prolonged overloads and instantaneous fault conditions. Its bolt-on mounting design helps you to provide a secure installation, while the included load-side lugs simplify conductor termination. Built for long service life, the TE32030 is an excellent choice when maintaining, repairing, or replacing compatible equipment where matching form, fit, and function is essential.

Key Features and Benefits

• 30 Amp Continuous Current Rating: 30 Amp continuous current rating for branch circuit protection.
• Three-Pole Configuration: Three-pole configuration for three-phase electrical systems.
• Type TE Molded Case Circuit Breaker: Type TE molded case circuit breaker.
• Bolt-On Design: Bolt-on design for secure installation in compatible panelboards and distribution equipment.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit provides protection against overloads and short circuits.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 240VAC for interrupting fault currents within its rated capacity.
• Load-Side Lugs Included: Includes load-side lugs for convenient field wiring.
• Built to Last: Built to last and intended as a form, fit, and functional replacement in compatible legacy electrical systems.


Technical Specifications

• Part Number: TE32030

• Type: TE

• Poles: 3

• Amperes: 30A

• Interrupting Rating: 10kA @ 240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting Style: Bolt-On

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Product Compliance: The TE32030 is a molded case circuit breaker manufactured for use in electrical power distribution applications and is designed to meet the ratings established for its product class. It should be installed and used in accordance with applicable electrical codes, manufacturer specifications, and the requirements of the equipment in which it is installed.
• Compatibility Verification: Always verify compatibility, voltage, amperage, interrupting capacity, and mounting configuration before installation.


Where It Works Best

• The TE32030 is well suited for commercial and industrial electrical distribution systems that require a 30-amp, 3-pole Type TE bolt-on circuit breaker. It is commonly used in compatible panelboards, switchboards, and other power distribution equipment where matching electrical ratings and physical configuration are necessary. This breaker is particularly appropriate for maintenance and repair projects where preserving the original equipment design and ensuring proper compatibility are key considerations.
