TE32020 - 20Amp Circuit Breaker

TE32020 - 20Amp Circuit Breaker

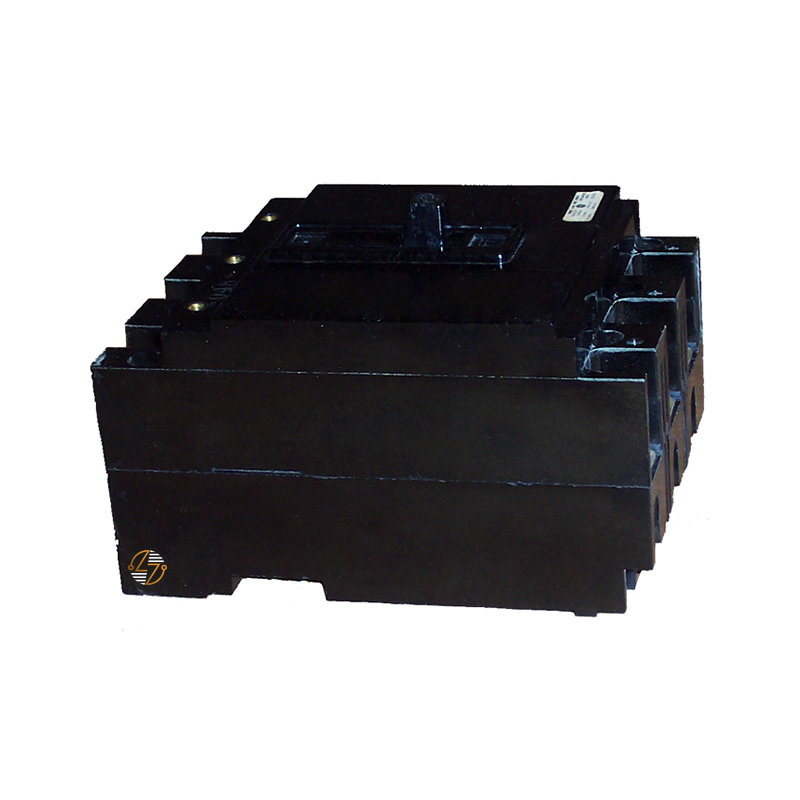

The TE32020 is a 3-pole, 20-amp Type TE molded case circuit breaker designed for use in your commercial and industrial electrical distribution systems requiring dependable branch circuit protection. Featuring a non-interchangeable thermal magnetic trip unit, this breaker provides protection against overloads and short circuits while maintaining the original form, fit, and function expected for compatible legacy equipment. Its bolt-on mounting design offers a secure installation, and the included load-side lugs help you to simplify wiring during replacement or maintenance. Built to last, the TE32020 is a practical choice for maintaining existing electrical systems where compatibility and correct electrical ratings are essential. Its 10kA interrupting rating at 240VAC and compact footprint make it well suited for a variety of panelboard and switchboard applications in commercial, industrial, and institutional environments.

Key Features and Benefits

• Part Number: TE32020.
• 20 Amp Continuous Current Rating: 20 Amp continuous current rating.
• 3-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• Type TE Molded Case Industrial Circuit Breaker: Type TE molded case industrial circuit breaker.
• Bolt-On Mounting: Bolt-on mounting provides a secure mechanical and electrical connection.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit delivers overload and short-circuit protection.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 240VAC.
• Load-Side Lugs Included: Includes load-side lugs for convenient field wiring.
• Form, Fit, and Function Replacement: Designed as a form, fit, and function replacement for compatible Type TE installations.
• Built to Last: Built to last for continued service in properly maintained electrical systems.


Technical Specifications

• Part Number: TE32020

• Type: TE

• Poles: 3

• Amperage: 20A

• Interrupting Rating: 10kA @ 240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting Style: Bolt-On

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Application Requirements: The TE32020 is manufactured as a molded case industrial circuit breaker for use in compatible electrical distribution equipment. It is intended to meet the original electrical ratings and installation requirements associated with Type TE applications.
• Installation Requirements: Always verify compatibility with your existing panel or electrical equipment and ensure installation is performed in accordance with applicable local electrical codes and manufacturer requirements.


Where It Works Best

• The TE32020 is well suited for commercial and industrial environments that utilize compatible Type TE electrical distribution equipment. Typical applications include commercial buildings, manufacturing facilities, industrial control panels, distribution panelboards, mechanical equipment, HVAC systems, pump and motor circuits, and institutional and municipal facilities.
