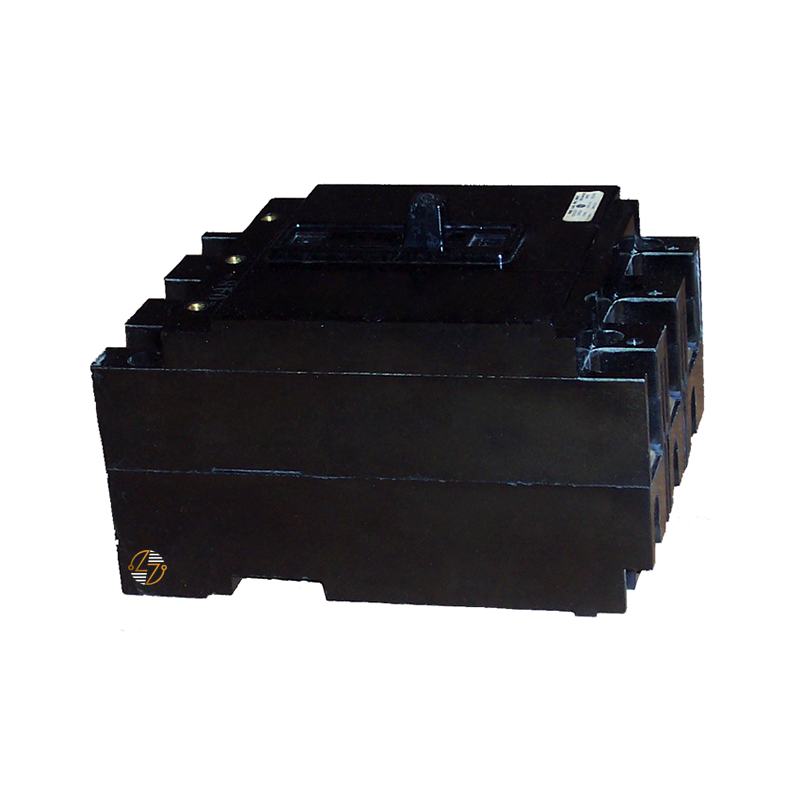

TE32015 - 15Amp Circuit Breaker

TE32015 - 15Amp Circuit Breaker

The TE32015 is a 3-pole, 15-amp molded case circuit breaker designed for use in your commercial and industrial electrical distribution systems. Built with a non-interchangeable thermal magnetic trip unit, it helps yout to protect electrical circuits by responding to both sustained overloads and short-circuit faults. Its bolt-on mounting configuration provides a secure fit in compatible equipment, while the included load-side lugs make installation more convenient. If you're maintaining an existing electrical system and need a breaker that matches the original specifications, the TE32015 offers the proper form, fit, and function for compatible Type TE applications. Built to last, it is intended for dependable service in everyday operation.

Key Features and Benefits

• 15 Amp Current Rating: 15 Amp current rating.
• Three-Pole Design: Three-pole design for three-phase electrical systems.
• Type TE Molded Case Circuit Breaker: Type TE molded case circuit breaker.
• Bolt-On Mounting: Bolt-on mounting for compatible panelboards and distribution equipment.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit.
• Load-Side Lugs Included: Includes load-side lugs.
• 10kA Interrupting Capacity: Rated 10kA interrupting capacity at 240 VAC.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement in compatible installations.
• Built to Last: Built to last for long-term use.


Technical Specifications

• Part Number: TE32015

• Type: TE

• Poles: 3

• Amperage: 15A

• Voltage Rating: 240 VAC

• Interrupting Rating: 10kA @ 240 VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting: Bolt-On

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.
• Load-Side Lugs: Included


Material Compliance and Certifications

• Installation Requirements: The TE32015 is manufactured for use in compatible electrical distribution equipment and should be installed in accordance with applicable electrical codes and the equipment manufacturer's requirements.
• Compatibility Verification: Before installation, verify that the breaker's electrical ratings, mounting style, and configuration match the intended application.


Where It Works Best

• The TE32015 is commonly found in commercial facilities, industrial buildings, and other three-phase electrical systems that require a 15-amp, 3-pole bolt-on Type TE circuit breaker. It is well-suited for replacing an existing breaker with matching specifications, helping maintain compatibility with the original equipment without altering the electrical system.
