TE22090 - 90Amp Circuit Breaker

TE22090 - 90Amp Circuit Breaker

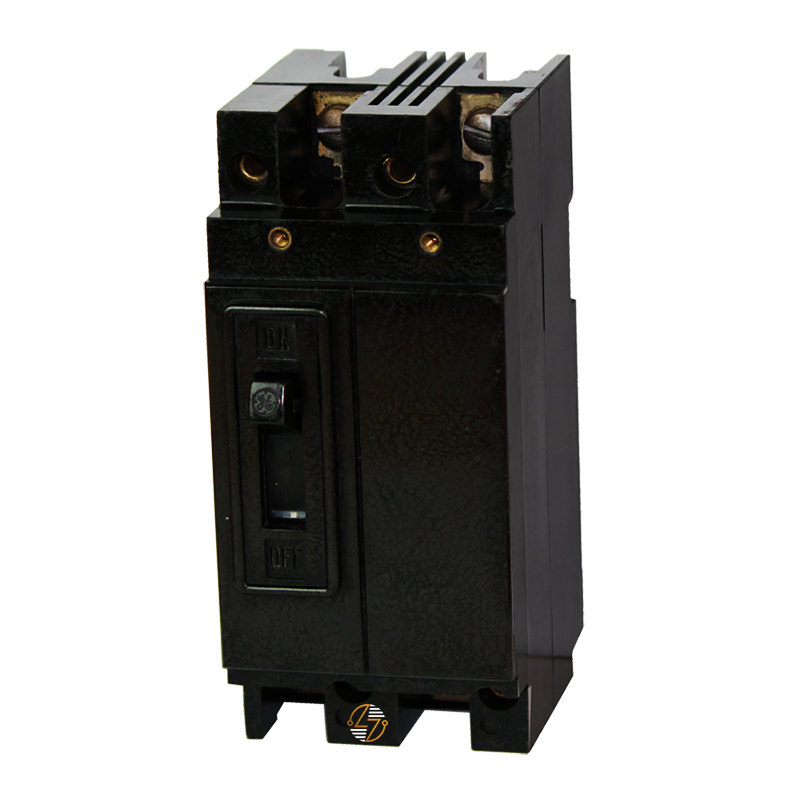

The TE22090 is a 90-amp, 2-pole Type TE molded-case circuit breaker with a bolt-on mounting design. It is rated at 10 kA at 120/240 VAC and uses a non-interchangeable thermal-magnetic trip unit to protect electrical circuits from overloads and short circuits. Load-side lugs are included. This breaker is intended for use in your compatible Type TE panelboards where the original electrical ratings and mounting style match. Before installation, confirm the amp rating, voltage, interrupting capacity, and panel compatibility. Built with a molded-case housing, the TE22090 is designed for long-term service in commercial and industrial electrical systems. It is commonly used when maintaining existing equipment or replacing a breaker with the same specifications.

Key Features and Benefits

• Part Number: TE22090.
• Type: TE.
• 90 Amp Rating: 90 Amp rating.
• Two Poles: Two poles.
• Bolt-On Mounting: Bolt-on mounting.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit.
• 10kA Interrupting Rating: 10kA interrupting rating at 120/240VAC.
• Load-Side Lugs Included: Includes load-side lugs.
• Built for Long Service Life: Built for long service life.
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible equipment.


Technical Specifications

• Part Number: TE22090

• Type: TE

• Poles: 2

• Amperage: 90 Amps

• Voltage: 120/240VAC

• Interrupting Rating: 10kA

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting: Bolt-On

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.62 in.
  • Depth: 3.38 in.
• Included: Load-Side Lugs


Material Compliance and Certifications

• Product Type: Molded case industrial circuit breaker.
• Application Requirements: Manufactured for use in compatible Type TE electrical equipment.
• Installation Requirements: Verify electrical ratings and local code requirements before installation.


Where It Works Best

• The TE22090 is used in commercial and industrial panelboards that accept Type TE bolt-on breakers. Typical applications include branch circuits, lighting, distribution equipment, and feeder circuits that require a 90-amp, 2-pole breaker rated for 120/240 VAC.
