TE22080 - 80Amp Circuit Breaker

TE22080 - 80Amp Circuit Breaker

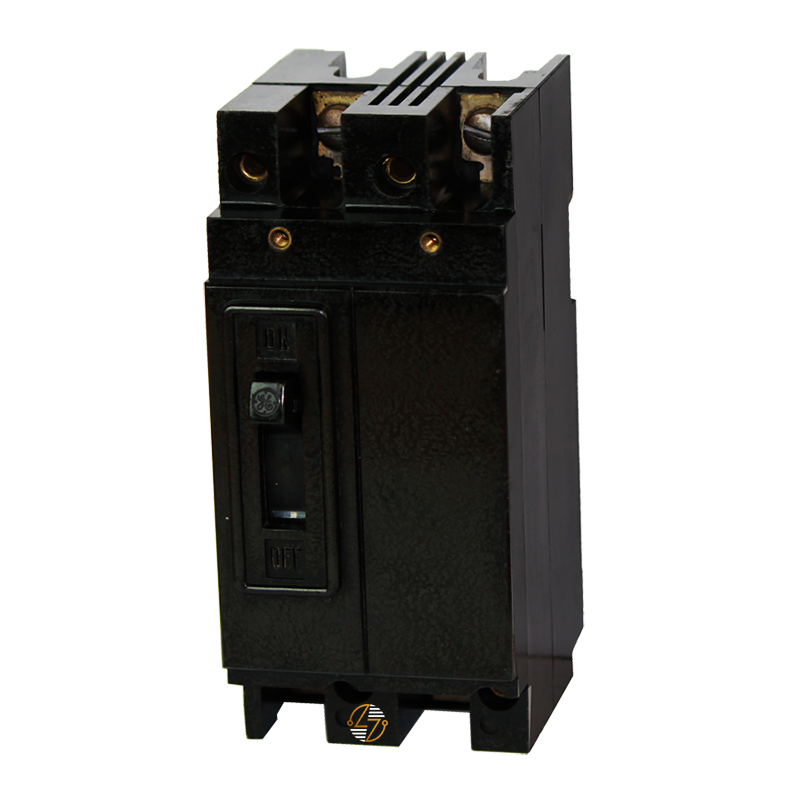

The TE22080 is a 2-pole, 80-amp Type TE circuit breaker for your compatible 120/240VAC electrical distribution equipment. It features a bolt-on mounting design, a non-interchangeable thermal-magnetic trip unit, and a 10 kA interrupting rating at 120/240 VAC. Load-side lugs are included.

Designed for use in existing Type TE installations, this molded-case circuit breaker meets the published electrical ratings and mounting configuration required for compatible equipment. The thermal-magnetic trip unit provides overcurrent protection with a fixed-trip design, and the bolt-on construction secures the breaker to the panelboard. The molded case is built to last under normal operating conditions.

Before replacing a breaker, confirm that the part number, breaker type, amperage, voltage, interrupting rating, and mounting style match the equipment manufacturer's requirements.

Key Features and Benefits

• Part Number: TE22080 part number.
• Type TE Molded Case Circuit Breaker: Type TE molded case circuit breaker.
• 80 Amp Rating: 80 Amp rating.
• 2-Pole Configuration: 2-pole configuration.
• Bolt-On Mounting: Bolt-on mounting.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit.
• 10kA Interrupting Rating: 10kA interrupting rating at 120/240VAC.
• Load-Side Lugs Included: Load-side lugs included.
• Built to Last: Built to last.
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible Type TE applications.


Technical Specifications

• Part Number: TE22080

• Type: TE

• Poles: 2

• Amperage: 80A

• Voltage: 120/240VAC

• Interrupting Rating: 10kA @ 120/240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting: Bolt-On

• Included: Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.62 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Application Requirements: This molded case circuit breaker is intended for installation in compatible electrical equipment that accepts a Type TE breaker. Installation should follow applicable electrical codes and the equipment manufacturer's instructions.
• Compatibility Verification: Verify compatibility before installation.


Where It Works Best

• The TE22080 is used in commercial and industrial electrical distribution systems that require an 80-amp, 2-pole Type TE bolt-on breaker. Typical applications include panelboards serving HVAC equipment, lighting, machinery, pumps, compressors, and general branch circuits operating on 120/240VAC systems.
