TE22070 - 70Amp Circuit Breaker

TE22070 - 70Amp Circuit Breaker

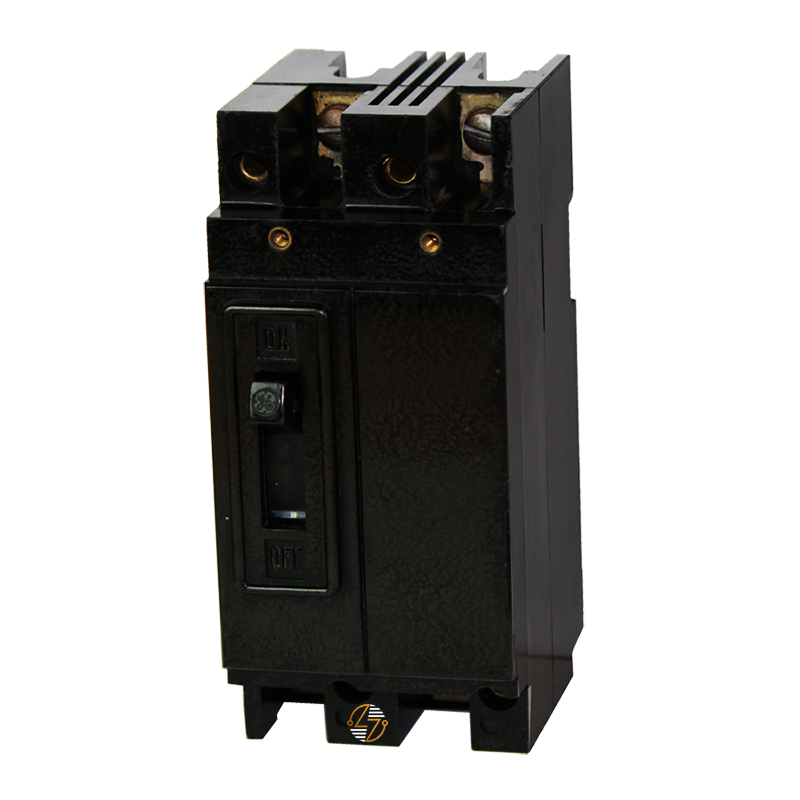

The TE22070 is a 2-pole, 70 amp Type TE molded case circuit breaker designed for use in your commercial and industrial electrical distribution systems requiring a 120/240VAC circuit breaker with a 10k A.I.C. interrupting rating. Built with a non-interchangeable thermal magnetic trip unit, this bolt-on breaker provides dependable overcurrent and short-circuit protection while maintaining proper fit and function in compatible panelboard applications. It includes load-side lugs for installation convenience and is intended as a functional replacement where a Type TE breaker with matching electrical ratings is specified. Designed for long service life, the TE22070 delivers the form, fit, and protection needed to help you keep electrical systems operating safely within their designed parameters.

Key Features and Benefits

• Part Number: TE22070.
• 70 Amp Continuous Current Rating: 70 Amp continuous current rating.
• 2-Pole Configuration: 2-pole configuration for 120/240VAC applications.
• 10k A.I.C. Interrupting Capacity: 10k A.I.C. interrupting capacity at 120/240VAC.
• Type TE Molded Case Circuit Breaker: Type TE molded case circuit breaker.
• Bolt-On Mounting: Bolt-on mounting for secure installation in compatible equipment.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit for overload and short-circuit protection.
• Load-Side Lugs Included: Includes load-side lugs to simplify installation.
• Form, Fit, and Functional Replacement: Designed for form, fit, and functional replacement in compatible legacy electrical systems.
• Built to Last: Built to last for dependable operation in demanding electrical environments.


Technical Specifications

• Part Number: TE22070

• Type: TE

• Poles: 2

• Amperage: 70A

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10k A.I.C. @ 120/240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting: Bolt-On

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.62 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Application: Manufactured as a molded case circuit breaker for commercial and industrial electrical applications.
• Thermal Magnetic Protection: Thermal magnetic protection helps safeguard branch circuits and connected equipment from overloads and short circuits.
• Installation Requirements: Intended for installation in compatible equipment and should be installed in accordance with applicable electrical codes and manufacturer requirements.
• Compatibility Verification: Verify compatibility with your existing panelboard and electrical system before installation.


Where It Works Best

• The TE22070 is well suited for commercial, industrial, and institutional electrical distribution systems that require a 2-pole, 70 amp bolt-on Type TE circuit breaker. It is commonly used in compatible panelboards serving branch circuits, machinery, HVAC equipment, lighting systems, distribution panels, and other applications where a 120/240VAC thermal magnetic molded case circuit breaker with a 10k A.I.C. rating is specified. Its bolt-on design and included load-side lugs make it an excellent choice when maintaining or replacing compatible components in existing electrical systems.
