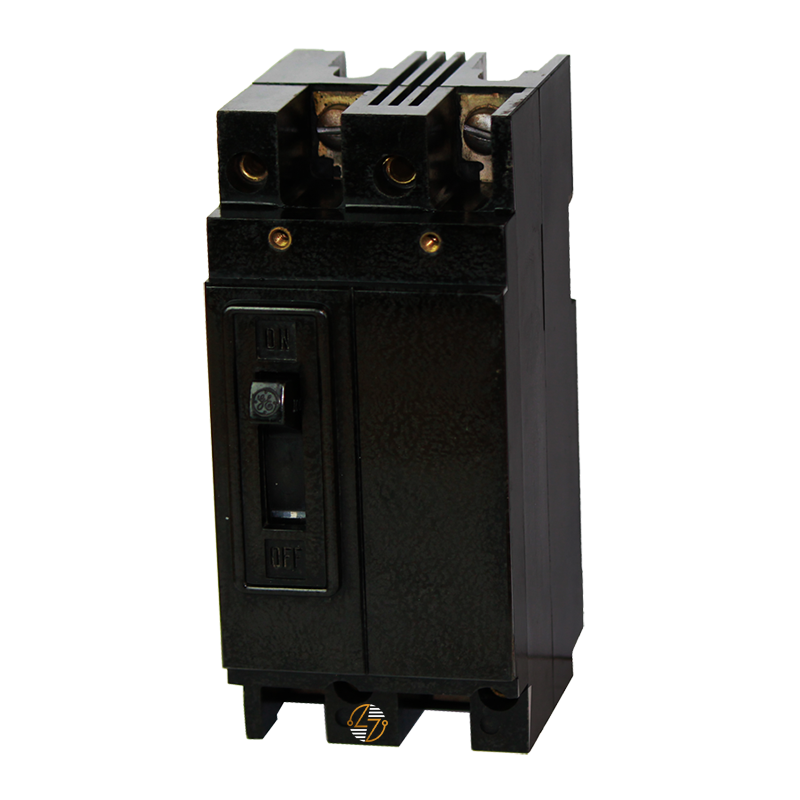

TE22050 - 50Amp Circuit Breaker

TE22050 - 50Amp Circuit Breaker

The TE22050 is a 2-pole, 50 amp bolt-on molded case circuit breaker designed for use in your commercial and industrial electrical distribution systems operating at 120/240VAC. Built with a non-interchangeable thermal magnetic trip unit, this breaker helps you provide dependable protection against overloads and short circuits while maintaining the original form, fit, and function required for compatible equipment. Its bolt-on mounting design provides a secure installation, and the included load-side lugs help you to simplify wiring during installation or replacement. Designed for long service life, the TE22050 is a practical choice for maintaining existing electrical systems where the correct breaker type and ratings are essential.

Key Features and Benefits

• Part Number: TE22050.
• 50 Amp Continuous Current Rating: 50 Amp continuous current rating for branch circuit protection.
• 2-Pole Configuration: 2-pole configuration for 120/240VAC applications.
• Bolt-On Mounting: Bolt-on mounting provides a secure mechanical connection in compatible panelboards.
• Thermal Magnetic Trip Unit: Thermal magnetic trip unit offers protection against both overload and short-circuit conditions.
• Non-Interchangeable Trip Unit: Non-interchangeable trip unit maintains the original factory configuration.
• Load-Side Lugs Included: Includes load-side lugs for convenient field installation.
• Molded Case Construction: Molded case construction designed for durability in commercial and industrial environments.
• Built to Last: Built to last while providing the proper form, fit, and function for compatible electrical systems.


Technical Specifications

• Part Number: TE22050

• Type: TE

• Poles: 2

• Amperage: 50 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Rating (A.I.C.): 10kA @ 120/240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting Style: Bolt-On

• Construction: Molded Case Circuit Breaker

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.62 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Construction: Molded case industrial circuit breaker construction.
• Thermal Magnetic Protection: Thermal magnetic overcurrent protection.
• Product Specifications: Manufactured to meet the original product specifications for its designated application.
• Installation Requirements: Suitable for installation in compatible electrical equipment when used in accordance with applicable electrical codes, manufacturer requirements, and local regulations.


Where It Works Best

• The TE22050 is well suited for commercial and industrial electrical distribution systems requiring a 2-pole, 50 amp, 120/240VAC bolt-on circuit breaker. It is commonly used in compatible panelboards and distribution equipment to protect feeders, branch circuits, HVAC equipment, lighting systems, machinery, and other electrical loads where the specified voltage, interrupting rating, and mounting configuration match the original equipment requirements. When replacing an existing breaker, matching the part number, type, amperage, pole configuration, voltage rating, and mounting style helps ensure proper compatibility and intended operation.
