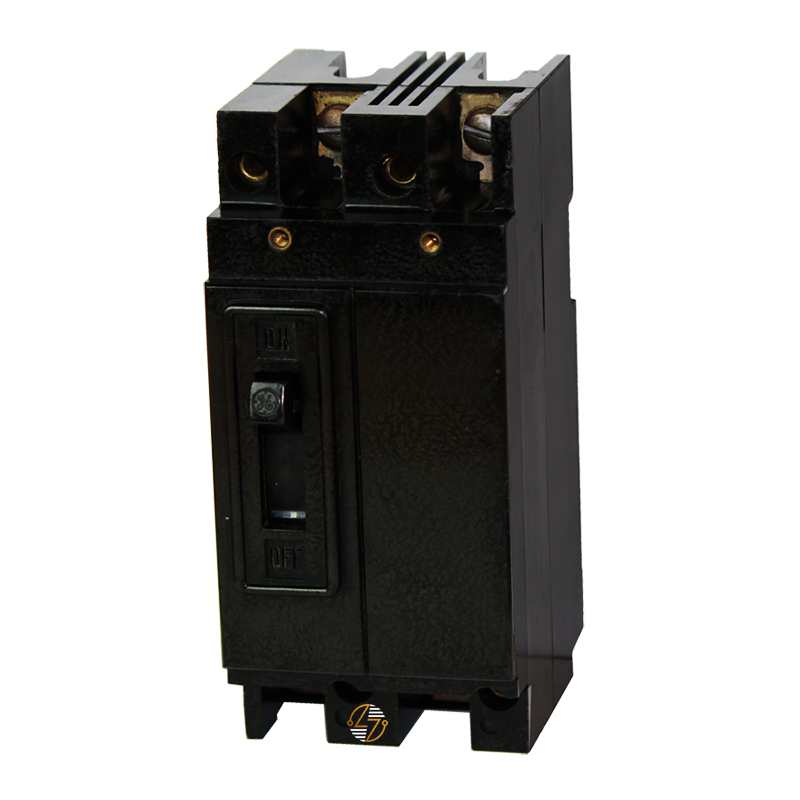

TE22040 - 40Amp Circuit Breaker

TE22040 - 40Amp Circuit Breaker

When you need a 40-amp, 2-pole replacement circuit breaker for compatible TE panelboards and electrical distribution equipment, the TE22040 is built to match the original installation. This molded case industrial circuit breaker features a bolt-on design, making it suitable for applications where a secure mechanical connection is required. Its non-interchangeable thermal magnetic trip unit responds to both overloads and short circuits, helping protect connected equipment and wiring under normal operating conditions. Rated 10kA at 120/240VAC, the TE22040 is intended for use in commercial and industrial electrical systems that require the same electrical ratings and physical configuration. Load-side lugs are included, making installation more straightforward when used in compatible equipment. Built to last, this breaker is a practical choice for maintaining existing electrical systems while preserving the original form, fit, and function.

Key Features and Benefits

• 40 Amp Current Rating: 40 Amp current rating.
• Two-Pole Configuration: Two-pole configuration.
• TE Molded Case Industrial Circuit Breaker: TE molded case industrial circuit breaker.
• Bolt-On Mounting Design: Bolt-on mounting design.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit.
• 10kA Interrupting Rating: 10kA interrupting rating at 120/240VAC.
• Load-Side Lugs Included: Load-side lugs included.
• Form, Fit, and Functional Replacement: Designed for form, fit, and functional replacement in compatible equipment.
• Built to Last: Built to last for long-term service.


Technical Specifications

• Part Number: TE22040

• Type: TE

• Poles: 2

• Amperage: 40 Amps

• Voltage: 120/240VAC

• A.I.C. Rating: 10kA @ 120/240VAC

• Mounting: Bolt-On

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.62 in.
  • Depth: 3.38 in.
• Included: Load-Side Lugs


Material Compliance and Certifications

• Product Type: Molded case circuit breaker designed for use in compatible electrical distribution equipment.
• Thermal Magnetic Protection: The thermal magnetic trip unit provides overload and short-circuit protection.
• Installation Requirements: Installation should be performed in accordance with applicable electrical codes and the equipment manufacturer's specifications.
• Compatibility Verification: Always confirm compatibility with the existing panel or electrical system before installation.


Where It Works Best

• The TE22040 is commonly used in commercial facilities, industrial buildings, manufacturing equipment, and electrical distribution panels that require a 40-amp, 2-pole TE bolt-on circuit breaker. It's intended as a replacement for compatible systems where matching the original breaker type, mounting method, and electrical ratings is important.
