TE22030 - 30Amp Circuit Breaker

TE22030 - 30Amp Circuit Breaker

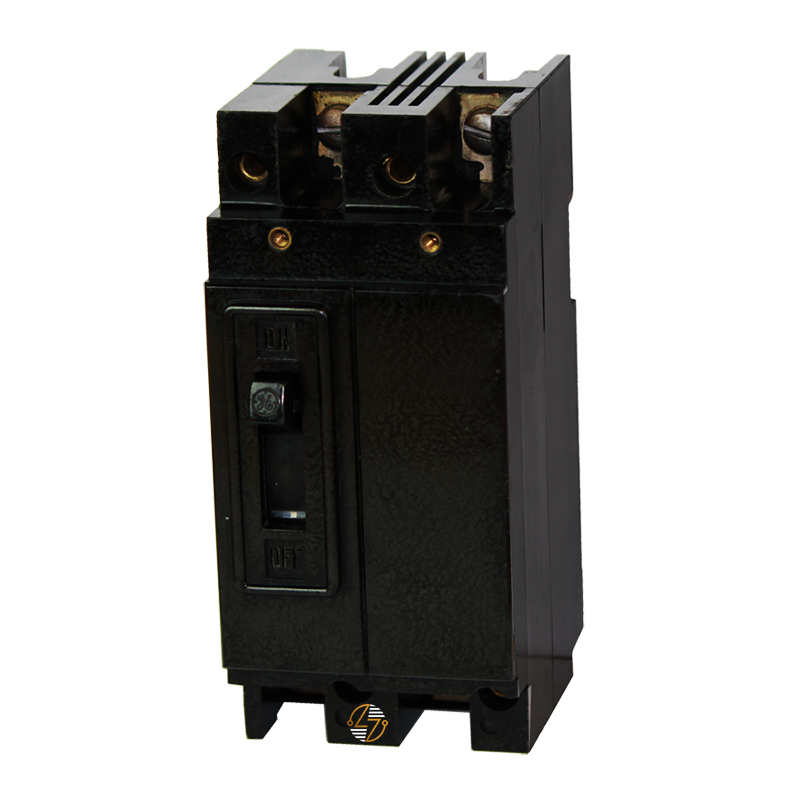

The TE22030 is a 2-pole, 30-amp Type TE molded case circuit breaker designed for use in your electrical distribution systems requiring dependable branch circuit protection. Featuring a non-interchangeable thermal magnetic trip unit, this breaker helps you protect conductors and connected equipment from overloads and short circuits while providing the proper form, fit, and function for compatible legacy installations. Its bolt-on mounting design offers a secure connection to approved panelboards, and the included load-side lugs simplify installation. Built to last, the TE22030 is well suited for commercial and industrial electrical systems where maintaining compatibility with existing equipment is essential. This breaker carries a 10kA interrupting rating at 120/240VAC, making it an appropriate replacement for applications that require these electrical specifications.

Key Features and Benefits

• 30 Amp Current Rating: 30 Amp current rating for branch circuit protection.
• 2-Pole Configuration: 2-pole configuration for 120/240VAC electrical systems.
• Type TE Molded Case Circuit Breaker: Type TE molded case circuit breaker.
• Bolt-On Design: Bolt-on design provides a secure panelboard connection.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit helps protect against overloads and short circuits.
• Load-Side Lugs Included: Includes load-side lugs for added installation convenience.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 120/240VAC.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible Type TE applications.
• Built to Last: Built to last for continued service in properly maintained electrical systems.


Technical Specifications

• Manufacturer Part Number: TE22030

• Type: TE

• Circuit Breaker Type: Molded Case Industrial Circuit Breaker

• Mounting Style: Bolt-On

• Poles: 2

• Amperes: 30A

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Interrupting Rating: 10kA @ 120/240VAC

• Voltage Rating: 120/240VAC

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.62 in.
  • Depth: 3.38 in.
• Included Accessories: Load-Side Lugs


Material Compliance and Certifications

• Application: Manufactured for use in compatible electrical distribution equipment.
• Thermal Magnetic Protection: Thermal magnetic protection designed to provide overload and short-circuit protection.
• Compatibility Verification: Verify compatibility with the existing panelboard and electrical system before installation.
• Installation Requirements: Installation should be performed in accordance with applicable electrical codes and manufacturer requirements.


Where It Works Best

• The TE22030 is commonly used in commercial, industrial, and institutional electrical distribution systems that utilize compatible Type TE bolt-on panelboards. It is well suited for protecting branch circuits serving lighting, receptacles, HVAC equipment, machinery, control panels, and other loads that require a 2-pole, 30-amp, 120/240VAC circuit breaker with a 10kA interrupting rating. When replacing an existing compatible breaker, the TE22030 provides the proper form, fit, and function to help maintain the integrity of the original electrical system.
