TE22020 - 20Amp Circuit Breaker

TE22020 - 20Amp Circuit Breaker

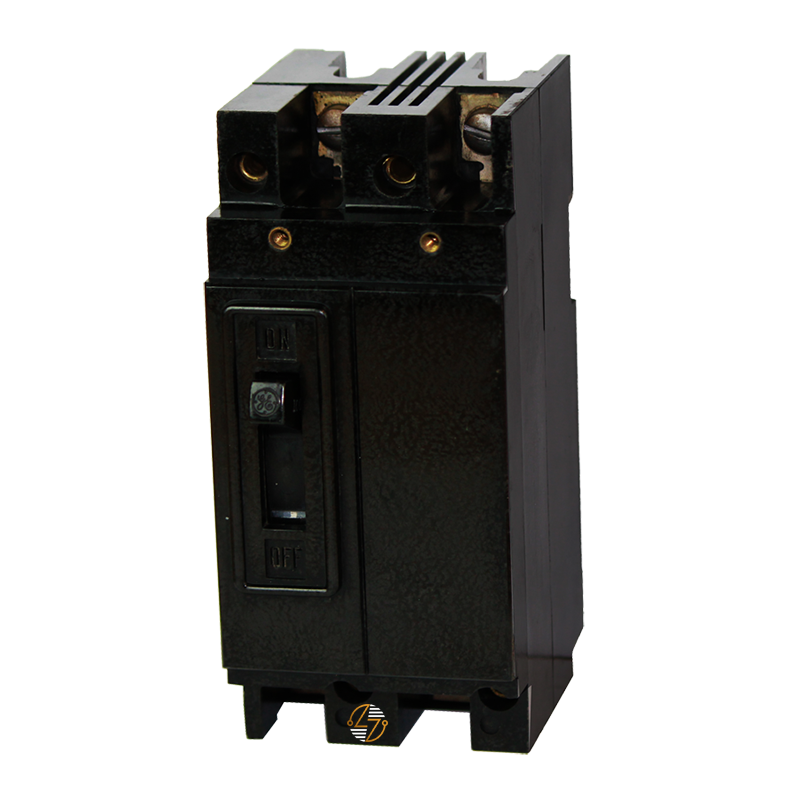

The TE22020 is a 2-pole, 20-amp Type TE molded case circuit breaker with a bolt-on mounting design for your compatible commercial and industrial electrical equipment. It uses a non-interchangeable thermal magnetic trip unit to help you protect circuits from overloads and short circuits and carries a 10k A.I.C. rating at 120/240VAC.

This breaker includes load-side lugs and is intended for applications where a Type TE breaker with these electrical ratings is required. Before installation, always confirm that the breaker type, amp rating, interrupting capacity, and mounting configuration match the existing equipment. Built to last, the TE22020 is a practical replacement for maintaining compatible electrical distribution systems.

Key Features and Benefits

• TE22020 Circuit Breaker: TE22020 circuit breaker.
• Type: TE.
• Bolt-On Mounting: Bolt-on mounting.
• 2 Poles: 2 poles.
• 20 Amp Rating: 20 Amp rating.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit.
• 10k A.I.C.: 10k A.I.C. at 120/240VAC.
• Load-Side Lugs Included: Load-side lugs included.
• Form, Fit, and Functional Replacement: Designed for form, fit, and functional replacement in compatible equipment.
• Built to Last: Built to last.


Technical Specifications

• Part Number: TE22020

• Type: TE

• Poles: 2

• Amperage: 20A

• Voltage: 120/240VAC

• Interrupting Rating: 10k A.I.C.

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting: Bolt-On

• Load Connections: Load-Side Lugs Included

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.62 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Construction: Molded case circuit breaker construction.
• Trip Mechanism: Thermal magnetic trip mechanism.
• Application: Intended for use in compatible Type TE electrical equipment.
• Installation Requirements: Verify compatibility before installation and follow all applicable electrical codes.


Where It Works Best

• The TE22020 is used in compatible commercial and industrial panelboards and other electrical distribution equipment that require a 20-amp, 2-pole Type TE bolt-on circuit breaker. Typical applications include branch circuits serving lighting, HVAC systems, pumps, compressors, and other equipment operating on 120/240VAC systems.
