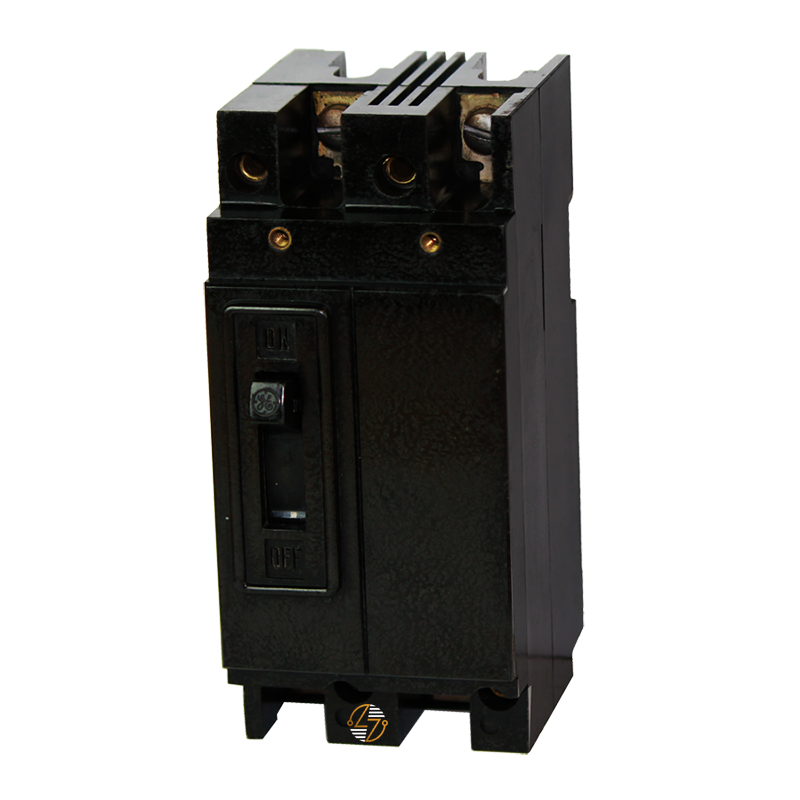

TE22015 - 15Amp Circuit Breaker

TE22015 - 15Amp Circuit Breaker

The TE22015 is a 2-pole, 15-amp Type TE molded case circuit breaker designed for use in your compatible bolt-on electrical distribution equipment operating at 120/240VAC. Built with a non-interchangeable thermal magnetic trip unit, this breaker provides protection against overloads and short circuits while helping you to maintain the safe operation of branch circuits in commercial and industrial electrical systems. Its bolt-on mounting design provides a secure installation, making it well suited as a form, fit, and functional replacement for compatible existing equipment. The breaker also includes load-side lugs, simplifying conductor termination during installation. Built to last and manufactured for dependable circuit protection, the TE22015 is an excellent choice for maintaining compatible legacy electrical systems where matching specifications and proper fit are essential.

Key Features and Benefits

• Part Number: TE22015.
• 15 Amp Continuous Current Rating: 15 Amp continuous current rating.
• 2-Pole Configuration: 2-pole configuration for 120/240VAC applications.
• 10kA A.I.C. Rating: 10kA A.I.C. rating at 120/240VAC.
• Bolt-On Mounting: Bolt-on mounting for secure installation in compatible equipment.
• Molded Case Circuit Breaker: Molded case circuit breaker designed for commercial and industrial electrical systems.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit helps protect against overloads and short circuits.
• Load-Side Lugs Included: Includes load-side lugs for conductor termination.
• Built to Last: Built to last for long-term service in compatible electrical distribution systems.
• Form, Fit, and Functional Replacement: Ideal as a form, fit, and functional replacement for compatible Type TE circuit breakers.


Technical Specifications

• Part Number: TE22015

• Type: TE

• Product Type: Molded Case Industrial Circuit Breaker

• Mounting Style: Bolt-On

• Poles: 2

• Amperage: 15A

• Voltage Rating: 120/240VAC

• Interrupting Rating (A.I.C.): 10kA @ 120/240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.62 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Application Requirements: The TE22015 is manufactured for use in electrical power distribution applications and is designed to meet the specifications associated with compatible Type TE installations.
• Compatibility Verification: Always verify compatibility with your electrical panel or switchboard and confirm that installation complies with applicable local, state, and national electrical codes.
• Installation Review: Product ratings and installation should be reviewed by a qualified electrical professional before energizing the system.


Where It Works Best

• The TE22015 is well suited for commercial and industrial facilities that use compatible Type TE bolt-on panelboards and distribution equipment. It is commonly used to protect branch circuits serving lighting systems, HVAC equipment, machinery, control panels, and other electrical loads requiring a 2-pole, 15-amp, 120/240VAC circuit breaker. When replacing an existing breaker, matching the part number, electrical ratings, mounting style, and panel compatibility helps ensure proper fit and intended operation.
