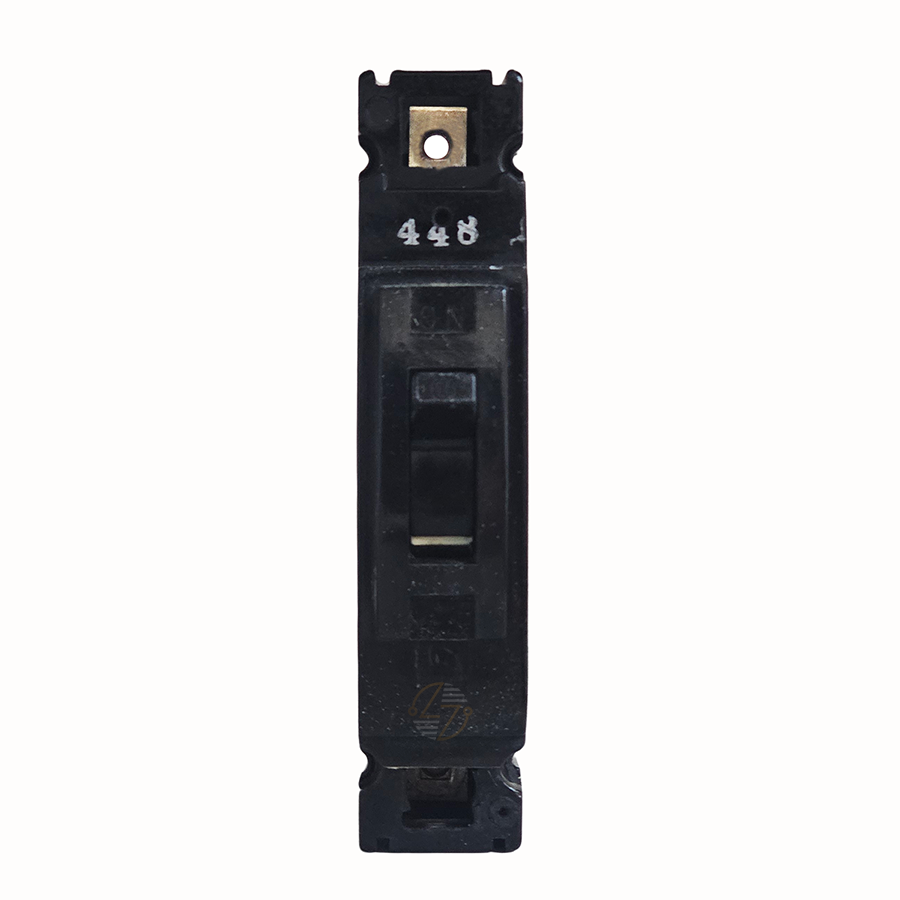

TE111015 - 15Amp Circuit Breaker

TE111015 - 15Amp Circuit Breaker

If you're replacing a TE111015 circuit breaker, matching the original specifications is just as important as finding the correct part number. This 1-pole, 15-amp TE frame molded-case circuit breaker is designed for use with compatible electrical distribution equipment and features a non-interchangeable thermal-magnetic trip unit to protect circuits from overloads and short circuits. The bolt-on design provides a secure connection inside compatible panelboards and switchboards, and load-side lugs are included to simplify installation. With an interrupting rating of 10 kA at 120 VAC, the TE111015 is a practical choice for maintaining existing commercial and industrial electrical systems. Built for long-term service, it delivers the form, fit, and function needed when replacing a compatible breaker without changing the original equipment configuration.

Key Features and Benefits

• TE111015 Molded Case Industrial Circuit Breaker: TE111015 molded case industrial circuit breaker.
• 1-Pole Design: 1-pole design.
• 15 Amp Current Rating: 15 Amp current rating.
• TE Frame Configuration: TE frame configuration.
• Bolt-On Mounting: Bolt-on mounting.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 120VAC.
• Includes Load-Side Lugs: Includes load-side lugs.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible TE frame equipment.
• Built to Last: Built to last in commercial and industrial electrical applications.


Technical Specifications

• Part Number: TE111015

• Frame: TE

• Type: Molded Case Industrial Circuit Breaker

• Mounting: Bolt-On

• Poles: 1

• Current Rating: 15 Amps

• Voltage Rating: 120VAC

• Interrupting Rating: 10kA @ 120VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Included: Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 1.38 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Equipment Compatibility: The TE111015 is manufactured for use in compatible electrical distribution equipment and is intended to meet the ratings associated with its design.
• Installation Requirements: Always confirm compatibility with your existing electrical equipment and follow applicable electrical codes and manufacturer installation requirements.


Where It Works Best

• The TE111015 is commonly found in commercial and industrial electrical systems that require a 15-amp, single-pole, bolt-on TE frame circuit breaker. It's well suited for maintaining existing panelboards and switchboards, helping protect branch circuits, lighting circuits, and other general electrical loads in compatible installations.
