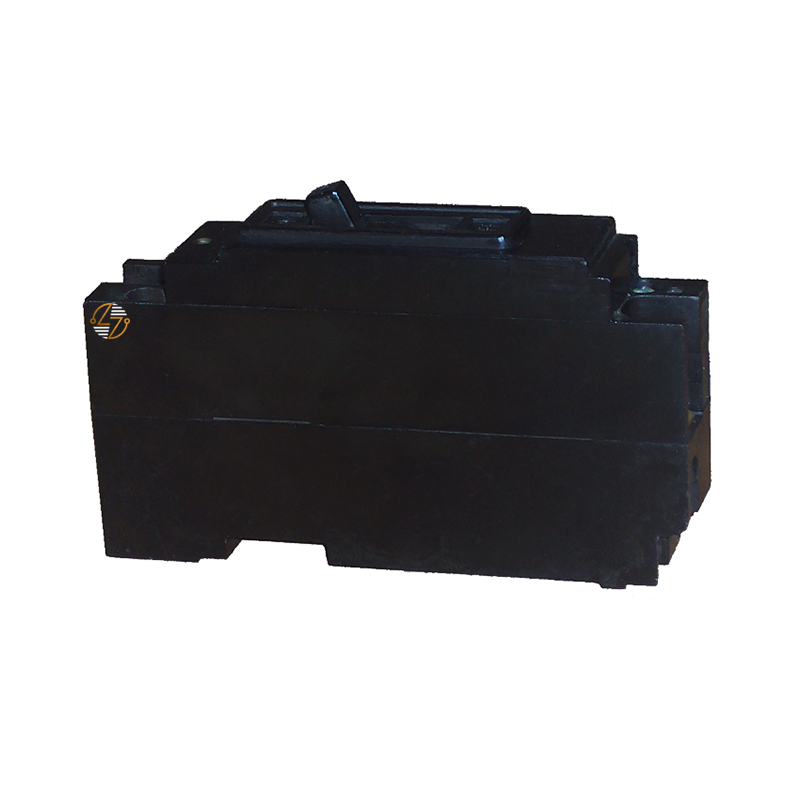

TE11030 - 30Amp Circuit Breaker

TE11030 - 30Amp Circuit Breaker

The TE11030 is a 1-pole, 30-amp Type TE molded case circuit breaker designed for use in your compatible electrical distribution systems requiring dependable branch circuit protection. Featuring a non-interchangeable thermal magnetic trip unit, this breaker helps you to protect electrical circuits from overloads and short circuits while maintaining proper form, fit, and function within existing installations. Its bolt-on mounting design provides a secure connection to the panelboard, and the included load-side lugs simplify installation. Built to last, the TE11030 is well suited for your commercial and industrial electrical systems where matching the original breaker type and electrical ratings is essential for maintaining safe, reliable operation.

Key Features and Benefits

• 30-amp, single-pole molded case circuit breaker: For branch circuit protection.
• Type TE configuration: For compatibility with designated panelboards and distribution equipment.
• Bolt-on design: Provides a secure mechanical and electrical connection.
• Non-interchangeable thermal magnetic trip unit: Responds to overloads and short circuits.
• Rated 10kA interrupting capacity: At 120VAC.
• Includes load-side lugs: For straightforward field installation.
• Compact design: Fits applications requiring the original form, fit, and function.
• Built to last: For continued service in compatible legacy electrical systems.


Technical Specifications

• Part Number: TE11030

• Type: TE

• Product Type: Molded Case Industrial Circuit Breaker

• Mounting Style: Bolt-On

• Poles: 1

• Amperage: 30 Amps

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Interrupting Rating: 10kA @ 120VAC

• Voltage Rating: 120VAC

• Dimensions:
  • Height: 6.0 in.
  • Width: 1.31 in.
  • Depth: 3.31 in.
• Load-Side Lugs: Included


Material Compliance and Certifications

• Installation Requirements: The TE11030 is manufactured for installation in compatible electrical distribution equipment and is intended to meet the original equipment form, fit, and functional requirements.
• Compatibility and Safety: Always verify compatibility with your panelboard, voltage requirements, conductor sizing, and applicable national, state, and local electrical codes before installation. Installation and servicing should be performed by qualified electrical personnel following accepted safety practices.


Where It Works Best

• The TE11030 is well suited for commercial and industrial electrical distribution systems that require a 30-amp, single-pole Type TE bolt-on circuit breaker. It is commonly used in panelboards and other compatible power distribution equipment where maintaining the original breaker configuration and electrical ratings is important. This breaker is an excellent choice for replacing an existing compatible unit while preserving the intended protection and operation of the electrical system.
