TE11020 - 20Amp Circuit Breaker

TE11020 - 20Amp Circuit Breaker

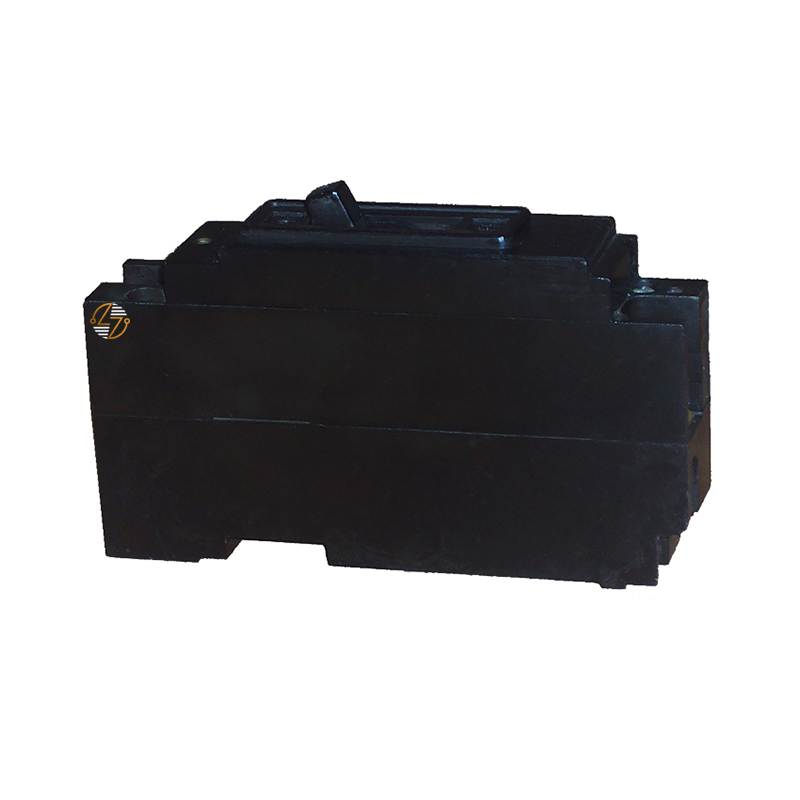

The TE11020 is a 20 Amp, 1-pole Type TE molded case circuit breaker used in compatible commercial and industrial electrical distribution systems. It features a bolt-on mounting design and a non-interchangeable thermal magnetic trip unit that responds to both overloads and short circuits. With a 10kA interrupting rating at 120VAC, it provides the protection required for many branch circuit applications while matching the original electrical ratings of compatible equipment. If you're replacing an existing breaker, compatibility matters just as much as the electrical specifications. The TE11020 is built to match the original form, fit, and function of compatible Type TE installations, helping maintain the integrity of the existing electrical system without requiring modifications. Load-side lugs are included, and the molded case construction is built to last in demanding commercial and industrial environments.

Key Features and Benefits

• 20 Amp Current Rating: 20 Amp current rating.
• Single-Pole Configuration: Single-pole configuration.
• Bolt-On Mounting: Bolt-on mounting for compatible panelboards.
• Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit.
• Interrupting Rating: 10kA interrupting rating at 120VAC.
• Load-Side Lugs Included: Includes load-side lugs.
• Molded Case Construction: Molded case construction built to last.
• Form, Fit, and Function: Form, fit, and functional replacement for compatible Type TE systems.


Technical Specifications

• Part Number: TE11020

• Type: TE

• Circuit Breaker Type: Molded Case Industrial Circuit Breaker

• Mounting Style: Bolt-On

• Poles: 1

• Amperage: 20A

• Voltage Rating: 120VAC

• Interrupting Capacity: 10kA @ 120VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Dimensions:
  • Height: 6.0 in.
  • Width: 1.31 in.
  • Depth: 3.31 in.
• Included: Load-Side Lugs


Material Compliance and Certifications

• Molded Case Circuit Breaker: Molded case circuit breaker for compatible electrical distribution equipment.
• Thermal Magnetic Trip Unit: Thermal magnetic trip unit provides overload and short-circuit protection.
• Application: Designed for use where a Type TE bolt-on circuit breaker is specified.
• Installation Note: Always confirm compatibility with the existing panelboard and application before installation.


Where It Works Best

• The TE11020 is commonly found in commercial buildings, industrial facilities, schools, healthcare facilities, and similar properties using Type TE electrical distribution equipment. It is suitable for protecting 120VAC branch circuits serving lighting, receptacles, control panels, and other general electrical loads where a 20 Amp, single-pole bolt-on circuit breaker is required.
