TE11015 - 15Amp Circuit Breaker

TE11015 - 15Amp Circuit Breaker

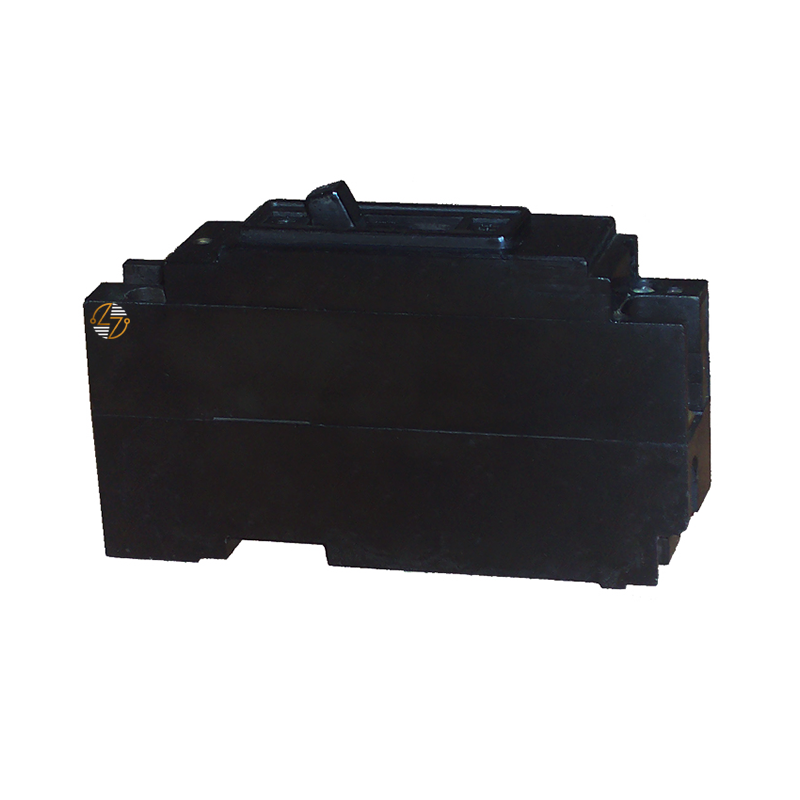

The TE11015 is a 1-pole, 15-amp molded-case circuit breaker built on the TE frame with a bolt-on mounting design. It is intended for use in compatible electrical distribution equipment that requires a breaker with these exact electrical and mechanical characteristics. The breaker uses a non-interchangeable thermal magnetic trip unit, which responds to sustained overloads as well as short-circuit faults. It is rated for 120VAC applications with a 10kA interrupting capacity, making it suitable for a variety of branch circuit protection requirements. Load-side lugs are included for installation. When you're maintaining an existing electrical system, matching the original frame type, pole count, amperage rating, voltage, and interrupting rating is important when selecting the correct replacement. The TE11015 is built to last and is intended to provide the same form, fit, and function as the original breaker in compatible equipment.

Key Features and Benefits

• TE Frame Molded Case Circuit Breaker: Built on the TE frame with a molded-case design for use in compatible electrical distribution equipment.
• 15 Amp Rating: Rated for 15 amps with a single-pole configuration for compatible branch circuit protection applications.
• Thermal Magnetic Trip Unit: Uses a non-interchangeable thermal magnetic trip unit that responds to sustained overloads as well as short-circuit faults.
• Bolt-On Mounting: Features a bolt-on mounting design with load-side lugs included for installation.
• Rated 10kA at 120VAC: Provides a 10kA interrupting capacity at 120VAC for compatible applications.
• Built to Last: Designed for form, fit, and functional replacement in compatible equipment to provide continued service in existing electrical systems.


Technical Specifications

• Part Number: TE11015

• Frame: TE

• Circuit Breaker Type: Molded Case Industrial Circuit Breaker

• Poles: 1

• Current Rating: 15 Amps

• Voltage Rating: 120VAC

• Interrupting Capacity: 10kA @ 120VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting Style: Bolt-On

• Included: Load-Side Lugs

• Dimensions:
  • Height: 6.0 in.
  • Width: 1.31 in.
  • Depth: 3.31 in.

Material Compliance and Certifications

• Installation Requirements: This circuit breaker is intended for installation in equipment designed to accept a compatible TE frame breaker. Verify the required electrical ratings and physical configuration before installation.
• Code Compliance: Installation should be completed in accordance with the National Electrical Code (NEC), local regulations, and the equipment manufacturer's instructions.


Where It Works Best

• The TE11015 is commonly found in commercial and industrial electrical distribution systems using compatible TE frame bolt-on breakers. Typical applications include lighting circuits, receptacle circuits, control panels, and other branch circuits operating at 120VAC. It is intended for situations where maintaining the original equipment specifications is required.
