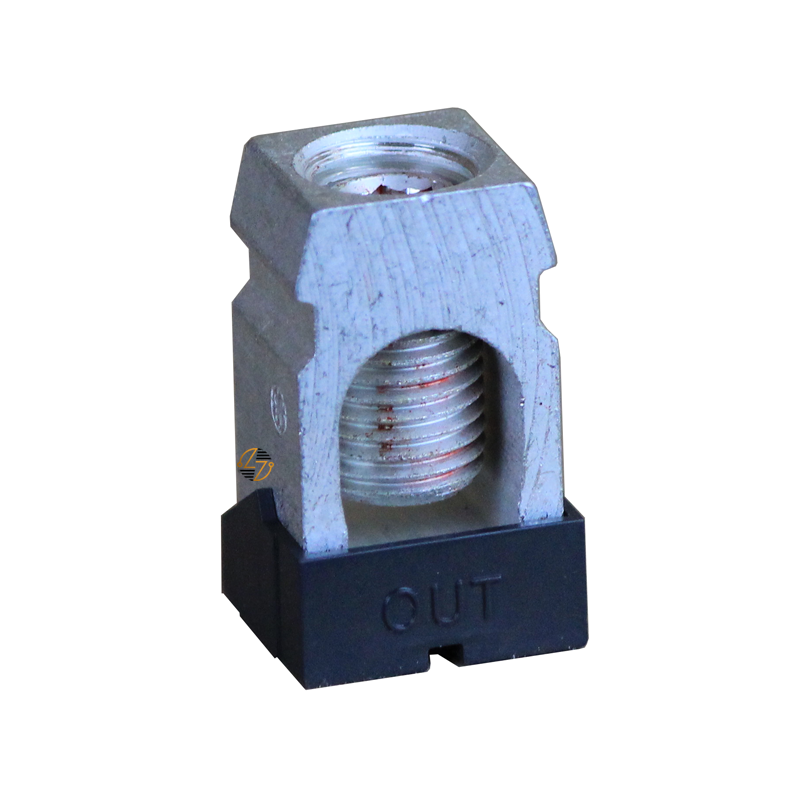

TCAL18 - 150Amp Max. Lug

TCAL18 - 150Amp Max. Lug

The TCAL18 is a 150 Amp maximum lug for compatible SE*A frame equipment. It serves as the conductor termination point within the assembly and is intended for replacement or maintenance of existing electrical equipment. If you're replacing an original lug, matching the correct part helps maintain proper fit and installation. The compact dimensions also make it suitable for equipment where available space is limited. Built to last, the TCAL18 is intended for continued use in compatible applications when installed correctly.

Key Features and Benefits

• Compatible with SE*A Frame Equipment: Compatible with SE*A frame equipment.
• Rated for Conductors up to 150 Amps: Rated for conductors up to 150 Amps.
• Form, Fit, and Functional Replacement: Intended as a form, fit, and functional replacement.
• Compact Size: Compact size for compatible installations.
• Built to Last: Built to last under normal operating conditions.
• Supports Maintenance: Supports routine maintenance and repair work.

Technical Specifications

• Part Number: TCAL18

• Product Type: Lug

• Maximum Rating: 150 Amp

• Compatible Frame: SE*A Frame

• Dimensions:
  • Height: 1.25 in.
  • Width: 1.00 in.
  • Depth: 1.00 in.
• Additional Notes: 150 Amp Max Lug for SE*A frame


Material Compliance and Certifications

• Manufacturing: Manufactured for use with compatible electrical equipment.
• Compatibility: Verify compatibility before installation.
• Installation: Install in accordance with applicable electrical codes and the equipment manufacturer's instructions.

Where It Works Best

• The TCAL18 is used during repairs and scheduled maintenance of compatible SE*A frame equipment. It's commonly installed when replacing a damaged or missing lug to return the equipment to its original configuration. This component is appropriate for commercial and industrial electrical systems that require a 150 Amp maximum lug compatible with the specified frame.
