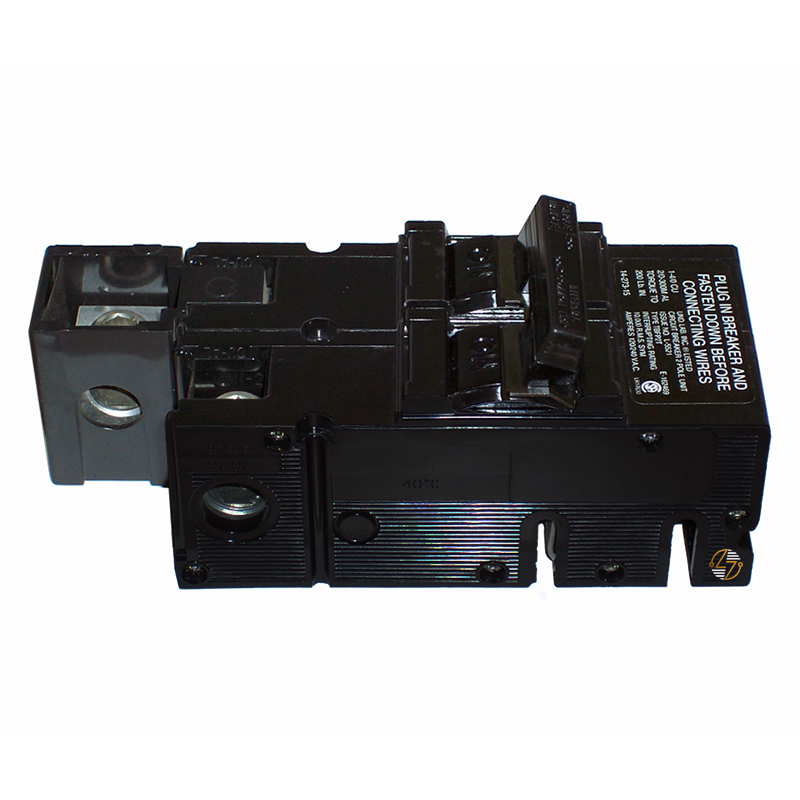

TBFP2200-2T - 200 Amp Circuit Breaker

TBFP2200-2T - 200 Amp Circuit Breaker

When you need a 200 amp, 2-pole main residential plug-in circuit breaker, the TBFP2200-2T provides the electrical ratings and physical configuration required for compatible installations. This molded case thermal magnetic circuit breaker is designed to help protect electrical systems from overloads and short circuits while matching the form and fit of existing TBFP-style applications.

One feature that sets this breaker apart is its off-set lug design, which allows conductors to enter perpendicular to the length of the breaker. That configuration can make installation more straightforward in panels where wire routing is limited by available space. Rated 10kAIC at 240 VAC, the TBFP2200-2T is intended for use in compatible residential electrical equipment requiring a 200 amp main breaker. Built with durability in mind, it is designed to provide dependable service for years when installed in the proper application.

Key Features and Benefits

• Part Number: TBFP2200-2T
• Current Rating: 200 Amp current rating
• 2-Pole Configuration: 2-pole configuration
• Thermal Magnetic Trip Mechanism: Thermal magnetic trip mechanism
• Main Residential Plug-In Breaker: Main residential plug-in molded case circuit breaker
• Off-Set Lugs: Off-set lugs allow perpendicular wire entry
• Interrupting Rating: 10kAIC interrupting rating at 240 VAC
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible equipment
• Built to Last: Built to last in residential electrical applications


Technical Specifications

• Part Number: TBFP2200-2T

• Type: TBFP

• Breaker Style: Main Residential Plug-In

• Construction: Molded Case

• Trip Type: Thermal Magnetic

• Poles: 2

• Amperage: 200 Amps

• Voltage: 120/240 VAC

• Interrupting Rating: 10kAIC @ 240 VAC

• Dimensions:
  • Height: 7.5 in.
  • Width: 3.0 in.
  • Depth: 2.56 in.

Material Compliance and Certifications

• Electrical Ratings: This molded case circuit breaker carries a 120/240 VAC voltage rating with a 10kAIC interrupting capacity at 240 VAC.
• Compatibility: Always verify compatibility with your panel or load center, along with all applicable electrical codes and manufacturer specifications, before installation.
• Installation: Installation should be completed by a qualified electrician.


Where It Works Best

• The TBFP2200-2T is intended for residential electrical systems that require a compatible 200 amp, 2-pole TBFP main plug-in circuit breaker. It is commonly used when replacing an existing breaker with the same electrical ratings and physical configuration. The off-set lug design also makes it a practical choice where conductors need to enter the breaker from a perpendicular direction.
