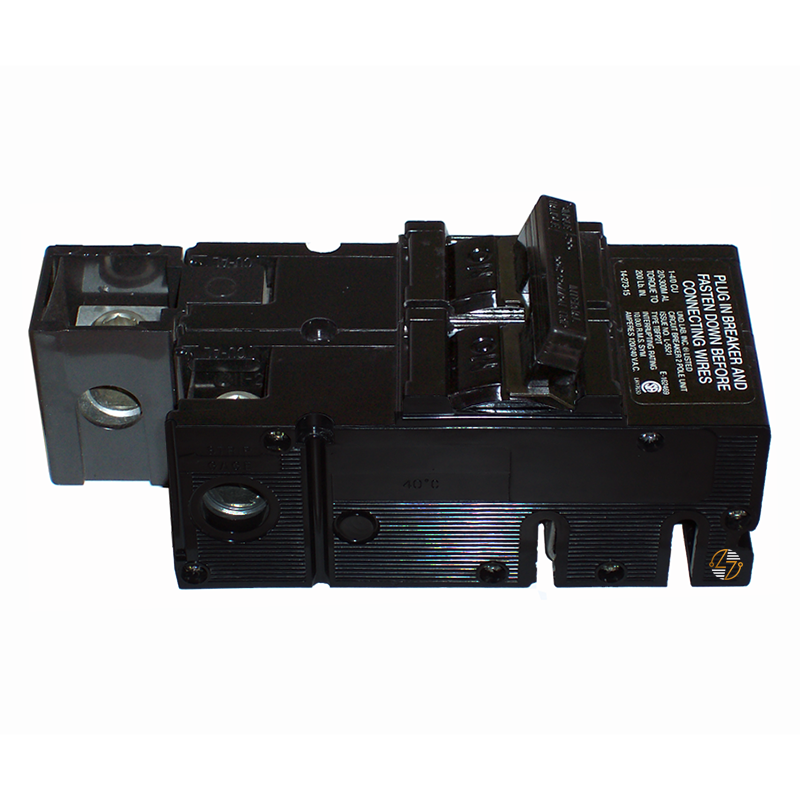

TBFP2150-2T - 150 Amp Circuit Breaker

TBFP2150-2T - 150 Amp Circuit Breaker

The TBFP2150-2T is a 150 Amp, 2-pole thermal magnetic circuit breaker designed for your residential electrical systems that use a TBFP plug-in main breaker. Rated for 120/240 Volts AC with a 10kAIC interrupting capacity, it provides overcurrent and short-circuit protection while matching the electrical ratings and physical configuration required for compatible panels.

One feature that sets this breaker apart is its off-set lug design, which allows conductors to enter perpendicular to the length of the breaker. This layout can simplify installation in panels designed for this style of connection and helps you to maintain the original wiring arrangement. Built with a molded case housing and a thermal magnetic trip unit, the TBFP2150-2T is made for everyday service in residential applications. When your replacing an existing breaker, matching the original type, amp rating, voltage rating, and mounting style is essential, and this model is intended to provide that form, fit, and functional compatibility.

Key Features and Benefits

• 150 Amp Current Rating: 150 Amp current rating
• Two-Pole Design: Two-pole design
• Thermal Magnetic Trip Mechanism: Thermal magnetic trip mechanism
• Plug-In TBFP Configuration: Plug-in TBFP configuration
• Molded Case Construction: Molded case construction built for long service life
• Off-Set Lugs: Off-set lugs allow wire entry perpendicular to the breaker body
• Interrupting Rating: Rated 10kAIC at 120/240VAC
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible equipment


Technical Specifications

• Part Number: TBFP2150-2T

• Type: TBFP

• Product Type: Thermal Magnetic Molded Case Circuit Breaker

• Application: Main Residential Plug-In

• Poles: 2

• Amperage: 150 Amps

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kAIC @ 120/240VAC

• Lug Style: Off-Set Lugs

• Dimensions:
  • Height: 7.5 in.
  • Width: 3.0 in.
  • Depth: 2.56 in.

Material Compliance and Certifications

• Construction: Molded case circuit breaker
• Protection: Thermal magnetic protection
• Electrical Rating: Rated 10kAIC at 120/240VAC
• Installation: Install only in equipment designed for this breaker type and in accordance with applicable electrical codes and manufacturer requirements.


Where It Works Best

• The TBFP2150-2T is commonly used as a main residential plug-in breaker in compatible load centers and panelboards. It is a practical choice when replacing a breaker with the same electrical ratings and TBFP configuration. Because it uses off-set lugs, it also works well in panels where conductors are intended to enter at a right angle to the breaker body.
