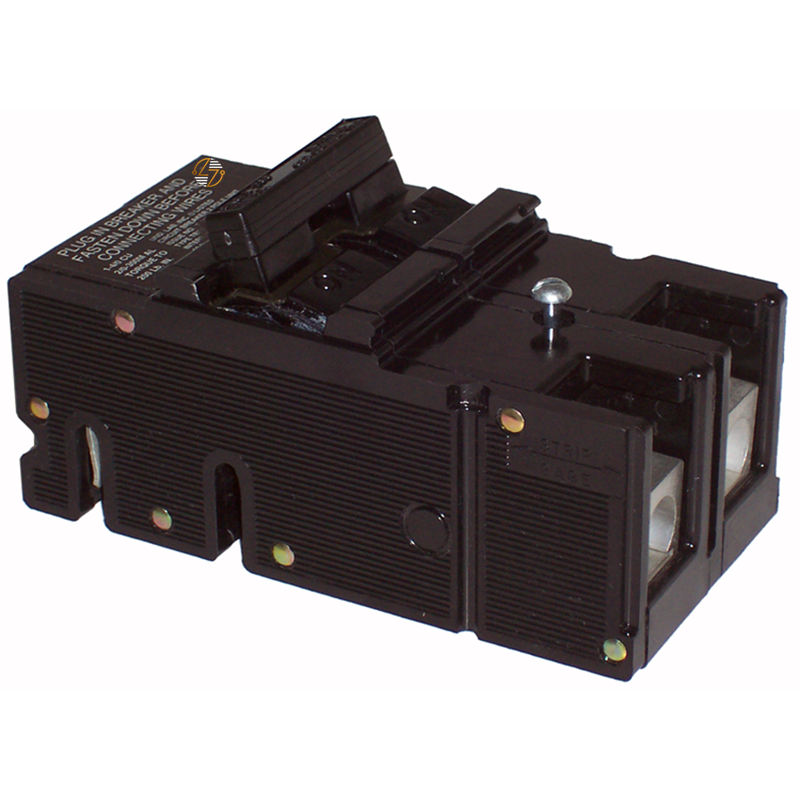

TBFP200-2 - 200 Amp Circuit Breaker

TBFP200-2 - 200 Amp Circuit Breaker

The TBFP‑2 200 Amp circuit breaker is a heavy-duty yet compact protector designed to keep your electrical systems secure—whether you’re managing a home panel, a commercial setup, or light industrial applications. With dual poles and a high-capacity rating, this circuit breaker steps in to protect against overloads and short circuits, ensuring peace of mind and continuous operation.

Key Features and Benefits

• High-Capacity Protection (200 A): Delivers dependable defense against power surges, overloads, and electrical faults.
• Universal Voltage Compatibility: Supports 120/240 VAC with a 10 kA Interrupting Capacity—great for a wide range of installations.
• Thermal‑Magnetic Trip Mechanism: Combines time-delay and magnetic features for accurate, reliable trip response under varied conditions.
• Tough TBFP Frame: Built for long-term performance even in environments that demand higher durability.
• Compact Design: Measures just 3″ × 6″ × 2.56″ and weighs 4 lbs—ideal for tight panel spaces.

Technical Specifications

• Poles: 2

• Rated Current: 200 Amperes

• Voltage Rating (Interrupting Capacity): 10 kA @ 120/240 VAC

• Frame Type: TBFP

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.00 inches
  • Depth: 2.56 inches
• Weight: 4 lbs


Material Compliance and Certifications

• Engineered using premium-grade materials, the TBFP200‑2 meets rigorous industry standards for safety and performance. It’s built to comply with key certifications—giving you confidence in its reliability and adherence to code requirements.


Suitability

• Residential: Main service panels, sub‑panels, electric ranges, central AC units

• Commercial: Small business HVAC systems, lighting circuits, backup power loads

• Light Industrial: Workshop machinery, equipment panels, motor circuits
