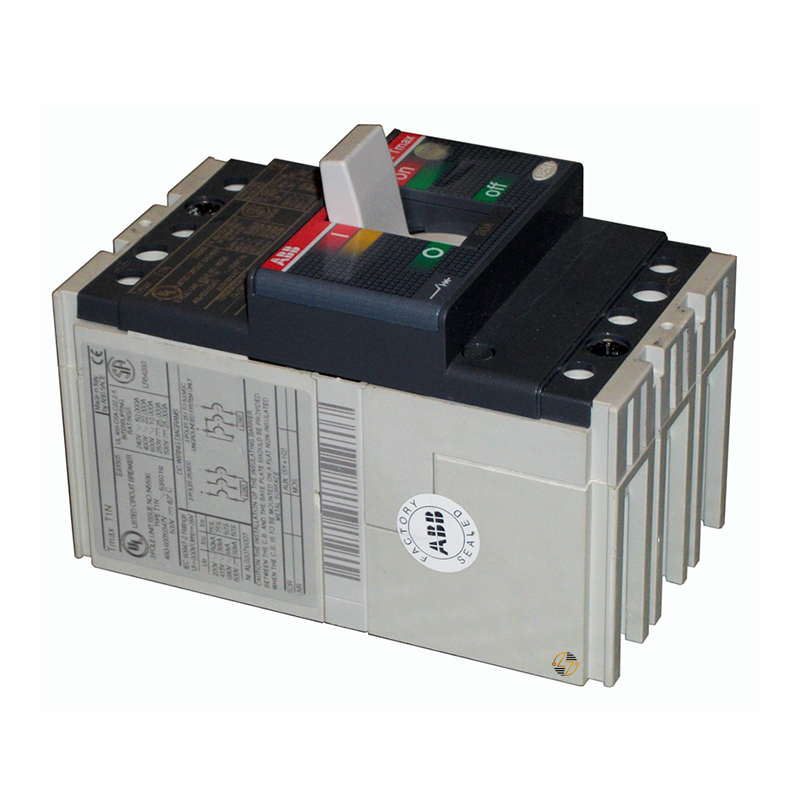

The ABB T1N030TL is a 3-pole, 30 Amp molded case circuit breaker from the SACE Tmax T1N series. It uses a thermal magnetic trip unit to protect your electrical systems from overloads and short circuits. This model is rated for 480-600Y/347VAC, 50/60Hz, and can also be used on 500VDC systems where the published ratings apply. With its cable-in/cable-out connection design and HACR classification, the T1N030TL is found in a variety of commercial and industrial applications. It's often installed in switchboards, panelboards, motor control equipment, and HVAC systems that require a breaker with these electrical ratings. When replacing an existing unit, matching the frame, amp rating, interrupting capacity, and voltage ratings is important for proper compatibility. ABB's SACE Tmax breakers have been used in power distribution systems for many years. The T1N030TL is built for everyday service and is intended to provide the same form, fit, and function as other breakers with the same specifications.

Key Features and Benefits

• ABB SACE Tmax T1N Molded Case Circuit Breaker: Part of the ABB SACE Tmax T1N series for commercial and industrial electrical protection.
• 30 Amp Current Rating: Rated for 30 amps to meet applications requiring this electrical capacity.
• Three-Pole Design: Configured with three poles for use in three-phase electrical systems.
• Thermal Magnetic Trip Unit: Protects electrical systems from overloads and short circuits using thermal magnetic trip technology.
• Cable-In/Cable-Out Terminals: Designed with cable-in/cable-out terminal connections for compatible installations.
• HACR Type: Classified as HACR Type for applicable HVAC equipment installations.
• Rated for 480-600Y/347VAC, 50/60Hz: Suitable for AC systems within these published ratings.
• 500VDC Rating: Can also be used on 500VDC systems where the published ratings apply.
• Designed for Form, Fit, and Function Replacement: Intended to provide the same form, fit, and function as other breakers with the same specifications.
• Built to Last: Built for everyday service in power distribution systems.

Technical Specifications

• Manufacturer: ABB

• Part Number: T1N030TL

• Series: SACE Tmax

• Frame: T1N

• Type: Thermal Magnetic Molded Case Circuit Breaker

• Poles: 3

• Amperage: 30A

• Frequency: 50/60Hz

• Voltage: 480-600Y/347VAC

• DC Voltage: 500VDC

• A.I.C. Rating: 22kA @ 480VAC

• Interrupting Rating:
  • 50kA @ 240VAC
  • 22kA @ 480VAC
  • 10kA @ 600VAC
  • 25kA @ 250VDC
  • 25kA @ 500VDC
• Terminal Style: Cable-In/Cable-Out

• Dimensions:
  • Height: 5.18 in.
  • Width: 3.00 in.
  • Depth: 3.25 in.

Material Compliance and Certifications

• Manufactured by ABB: Manufactured by ABB as part of the SACE Tmax T1N series.
• HACR Type: Classified as HACR Type.
• Rated for 50/60Hz AC Applications: Designed for use on 50/60Hz AC systems.
• 500VDC Rated: Rated for use on systems up to 500VDC within published specifications.


Where It Works Best

• The T1N030TL is commonly used in commercial buildings, manufacturing facilities, HVAC equipment, distribution panels, switchboards, and other three-phase electrical systems that require a 30-amp, 3-pole molded-case circuit breaker. It is intended for installations where the existing equipment calls for the same frame type, electrical ratings, and terminal configuration.
