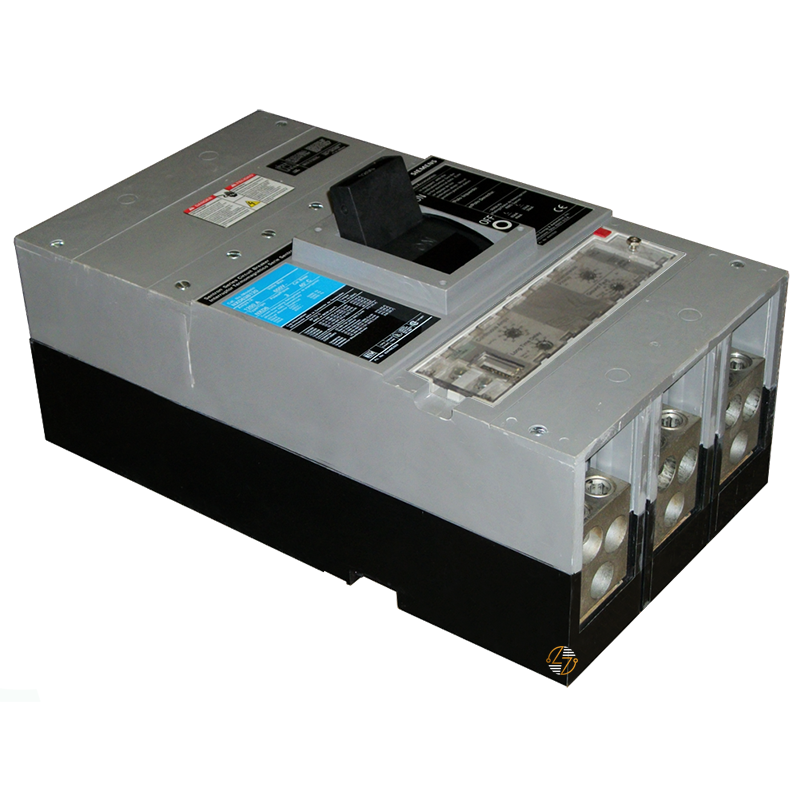

SND69800ANT - 800Amp Circuit Breaker

SND69800ANT - 800Amp Circuit Breaker

When you're maintaining an existing electrical distribution system, finding the right circuit breaker means paying close attention to the details. The Siemens SND69800ANT molded case circuit breaker is an 800 Amp, 3-pole, 600V breaker from the Siemens SENTRON family, designed for applications that specify an ND-frame breaker with electronic trip protection. Equipped with Siemens Sensitrip LSI functions, it provides long-time, short-time, and instantaneous protection characteristics for compatible electrical systems. Its interrupting ratings are 25 kA at 600V AC and 50 kA at 480V AC, so verify the voltage rating when selecting the correct replacement.

Key Features and Benefits

• 800 Amp Current Rating: Designed for electrical systems that specify an 800A molded case circuit breaker.
• 3-Pole Configuration: Provides three-pole circuit protection for compatible electrical distribution applications.
• 600V AC Voltage Rating: Suitable for equipment operating within the breaker's specified voltage rating.
• Electronic Trip Unit (ETU): Incorporates electronic trip protection for applications requiring this breaker configuration.
• LSI Protection Functions: Features long-time, short-time, and instantaneous trip functions for specified overcurrent protection requirements.
• ND-Frame Construction: Supports form-and-fit matching in compatible Siemens ND-frame installations.
• Line and Load Lugs Included: Features TA4N8500 lugs on both sides for compatible conductor connections.

Technical Specifications

• Manufacturer: Siemens

• Product Family: SENTRON

• Catalog Number: SND69800ANT

• Manufacturer Part Number (MFN): SND69800ANT

• Siemens Article Number: US2

• Product Type: Molded Case Circuit Breaker (MCCB)

• Frame Type: ND Frame

• Breaking Capacity Classification: Standard Breaking Capacity

• Rated Current: 800 Amps

• Number of Poles: 3

• Rated Voltage: 600V AC

• Interrupting Rating at 600V AC: 25kAIC

• Interrupting Rating at 480V AC: 50kAIC

• Trip Unit Type: Electronic Trip Unit (ETU)

• Trip Functions: LSI – Long-Time, Short-Time, Instantaneous

• Trip Technology: Siemens Sensitrip

• Standard Calibration Temperature: 40°C (104°F)

• Line-Side Lugs: TA4N8500

• Load-Side Lugs: TA4N8500

• Conductor Size Range: 250–500 kcmil

• Conductor Material: Copper or Aluminum (Cu/Al)

• Width: 9 inches

• Height: 16 inches

• Depth: 6 inches

• Net Weight: 61.5 lbs

• UPC: 783643251816

• Country of Origin: Mexico


Material Compliance and Certifications

The Siemens SND69800ANT meets the following electrical standards and environmental compliance requirements.

• UL 489: Siemens identifies this product as meeting the UL 489 standard for molded case circuit breakers.
• IEC 60947-2: Siemens identifies it as meeting the IEC 60947-2 standard for low-voltage circuit breakers.
• RoHS Compliance: Manufacturer documentation identifies compliance with RoHS substance restrictions since March 30, 2009.

Where It Works Best

The Siemens SND69800ANT 800A circuit breaker is intended for compatible electrical systems that require its specific ND-frame configuration, electronic trip functions, and electrical ratings. Potential applications include:

• Existing Siemens ND-Frame Installations

• Commercial Electrical Distribution

• Industrial Electrical Distribution

• Three-Phase Electrical Systems

• Compatible Power Distribution Panels

• Industrial Facility Maintenance

• Commercial Building Electrical Systems

• Existing SENTRON Breaker Assemblies

• Electrical Equipment Maintenance

• Compatible 480V AC Distribution Systems

• Compatible 600V AC Distribution Systems

• Direct SND69800ANT Circuit Breaker Replacement
