SND69800ANGT - 800Amp Circuit Breaker

SND69800ANGT - 800Amp Circuit Breaker

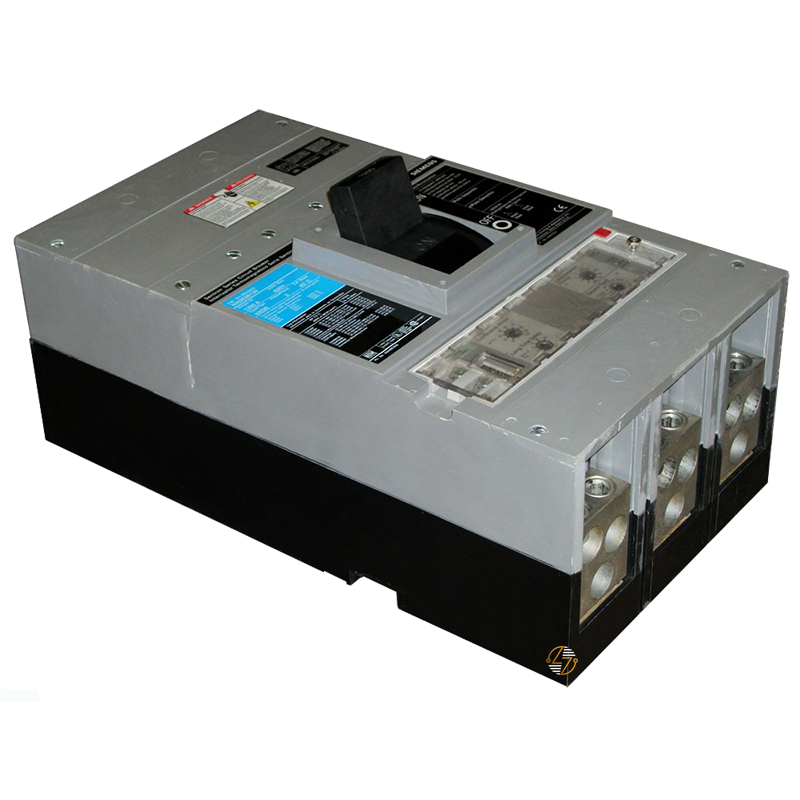

Elevate your electrical system's performance with the Siemens SND69800ANGT Sentron Molded Case Circuit Breaker, a pinnacle of reliability and advanced technology for high-demand applications. This robust circuit breaker is engineered to provide superior protection and efficiency in managing electrical loads. Ideal for both commercial and industrial settings, the SND69800ANGT ensures your operations run smoothly and safely.

Key Features and Benefits:

• Advanced Electronic Trip Unit (ETU): The SND69800ANGT features an Electronic Trip Unit (ETU) that offers precision in overcurrent protection, enhancing system reliability and reducing the risk of electrical faults.
• Standard Breaking Capacity: This circuit breaker is designed with a standard breaking capacity, capable of handling 25kAIC at 600V and 50kAIC at 480V, making it suitable for various high-power applications.
• LSIG (Long-Time, Short-Time, Instantaneous, and Ground Fault) Protection: Equipped with LSIG functionalities, it provides comprehensive protection against different types of faults, ensuring the safety and integrity of your electrical system.
• Line and Load Side Lugs: Comes with pre-installed line and load side lugs (TA4N8500) that support wire ranges from 250 to 500 KCM (CU/AL), simplifying installation and enhancing connection stability.
• Rugged Design: With dimensions of 9 x 16 x 6 inches, this breaker is compact yet sturdy, designed to withstand the demands of rigorous environments.

Technical Specifications:

• Current Rating: 800 Amps
• Voltage Rating: 600V (25kAIC) / 480V (50kAIC)
• Poles: 3
• Frame Type: ND
• Operating Temperature: Standard 40å¡C

Material Compliance and Certifications:

• UL 489 / IEC 60947-2 Standards: Meets stringent international standards for circuit breakers, ensuring high safety and performance.
• RoHS Compliance: Free from hazardous substances, in compliance with the RoHS directive since March 30, 2009, promoting a safer environment.

Suitability:

• The Siemens SND69800ANGT circuit breaker is an excellent choice for a variety of applications including commercial buildings, industrial plants, and data centers where reliable circuit protection is critical. Its advanced ETU, combined with LSIG capabilities, makes it particularly well-suited for installations requiring precise overcurrent and ground fault protection.

Ensure your electrical systems are protected by the trusted performance of the Siemens SND69800ANGT circuit breaker, designed to deliver durability and precision in the most demanding environments.
