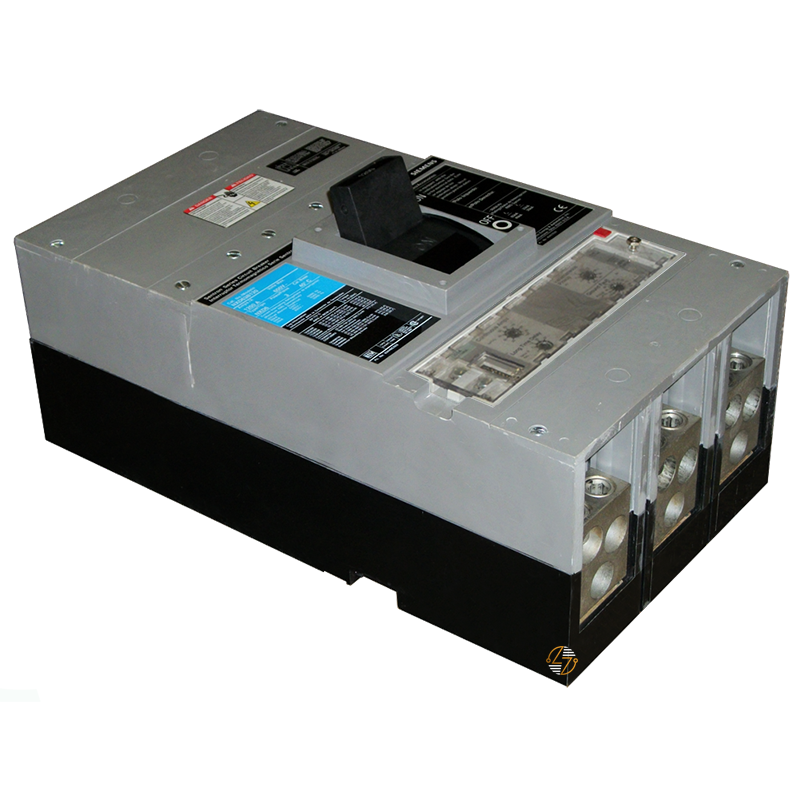

The Siemens SND69120ANT is a SENTRON molded case circuit breaker for your compatible commercial and industrial electrical distribution equipment that requires a 1200A, 3-pole, 600V breaker with LSI electronic trip functions. Built on the Siemens ND frame, this standard 40°C breaker uses an electronic trip unit (ETU) with Sensitrip functions for long-time, short-time, and instantaneous protection. For maintenance teams working with existing electrical equipment, the catalog number, frame size, amperage, voltage, trip configuration, lug arrangement, and physical dimensions provide the information needed to evaluate form, fit, and functional compatibility.

Key Features and Benefits

• 1200A, 3-pole configuration: Designed for compatible three-phase electrical distribution equipment requiring a 1200-amp molded case circuit breaker.
• 600V rating: Suitable for applications designed around the breaker's specified voltage and interrupting ratings.
• LSI electronic trip functions: Provides long-time, short-time, and instantaneous protection functions.
• Sensitrip functions: Uses Siemens Sensitrip electronic trip technology for the specified LSI protection functions.
• ND frame construction: Maintains the physical frame configuration needed for compatible equipment designed around the Siemens ND frame.
• TA4N8500 lugs: Line- and load-side lugs support 250–500 kcmil copper or aluminum conductors.

Technical Specifications

• Manufacturer: Siemens

• Catalog Number / MFN: SND69120ANT

• Article Number: US2:SND69120ANT

• Product Family: SENTRON

• Product Type: Molded Case Circuit Breaker

• Frame: ND

• Trip Unit: Electronic Trip Unit (ETU)

• Trip Functions: LSI — Long-Time, Short-Time, and Instantaneous

• Trip Technology: Sensitrip functions

• Number of Poles: 3

• Ampere Rating: 1200A

• Voltage Rating: 600V

• Interrupting Rating at 600V: 25 kAIC

• Interrupting Rating at 480V: 50 kAIC

• Temperature Classification: Standard 40°C breaker

• Line- and Load-Side Lugs: TA4N8500

• Conductor Range: 250–500 kcmil Cu/Al

• Dimensions (W × H × D): 9 × 16 × 6 in.

• Net Weight: 61.5 lb.

• UPC: 783643251830

• Commodity Code: 8536200020

• ECCN: EAR99

• AL: N

• Country of Origin: Mexico

• Dangerous Goods Classification: No


Material Compliance and Certifications

The Siemens SND69120ANT circuit breaker meets UL 489 and IEC 60947-2 standards according to the manufacturer's specifications. Siemens also identifies compliance with RoHS substance restrictions since March 30, 2009. Manufacturer documentation includes information related to REACH Article 33, but it does not list a SCIP number for this product.

Where It Works Best

The Siemens SND69120ANT 1200A circuit breaker is best suited to compatible commercial and industrial electrical distribution systems designed around the Siemens ND frame, 3-pole configuration, 1200A rating, 600V rating, LSI electronic trip functions, and TA4N8500 lug arrangement. It is especially relevant for maintenance, repair, and form, fit, and functional replacement applications where the existing equipment calls for this catalog number or the same specified electrical and physical characteristics.
