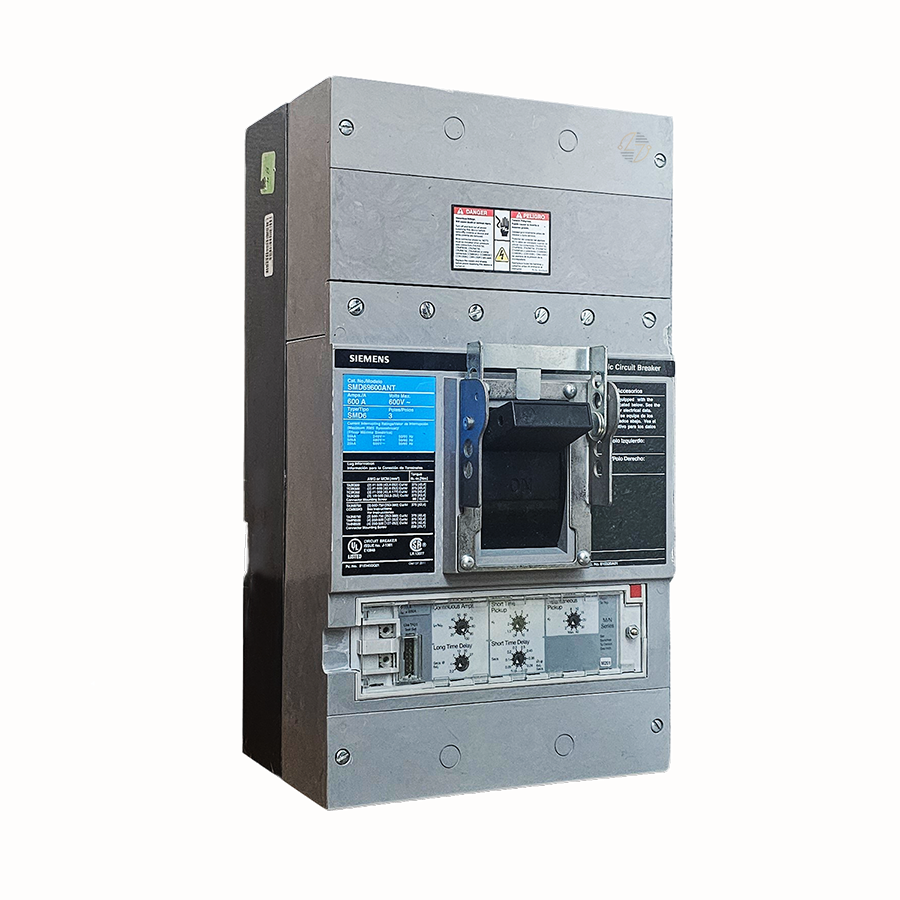

SMD69800ANGT - 800Amp Circuit Breaker

SMD69800ANGT - 800Amp Circuit Breaker

The Siemens SMD69800ANGT is a high-capacity low voltage SENTRON molded case circuit breaker, engineered to deliver exceptional performance and reliability in demanding electrical applications. This circuit breaker features an advanced electronic trip unit (ETU) and meets the rigorous UL 489 and IEC 60947-2 standards, ensuring optimal safety and efficiency. With a robust 800A current rating and a 3-pole configuration, the SMD69800ANGT provides superior protection and operational efficiency. Its compact design and versatile wire range make it a flexible solution for a variety of electrical distribution systems, ensuring consistent and dependable operation.

Key Features and Benefits:

• Advanced Electronic Trip Unit (ETU): Ensures precise and reliable tripping characteristics, enhancing the protection and efficiency of your electrical systems.
• High Interrupting Capacity: Rated at 25kAIC at 600V and 50kAIC at 480V, this breaker effectively handles high fault currents, safeguarding your equipment and systems.
• Durable MD Frame: Standard 40å¡C breaker MD frame ensures long-lasting durability and reliable performance in diverse environments.
• Versatile Connectivity: Equipped with line and load side lugs (TA3K500), compatible with a wide wire range of 1/0AWG - 500KCM (CU/AL).
• Compact Design: Dimensions of 9 x 16 x 6 inches allow for easy integration into various electrical panels and enclosures.
• Sensitrip Functions: Provides advanced monitoring and control capabilities, ensuring optimal performance and safety in electrical circuits.

Technical Specifications:

• Type: Low Voltage SENTRON Molded Case Circuit Breaker
• Current Rating: 800A
• Poles: 3
• Interrupting Capacity: 25kAIC at 600V, 50kAIC at 480V
• Frame: MD Frame, Standard 40å¡C
• Wire Range: 1/0AWG - 500KCM (CU/AL)
• Dimensions: 9 x 16 x 6 inches
• Weight: 61.5 lbs

Material Compliance and Certifications:

• Standards Compliance: Meets UL 489 and IEC 60947-2 standards for circuit breakers.
• RoHS Compliance: Conforms to the Restriction of Hazardous Substances (RoHS) directive since March 30, 2009.
• Country of Origin: Mexico

Suitability:

• The Siemens SMD69800ANGT is ideal for a wide range of applications, including industrial facilities, commercial buildings, and other environments requiring robust electrical protection. Its high interrupting capacity and advanced electronic trip unit make it particularly suitable for systems exposed to high fault currents, ensuring continuous and dependable operation.
