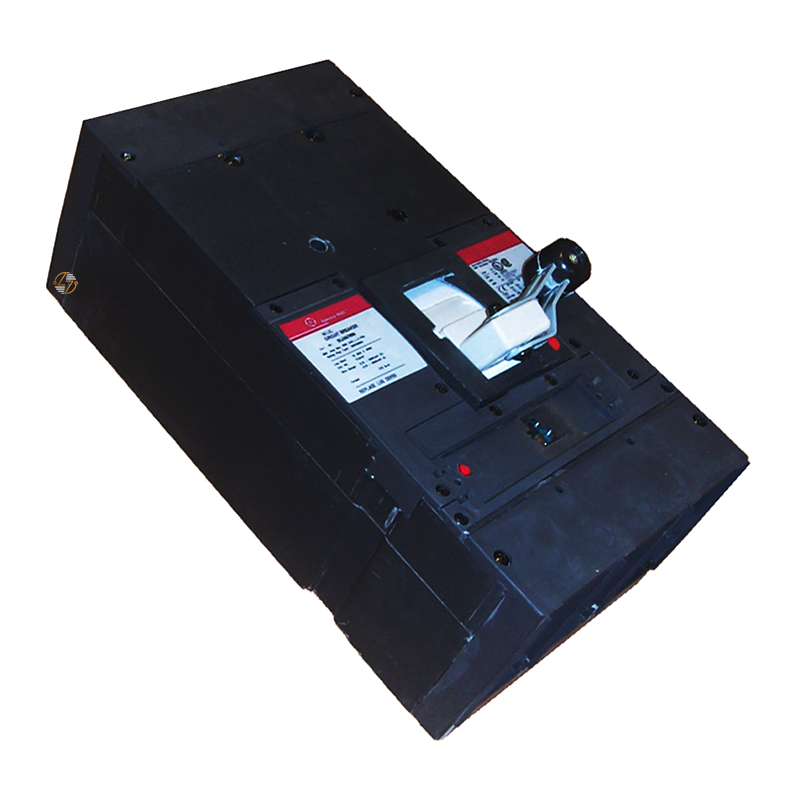

SKPA36AT1200 - 1200Amp Max. *Frame Only*

SKPA36AT1200 - 1200Amp Max. *Frame Only*

The SKPA36AT1200 is a 3-pole, 1200-amp industrial molded-case circuit breaker frame from the SK1200 line, designed for use in your electrical distribution systems that require high-current overcurrent protection. This Type SKPA breaker features an electronic trip system and current-limiting construction to help you reduce the effects of fault currents while supporting dependable circuit protection within its rated application. Rated for 65 kA at 600 VAC, 100 kA at 480 VAC, and 200 kA at 240 VAC, it is well-suited for demanding commercial and industrial power distribution environments. This listing is for the frame only, making it an ideal form-fit-and-function replacement when maintaining or servicing compatible SK1200 installations. Built to last, the SKPA36AT1200 is intended to provide reliable service when properly installed and maintained in accordance with applicable electrical standards.

Key Features and Benefits

• Part Number: SKPA36AT1200
• SK1200 Line: Molded case circuit breaker frame.
• Frame Only Configuration: Frame only configuration.
• 1200 Amp Continuous Current Rating: 1200 amp continuous current rating.
• 3-Pole Design: 3-pole design for three-phase electrical systems.
• Electronic Trip: Electronic trip for accurate overcurrent protection.
• Current-Limiting Construction: Current-limiting construction to help reduce available fault energy.
• Interrupting Ratings:
  • 65kA @ 600VAC
  • 100kA @ 480VAC
  • 200kA @ 240VAC
• Replacement Compatibility: Designed as a form, fit, and functional replacement for compatible SK1200 installations.
• Built to Last: Built to last for long-term service in commercial and industrial applications.

Technical Specifications

• Part Number: SKPA36AT1200

• Type: SKPA

• Product Line: SK1200

• Product Type: Industrial Molded Case Circuit Breaker Frame

• Configuration: Frame Only

• Trip Unit: Electronic Trip

• Poles: 3

• Amperes: 1200A

• A.I.C. Rating: 65kA @ 600VAC; 100kA @ 480VAC; 200kA @ 240VAC

• Current Limiting: Yes

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Commercial and Industrial Use: Manufactured for use in commercial and industrial electrical distribution systems.
• Application Requirements: Designed to meet the electrical ratings and application requirements associated with the SK1200 product family when installed in compatible equipment.
• Installation Requirements: Installation and application should comply with all applicable local electrical codes, manufacturer recommendations, and project-specific requirements.

Where It Works Best

• The SKPA36AT1200 is well-suited for commercial, institutional, and industrial electrical distribution systems where a compatible SK1200-series molded-case circuit breaker frame is required. Typical applications include switchboards, panelboards, motor control equipment, industrial manufacturing facilities, processing plants, commercial buildings, and other power distribution systems requiring a 1200-amp, 3-pole, current-limiting electronic trip circuit breaker frame for maintenance, repair, or replacement of existing compatible equipment.
