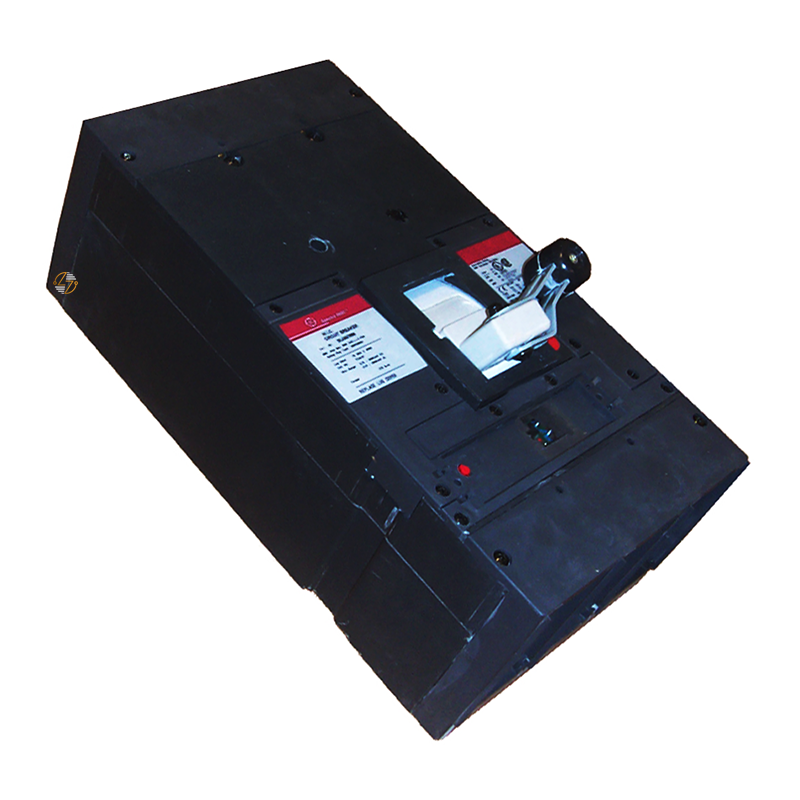

SKPA36AT0800 - 800Amp Max. *Frame Only*

SKPA36AT0800 - 800Amp Max. *Frame Only*

The SKPA36AT0800 is a 3-pole, 800-amp industrial molded case circuit breaker frame from the SK1200 line, designed for use in your electrical distribution systems that require a current-limiting circuit breaker with an electronic trip configuration. This unit is frame-only, making it a practical, form-fit, and functional replacement for compatible SKPA series installations where the existing configuration requires only the breaker frame. Built to last, the SKPA36AT0800 is engineered for your demanding commercial and industrial environments while providing the interrupting capacities required for highly available fault-current applications. With interrupting ratings of 65kA at 600VAC, 100kA at 480VAC, and 200kA at 240VAC, it is well-suited for facilities where dependable overcurrent protection is essential to maintaining electrical system integrity.

Key Features and Benefits

• 800-Amp Continuous Current Rating: 800-amp continuous current rating for high-capacity power distribution systems.
• 3-Pole Configuration: 3-pole configuration for three-phase electrical applications.
• Current-Limiting Design: Current-limiting industrial molded case circuit breaker design.
• Electronic Trip Configuration: Electronic trip configuration designed for compatible SK1200 series applications.
• High Interrupting Capacity:
  • 65kA at 600VAC
  • 100kA at 480VAC
  • 200kA at 240VAC
• Frame-Only Configuration: Frame-only configuration for applications requiring the replacement of the breaker frame.
• Replacement Compatibility: Designed for form, fit, and functional compatibility with SKPA series equipment.
• Built to Last: Built to last for long-term use in industrial electrical systems.


Technical Specifications

• Part Number: SKPA36AT0800

• Type: SKPA

• Product Line: SK1200

• Breaker Style: Industrial Molded Case Circuit Breaker

• Configuration: Frame Only

• Trip Type: Electronic Trip

• Current Limiting: Yes

• Poles: 3

• Amperage: 800A

• Interrupting Rating: 65kA @ 600VAC; 100kA @ 480VAC; 200kA @ 240VAC

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Industry Standards: The SKPA36AT0800 is manufactured for use in commercial and industrial electrical distribution systems and is designed to meet the applicable industry standards associated with its original product series.
• Installation Requirements: Compatibility with project-specific code, installation, and certification requirements should always be verified before installation.


Where It Works Best

• The SKPA36AT0800 is well-suited for a variety of commercial and industrial electrical applications, including:
  • Manufacturing facilities
  • Industrial control equipment
  • Power distribution switchboards
  • Motor control centers
  • Commercial buildings
  • Processing plants
  • Institutional facilities
  • Electrical distribution systems requiring an 800A, 3-pole molded case circuit breaker frame
  As a frame-only unit, this breaker is intended for installations where a compatible SKPA series frame is required, helping maintain the original equipment configuration without changing the existing system design. Its current-limiting construction and high interrupting ratings make it appropriate for electrical systems with elevated available fault current while supporting dependable overcurrent protection. This description is written to provide helpful, accurate product information in line with Google's guidance for high-quality shopping content and trustworthy product pages.
