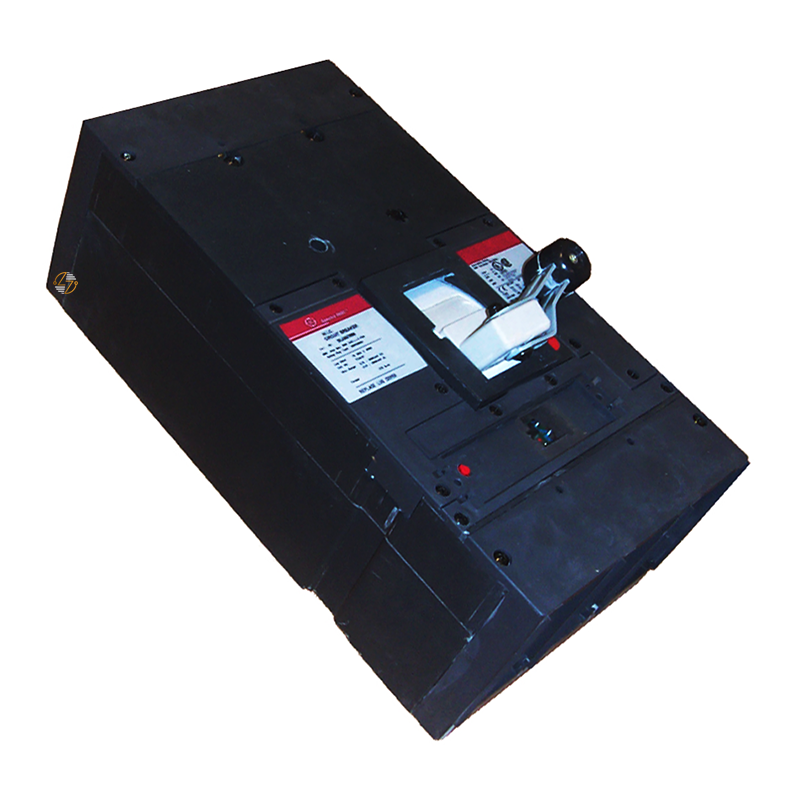

SKPA26AT1200 - 1200Amp Max. *Frame Only*

SKPA26AT1200 - 1200Amp Max. *Frame Only*

When you need a replacement frame for an existing SK1200 Line installation, the SKPA26AT1200 is designed to match the original equipment's form, fit, and function. This 2-pole, 1200 amp industrial molded case circuit breaker frame features an electronic trip design and current-limiting construction for use in commercial and industrial electrical distribution systems. With interrupting ratings of 100kA at 480VAC and 200kA at 240VAC, it is intended for applications where high fault current capacity is required. This listing is for the frame only and is suited for maintaining compatible SK1200 systems without changing the original equipment configuration. Built to last, it provides a dependable replacement for facilities that continue to operate legacy electrical distribution equipment.

Key Features and Benefits

• Part Number: SKPA26AT1200
• SK1200 Line: Industrial molded case circuit breaker.
• Frame Only Configuration: Frame only configuration.
• Type: SKPA.
• 2-Pole Design: 2-pole design.
• 1200 Amp Rating: 1200 amp rating.
• Electronic Trip: Electronic trip.
• Current-Limiting Construction: Current-limiting construction.
• Interrupting Capacity:
  • 100kA at 480VAC
  • 200kA at 240VAC
• Replacement Compatibility: Designed as a form, fit, and functional replacement for compatible equipment.
• Built for Long Service Life: Built for long service life.


Technical Specifications

• Part Number: SKPA26AT1200

• Type: SKPA

• Product Line: SK1200

• Configuration: Frame Only

• Poles: 2

• Amperes: 1200A

• Trip Type: Electronic Trip

• Current Limiting: Yes

• A.I.C. Rating: 100kA @ 480VAC

• A.I.C. Rating: 200kA @ 240VAC

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Industrial Applications: Manufactured for industrial power distribution applications.
• Published Electrical Ratings: Designed to meet the published electrical ratings of the SK1200 series when properly installed.
• Installation Requirements: Compatibility should always be verified with the existing electrical system and applicable codes before installation.


Where It Works Best

• The SKPA26AT1200 is commonly used in commercial buildings, manufacturing facilities, industrial plants, and other electrical distribution systems that utilize compatible SK1200 Line equipment. Because this unit is supplied as a frame only, it works well as a replacement for existing installations where maintaining the original equipment configuration is important.
