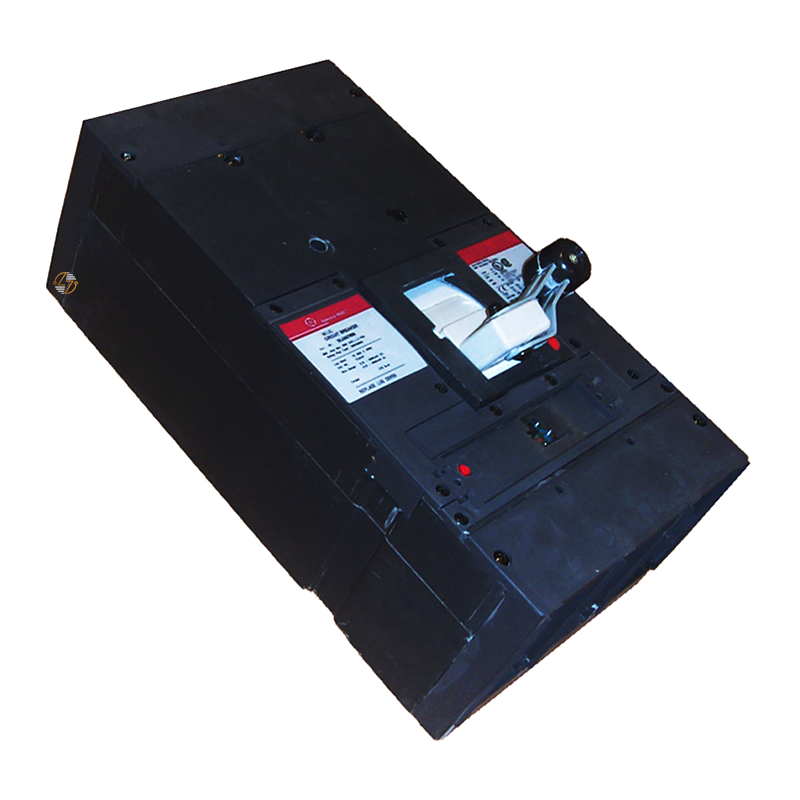

SKPA26AT0800 - 800Amp Max. *Frame Only*

SKPA26AT0800 - 800Amp Max. *Frame Only*

The SKPA26AT0800 is a 2-pole, 800-amp industrial molded case circuit breaker frame from the SK1200 line, designed for use in your commercial and industrial electrical distribution systems that require dependable overcurrent protection when paired with the appropriate electronic trip components. This frame-only configuration is intended as a form, fit, and functional replacement for compatible existing installations, making it well-suited for maintenance, repairs, and equipment restoration. Built with current-limiting capabilities and rated for 100kA at 480VAC and 200kA at 240VAC, the SKPA26AT0800 is engineered to help you withstand demanding fault conditions while supporting the continued operation of legacy electrical systems. Its durable construction is built to last, making it a practical choice for facilities seeking to maintain compatible equipment without altering existing system designs.

Key Features and Benefits

• Part Number: SKPA26AT0800
• SK1200 Line: Industrial molded case circuit breaker.
• Frame Only Configuration: Frame only configuration; electronic trip components are not included.
• 2-Pole Design: 2-pole design for compatible electrical distribution systems.
• 800-Amp Current Rating: 800-amp current rating.
• Current-Limiting Construction: Current-limiting construction to help reduce the effects of high fault currents.
• Interrupting Capacity: 100kA at 480VAC and 200kA at 240VAC.
• Replacement Compatibility: Designed as a form, fit, and functional replacement for compatible SK1200 installations.
• Built for Long Service Life: Built for long service life in commercial and industrial applications.


Technical Specifications

• Part Number: SKPA26AT0800

• Type: SKPA

• Product Line: SK1200

• Configuration: Frame Only

• Trip Unit: Electronic Trip (not included)

• Poles: 2

• Amperes: 800A

• Interrupting Rating: 100kA @ 480VAC; 200kA @ 240VAC

• Current Limiting: Yes

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Commercial and Industrial Use: Manufactured for use in commercial and industrial electrical distribution systems.
• Application Requirements: Designed to meet the electrical ratings and dimensional requirements of compatible SK1200 series applications.
• Installation Requirements: Customers should verify compatibility with their existing equipment and applicable local electrical codes before installation.


Where It Works Best

• The SKPA26AT0800 is well suited for industrial facilities, manufacturing plants, commercial buildings, processing operations, institutional campuses, and other locations that utilize compatible SK1200 series molded case circuit breakers. Its frame-only design makes it an excellent choice when replacing a compatible breaker frame while retaining the proper system configuration. It is particularly appropriate for maintenance projects, equipment repairs, and keeping legacy electrical distribution systems operating with compatible components.
