SKLA36AT1200 - 1200Amp Max. *Frame Only*

SKLA36AT1200 - 1200Amp Max. *Frame Only*

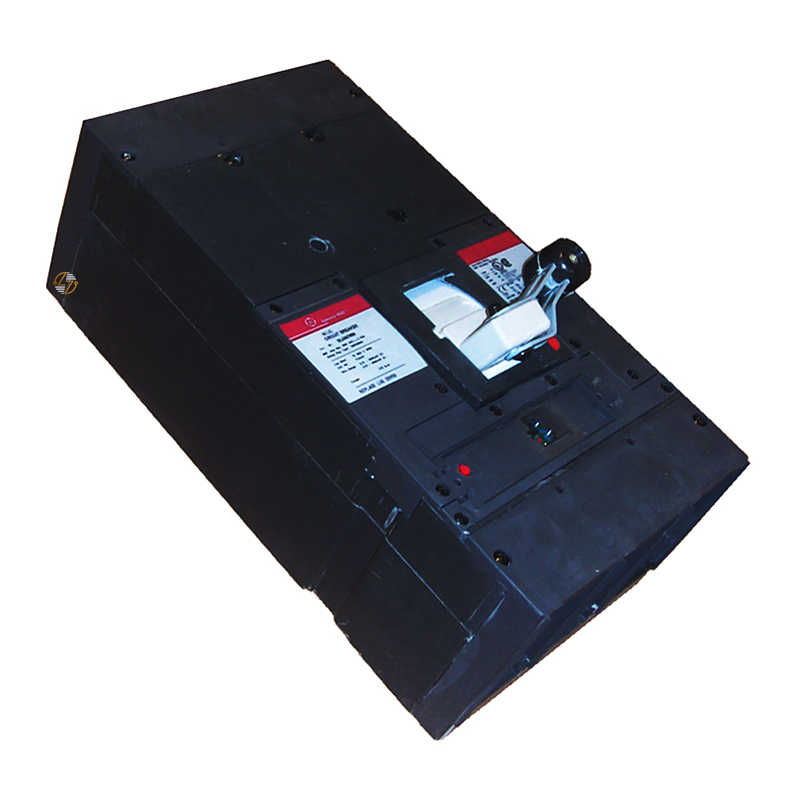

The SKLA36AT1200 is a 3-pole, 1200-amp industrial molded-case circuit breaker frame from the SK1200 line, designed for use in your demanding commercial and industrial electrical distribution systems. This Type SKLA breaker features a current-limiting design and is intended for applications requiring an electronic trip configuration. Rated for interrupting capacities of 42kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, it is built to help you protect electrical equipment from overloads and short circuits when paired with the appropriate internal components. This listing is for the frame only, making it suitable as a form-fit-and-function replacement in compatible existing SK1200 installations. Built to last, the SKLA36AT1200 helps you to maintain continuity in legacy electrical systems where compatibility and correct electrical ratings are essential.

Key Features and Benefits

• Type: SKLA industrial molded case circuit breaker frame.
• SK1200 Line Design: SK1200 line design with 1200 amp frame rating.
• 3-Pole Configuration: 3-pole configuration for three-phase power distribution.
• Electronic Trip: Designed for use with an electronic trip system.
• Current-Limiting Construction: Current-limiting construction to help reduce the effects of high fault currents.
• Interrupting Ratings:
  • 42kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Replacement Compatibility: Intended as a form, fit, and functional replacement in compatible SK1200 applications.
• Frame Only: Frame only; internal trip components are not included.
• Built to Last: Built to last for long-term service in industrial and commercial electrical systems.


Technical Specifications

• Part Number: SKLA36AT1200

• Type: SKLA

• Product Line: SK1200

• Product Category: Industrial Molded Case Circuit Breaker Frame

• Configuration: Frame Only

• Trip Type: Electronic Trip

• Poles: 3

• Amperes: 1200A

• Voltage / A.I.C. Rating: 42kA @ 600VAC; 65kA @ 480VAC; 100kA @ 240VAC

• Current Limiting: Yes

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Commercial and Industrial Installation: Designed for installation in compatible commercial and industrial electrical systems.
• Industry Standards: Manufactured to meet applicable industry standards for molded case circuit breakers within the SK1200 product family.
• Installation Requirements: Verify compatibility with the existing electrical system, required trip unit, and applicable local electrical codes before installation.


Where It Works Best

• The SKLA36AT1200 is well-suited for commercial and industrial facilities that rely on compatible SK1200 electrical distribution equipment. Typical applications include manufacturing plants, processing facilities, utility infrastructure, commercial buildings, institutional facilities, and other installations that require a 1200-amp, 3-pole molded-case circuit breaker frame. As a frame-only component, it is intended to maintain or restore existing systems where matching form, fit, and electrical ratings are critical to continued operation.
