SKLA36AT0800 - 800Amp Max. *Frame Only*

SKLA36AT0800 - 800Amp Max. *Frame Only*

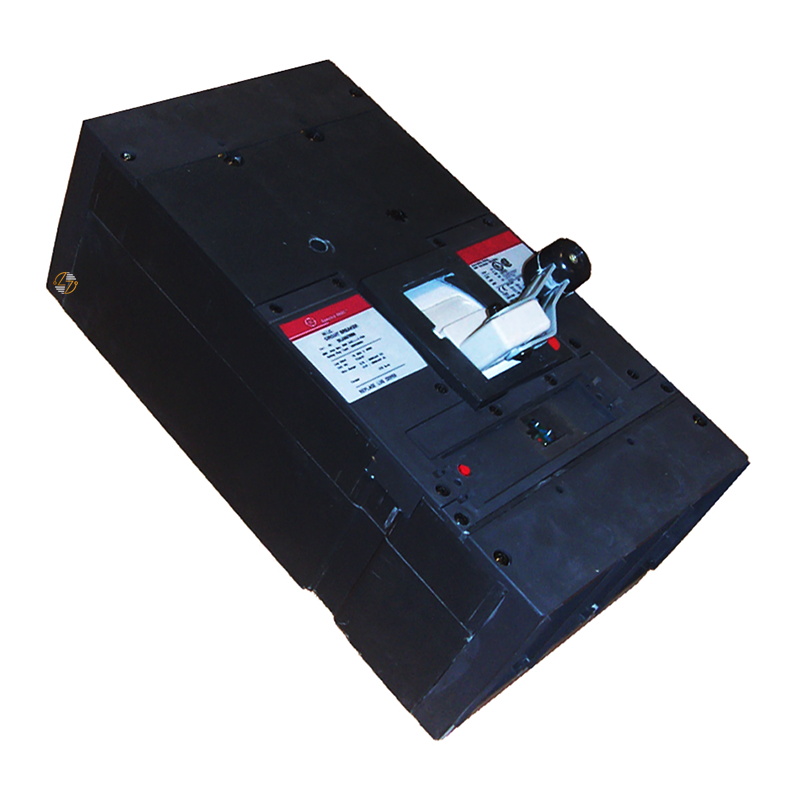

The SKLA36AT0800 is a 3-pole, 800-amp industrial molded-case circuit breaker frame from the SK1200 line, designed for use in your electrical distribution systems that require a current-limiting circuit breaker platform. This frame-only unit features the SKLA frame and is intended for applications that require compatibility with existing SK1200 series installations. Built with an electronic trip design, it is engineered for dependable operation in your demanding commercial and industrial environments while providing the form, fit, and function needed to maintain or service compatible legacy electrical systems. Manufactured to withstand the rigors of long-term service, the SKLA36AT0800 offers a practical solution for facilities seeking an 800-amp molded-case circuit breaker frame that meets original equipment specifications and interrupting ratings.

Key Features and Benefits

• 800-Amp Current Rating: 800-amp current rating for high-capacity power distribution applications.
• 3-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• SKLA Frame: SKLA frame compatible with SK1200 line installations.
• Frame-Only Configuration: Frame-only configuration for applications requiring a replacement breaker frame.
• Current-Limiting Design: Current-limiting molded case circuit breaker design.
• Electronic Trip Platform: Electronic trip platform for use with compatible trip components.
• Interrupting Ratings:
  • 42kA at 600VAC
  • 65kA at 480VAC
  • 100kA at 240VAC
• Built to Last: Built to last and intended to provide proper form, fit, and functional replacement in compatible systems.


Technical Specifications

• Part Number: SKLA36AT0800

• Type: SKLA

• Product Line: SK1200

• Product Configuration: Frame Only

• Circuit Breaker Type: Industrial Molded Case Circuit Breaker

• Trip Type: Electronic Trip

• Poles: 3

• Amperes: 800A

• A.I.C. Rating: 42kA @ 600VAC; 65kA @ 480VAC; 100kA @ 240VAC

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Industrial Applications: Manufactured for use in compatible industrial electrical distribution systems.
• Current-Limiting Construction: Current-limiting molded case circuit breaker construction.
• Original Equipment Ratings: Designed to meet applicable original equipment electrical ratings for compatible installations.
• Installation Requirements: Verify all application requirements, equipment compatibility, and local electrical code requirements before installation.


Where It Works Best

• The SKLA36AT0800 is well-suited for commercial and industrial facilities that use compatible SK1200-series electrical distribution equipment. It is commonly used in switchboards, panelboards, motor control systems, industrial manufacturing facilities, processing plants, and other high-capacity power distribution applications where maintaining compatibility with existing equipment is essential. As a frame-only replacement, it is intended for situations where the existing installation requires the correct SKLA frame to preserve proper form, fit, and functional operation within the original electrical system.
