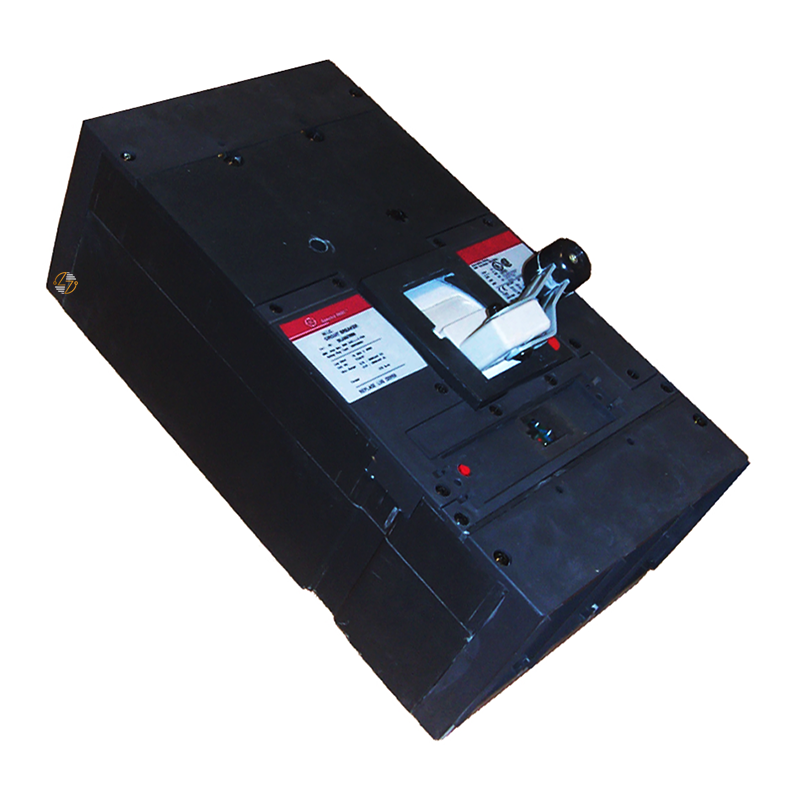

SKLA26AT1200 - 1200Amp Max. *Frame Only*

SKLA26AT1200 - 1200Amp Max. *Frame Only*

The SKLA26AT1200 is a 2-pole, 1200-amp industrial molded-case circuit breaker frame from the SK1200 line, designed for applications requiring a current-limiting breaker platform with an electronic trip configuration. This model is rated for 65 kA at 480 VAC and 100 kA at 240 VAC, making it suitable for electrical distribution systems that require high interrupting capacity. This unit is the frame only and is intended for applications requiring a compatible electronic trip assembly. Built for long service life, the SKLA26AT1200 provides the proper form, fit, and function for maintaining or replacing compatible equipment in existing power distribution systems. Its durable molded-case construction supports dependable operation in your commercial and industrial environments while allowing facilities to keep existing electrical infrastructure in service.

Key Features and Benefits

• SKLA26AT1200: Industrial molded case circuit breaker frame only.
• Product Line: Designed for the SK1200 product line.
• 2-Pole Configuration: 2-pole configuration.
• 1200 Amp Frame Rating: 1200 amp frame rating.
• Current-Limiting Design: Current-limiting design to help reduce the effects of high fault currents.
• Electronic Trip Compatibility: Compatible with electronic trip configurations.
• Interrupting Capacity: 65kA at 480VAC and 100kA at 240VAC.
• Replacement Compatibility: Built to provide proper form, fit, and functional replacement for compatible installations.
• Durable Construction: Durable molded case construction designed for long-term service.
• Maintenance Applications: Suitable for maintenance, repair, and replacement of existing electrical distribution equipment.


Technical Specifications

• Part Number: SKLA26AT1200

• Product Type: Industrial Molded Case Circuit Breaker Frame Only

• Line: SK1200

• Frame Type: SKLA

• Poles: 2

• Amperage: 1200 Amps

• Trip Type: Electronic Trip Compatible

• Current Limiting: Yes

• Interrupting Rating: 65kA @ 480VAC; 100kA @ 240VAC

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Commercial and Industrial Use: Manufactured for use in commercial and industrial electrical distribution systems.
• Molded Case Construction: Molded case construction designed for demanding operating environments.
• Installation Requirements: Designed for installation in compatible equipment using the appropriate electronic trip components.
• Compatibility Verification: Verify compatibility with your existing electrical system and applicable local electrical codes before installation.


Where It Works Best

• The SKLA26AT1200 is well suited for commercial and industrial facilities that rely on high-capacity electrical distribution equipment, including:
  • Manufacturing facilities
  • Industrial processing plants
  • Commercial buildings
  • Distribution and warehouse operations
  • Utility and infrastructure installations
  • Institutional and municipal facilities
  • Electrical maintenance and retrofit projects requiring a compatible SK1200 frame
  Note: This product is the circuit breaker frame only and does not include the electronic trip unit. It is intended for use with compatible components within the SK1200 system.
