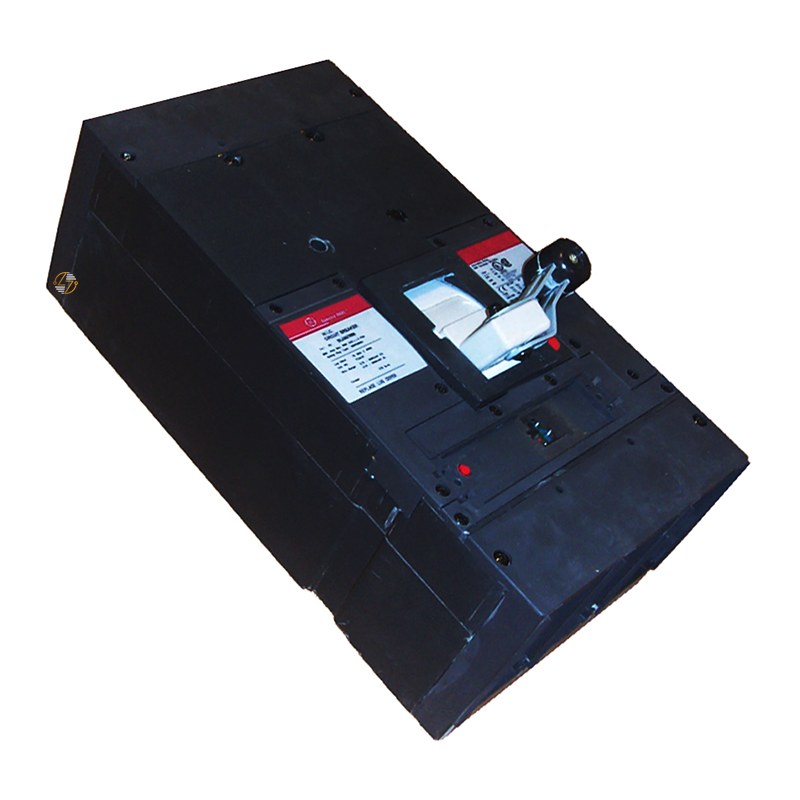

SKLA26AT0800 - 800Amp Max. *Frame Only*

SKLA26AT0800 - 800Amp Max. *Frame Only*

Maximize system reliability and efficiency with the SKLA26AT0800, a premier solution in Spectra RMS Electronic Trip technology. This molded case circuit breaker, designed for a myriad of high-demand applications, offers superior protection and flexibility in system design. This breaker ensures seamless integration and robust performance in industrial environments. This is a frame-only model and requires a compatible trip unit to function as a complete circuit breaker.

Key Features and Benefits

• Versatile Configuration: Equipped with 2 poles and an adjustable trip system, this breaker is tailored for diverse application needs, supporting system voltages up to 600V and currents up to 800A.
• Advanced Protection: Incorporates RMS sensing and digital sampling techniques to accurately detect and interrupt overcurrent conditions, ensuring reliable protection against circuit overloads and short circuits.
• Adjustable Trip Settings: Features adjustable instantaneous and short-time settings, enabling precise protection customization based on specific load requirements and operational conditions.
• Interchangeable Trip Unit: Comes with a field-installable, front-mounted rating plug that allows easy adjustment of the breaker's ampere rating without the need for extensive recalibration or breaker replacement.
• Robust Ratings: Offers high interrupting ratings across various voltages, providing flexibility and safety in various installation environments.

Technical Specifications

• Frame Type: SK1200
• System Voltage Compatibility: 120 Vac, 120/240 Vac, 240 Vac, 277 Vac, 480 Vac, 600 Vac
• Interrupting Ratings: Up to 100 KAIC at 120/240 Vac and 42 KAIC at 600 Vac
• Trip Function: Long-Time, Short-Time, Instantaneous (LSI)

Material Compliance and Certifications

• This circuit breaker is designed and manufactured to meet rigorous safety and performance standards. It is UL listed and CSA certified, ensuring compliance with both U.S. and Canadian safety requirements. The construction adheres to strict environmental and quality controls, making it a reliable choice for critical power management.

Suitability

• Ideal for use in commercial and industrial electrical distribution systems, the SKLA26AT0800 is particularly suitable for heavy machinery, HVAC systems, and large-scale manufacturing operations. It supports reverse feed applications and is equipped with Lugs TCAL81, allowing for flexible installation and maintenance.
