SKHA36AT1200 - 1200Amp Max. *Frame Only*

SKHA36AT1200 - 1200Amp Max. *Frame Only*

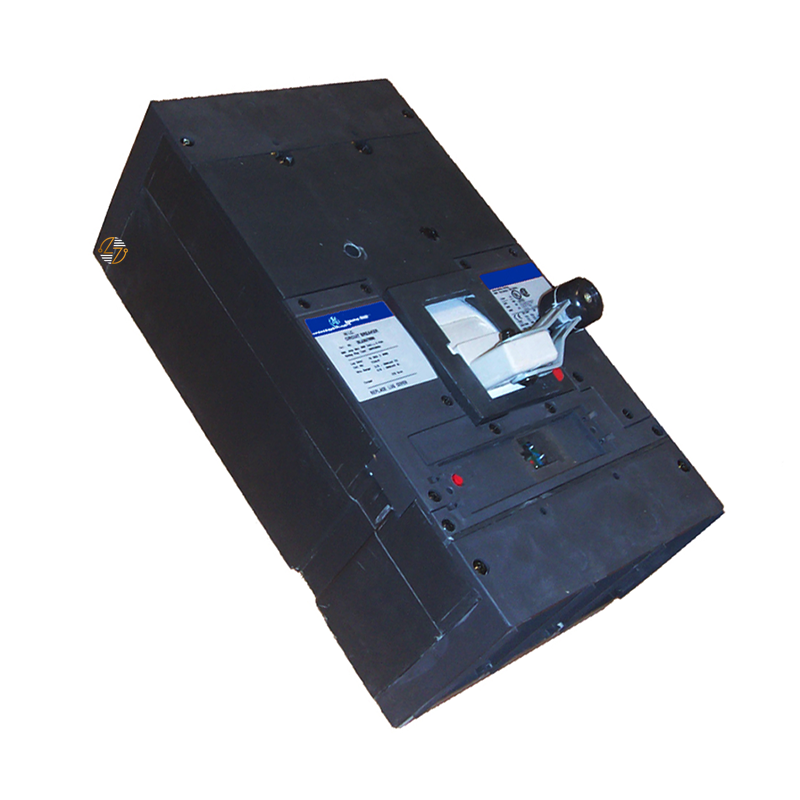

The SKHA36AT1200 is a 1200-amp, 3-pole molded-case circuit breaker frame from the SK1200 line, intended for use in your commercial and industrial power distribution systems. It features an electronic trip design along with current-limiting protection to help you manage fault conditions in compatible electrical equipment. This frame carries interrupting ratings of 25 kA at 600 VAC, 50 kA at 480 VAC, and 65 kA at 240 VAC, making it suitable for a wide range of heavy-duty applications. Because this is the frame only, it serves as a form, fit, and functional replacement for existing compatible installations. Built for years of service, it helps you to keep established electrical systems operating without changing the original equipment configuration.

Key Features and Benefits

• SKHA Series: Molded case circuit breaker frame.
• SK1200 Product Line: SK1200 product line.
• 1200 Amp Current Rating: 1200 amp current rating.
• Three-Pole Configuration: Three-pole configuration for three-phase systems.
• Electronic Trip Design: Electronic trip design.
• Current-Limiting Construction: Current-limiting construction.
• Interrupting Ratings:
  • 25kA at 600VAC
  • 50kA at 480VAC
  • 65kA at 240VAC
• Replacement Compatibility: Designed as a form, fit, and functional replacement for compatible equipment.
• Built for Long Service Life: Built for long service life in demanding electrical applications.
• Frame Only: Frame only.


Technical Specifications

• Part Number: SKHA36AT1200

• Type: SKHA

• Product Line: SK1200

• Configuration: Frame Only

• Poles: 3

• Amperage: 1200A

• Trip Type: Electronic Trip

• Current Limiting: Yes

• Interrupting Rating: 25kA @ 600VAC; 50kA @ 480VAC; 65kA @ 240VAC

• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Commercial and Industrial Use: This circuit breaker frame is intended for use in compatible commercial and industrial electrical systems.
• Installation Requirements: Installation should be performed by qualified personnel and in accordance with applicable electrical codes and manufacturer requirements.
• Compatibility Verification: Confirm compatibility with the existing equipment before installation.


Where It Works Best

• The SKHA36AT1200 is commonly used in switchboards, panelboards, industrial distribution equipment, manufacturing facilities, commercial buildings, and other three-phase electrical systems requiring a 1200-amp molded-case circuit breaker frame. It is a practical choice for maintaining existing installations where matching the original form, fit, and function is important.
