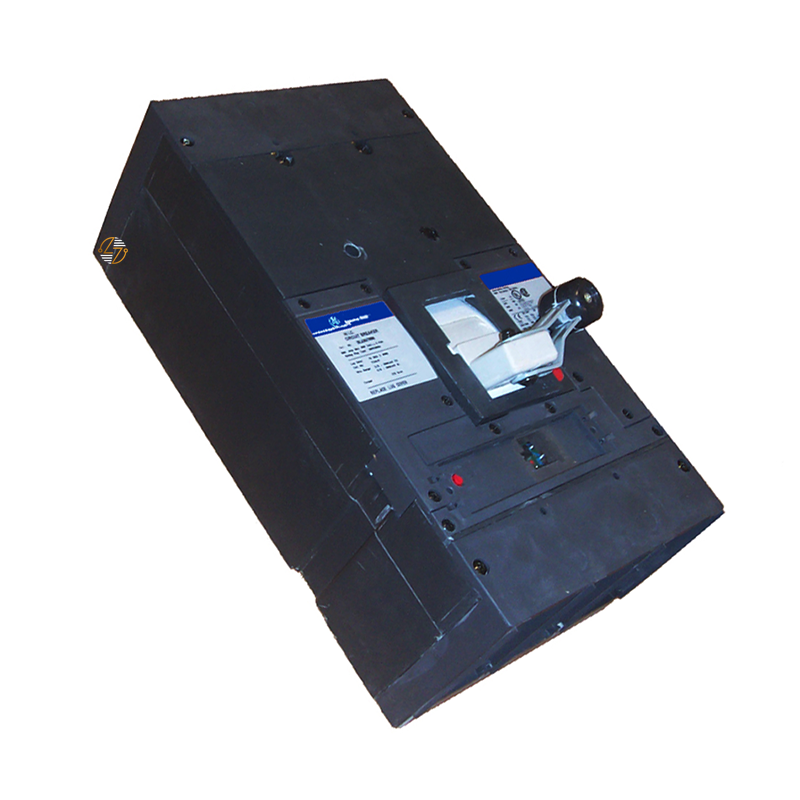

SKHA36AT0800 - 800Amp Max. *Frame Only*

SKHA36AT0800 - 800Amp Max. *Frame Only*

If you're replacing an existing SK1200 line circuit breaker frame, the SKHA36AT0800 is built to match the original installation. This 3-pole, 800-amp molded case circuit breaker frame uses an electronic trip design and current-limiting construction for commercial and industrial electrical systems. This is the frame only, making it a practical replacement when the original frame needs to be changed while the rest of the compatible assembly remains in service. Electrical equipment is expected to stay in service for years, and replacement parts need to fit correctly the first time. The SKHA36AT0800 is built with that in mind. It is intended for use in compatible equipment where maintaining the original ratings and physical fit is important. From manufacturing plants and processing facilities to large commercial buildings, this breaker frame is well suited for keeping existing power distribution equipment operating as intended.

Key Features and Benefits

• Part Number: SKHA36AT0800
• Frame Only: Frame only for compatible SK1200 line circuit breakers
• 800 Amp Current Rating: 800 Amp current rating
• Three-Pole Configuration: Three-pole configuration for three-phase electrical systems
• Electronic Trip Design: Electronic trip design
• Current-Limiting Construction: Current-limiting construction
• Built to Last: Built to last in demanding commercial and industrial environments
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible installations


Technical Specifications

• Part Number: SKHA36AT0800

• Type: SKHA

• Product Line: SK1200

• Configuration: Frame Only

• Poles: 3

• Amperage: 800 Amps

• Trip Type: Electronic Trip

• A.I.C. Rating:
  • 25kA @ 600VAC
  • 50kA @ 480VAC
  • 65kA @ 240VAC
• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Manufacturing: Manufactured for use in compatible industrial electrical distribution systems.
• Electrical Ratings: Electrical ratings are based on the published specifications for this frame.
• Installation: Install and use in accordance with applicable electrical codes and manufacturer guidelines.


Where It Works Best

• The SKHA36AT0800 is commonly found in industrial facilities, manufacturing plants, commercial buildings, and other locations that use high-capacity power distribution equipment. It works as a replacement frame only for compatible SK1200 line breaker assemblies where maintaining the original fit, electrical ratings, and configuration is required.
