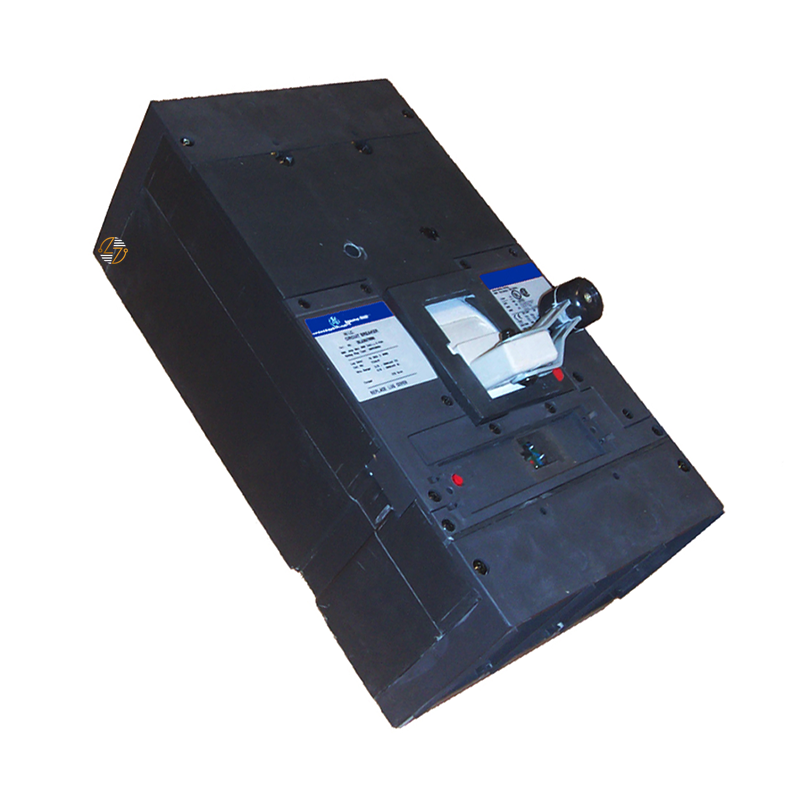

SKHA26AT1200 - 1200Amp Max. *Frame Only*

SKHA26AT1200 - 1200Amp Max. *Frame Only*

When keeping an existing electrical distribution system operating as intended, having the correct replacement components matters. The SKHA26AT1200 is a 2-pole, 1200-amp industrial molded case circuit breaker frame from the SK1200 line, designed for applications that require a compatible current-limiting breaker with an electronic trip configuration. This unit is supplied as a frame only, making it an ideal form, fit, and functional replacement for compatible installations where the original breaker frame needs to be replaced while maintaining the existing system design.

Built for demanding commercial and industrial environments, the SKHA26AT1200 combines a current-limiting design with the strength needed for long-term service. Its interrupting capacity of 50kA at 480VAC and 65kA at 240VAC makes it suitable for electrical systems where high available fault current must be considered. Whether you're servicing switchgear, panelboards, or industrial distribution equipment, this breaker frame is built to last and helps keep compatible power systems operating with confidence.

Key Features and Benefits

• SKHA26AT1200 Industrial Molded Case Circuit Breaker Frame: Industrial molded case circuit breaker frame.
• Frame Only Configuration: Frame only configuration.
• 2-Pole Design: 2-pole design.
• Rated for 1200 Amps: Rated for 1200 amps.
• Part of the SK1200 Product Line: Part of the SK1200 product line.
• Current-Limiting Construction: Current-limiting construction.
• Electronic Trip Compatible: Designed for use with a compatible electronic trip configuration.
• Interrupting Rating: Interrupting rating of 50kA at 480VAC and 65kA at 240VAC.
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible SKHA breaker assemblies.
• Built to Last: Built to last in demanding commercial and industrial applications.

Technical Specifications

• Part Number: SKHA26AT1200
• Type: SKHA
• Product Type: Industrial Molded Case Circuit Breaker Frame
• Configuration: Frame Only
• Poles: 2
• Amperage: 1200A
• Trip Type: Electronic Trip Compatible
• Current Limiting: Yes
• A.I.C. Rating: 50kA @ 480VAC; 65kA @ 240VAC
• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Industrial Molded Case Circuit Breaker Frame: Industrial molded case circuit breaker frame.
• Compatible Installation: Designed for installation in compatible electrical distribution equipment.
• Manufacturing Standards: Manufactured to meet applicable standards for its original product series and ratings.
• Installation Notice: Always verify compatibility with your existing equipment and local electrical codes before installation.

Where It Works Best

• The SKHA26AT1200 is commonly used in commercial and industrial electrical systems where maintaining the original equipment configuration is important. Typical applications include:
  • Manufacturing facilities
  • Industrial plants
  • Commercial buildings
  • Utility and infrastructure projects
  • Institutional facilities
  • Electrical distribution equipment
  • Switchgear
  • Large panelboards
• If you're replacing an existing compatible breaker frame, the SKHA26AT1200 provides the proper form, fit, and function needed to help restore the equipment to its intended operating configuration without modifying the surrounding system.
