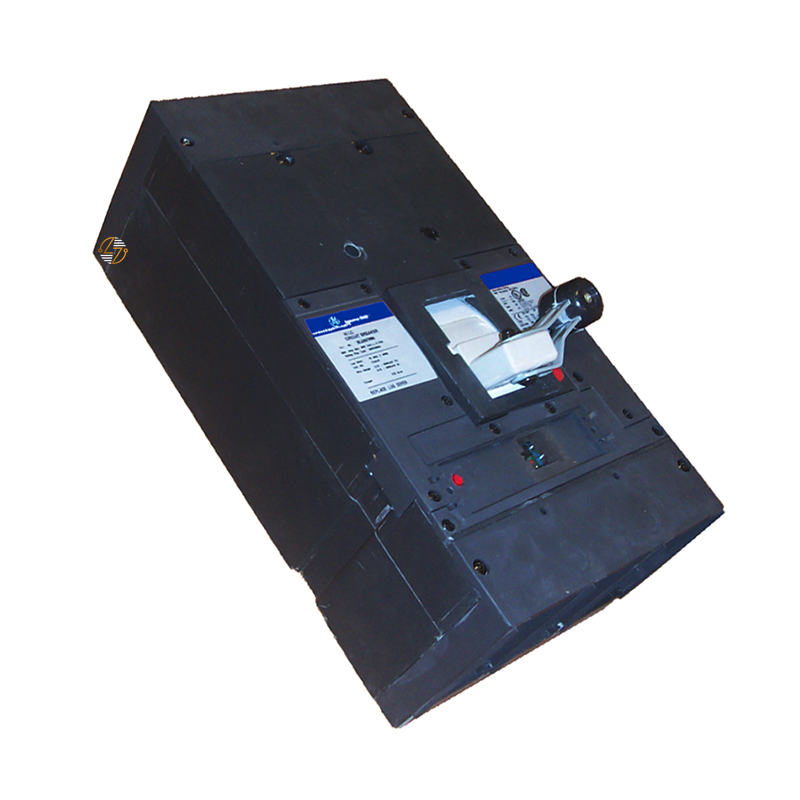

SKHA26AT0800 - 800Amp Max. *Frame Only*

SKHA26AT0800 - 800Amp Max. *Frame Only*

When keeping an existing electrical distribution system operating, finding a compatible replacement component matters. The SKHA26AT0800 is a 2-pole, 800-amp industrial molded-case circuit breaker frame from the SK1200 line, designed for applications requiring dependable overcurrent protection and compatibility with existing equipment. Featuring a current-limiting design and an electronic trip configuration, this breaker frame is rated for 50kA at 480VAC and 65kA at 240VAC, making it suitable for demanding commercial and industrial environments where available fault current must be carefully managed.

This listing is for the frame only, making it an ideal choice when replacing a compatible breaker frame while maintaining the original form, fit, and function of your electrical system. Whether you're servicing manufacturing equipment, upgrading facility maintenance inventory, or replacing a worn component during scheduled maintenance, the SKHA26AT0800 is built to last and designed to integrate with compatible SK1200 installations. Before installation, always verify that the part number, electrical ratings, and system requirements match your existing equipment.

Key Features and Benefits

• Part Number: SKHA26AT0800
• 800 Amp Current Rating: 800 Amp current rating for high-capacity power distribution applications.
• 2-Pole Configuration: 2-pole configuration.
• Current-Limiting Design: Current-limiting design helps reduce the effects of high fault currents.
• Electronic Trip Configuration: Electronic trip configuration for dependable overcurrent protection.
• Interrupting Capacity: Interrupting capacity of 50kA at 480VAC and 65kA at 240VAC.
• SK1200 Product Line: Part of the SK1200 product line.
• Frame Only Configuration: Frame only configuration.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible equipment.
• Built to Last: Built to last in demanding commercial and industrial environments.

Technical Specifications

• Part Number: SKHA26AT0800
• Type: SKHA
• Product Line: SK1200
• Product Style: Industrial Molded Case Circuit Breaker Frame
• Configuration: Frame Only
• Poles: 2
• Amperage: 800A
• Trip Type: Electronic Trip
• Current Limiting: Yes
• A.I.C. Rating: 50kA @ 480VAC; 65kA @ 240VAC
• Dimensions:
  • Height: 15.5 in.
  • Width: 8.25 in.
  • Depth: 5.5 in.

Material Compliance and Certifications

• Commercial and Industrial Use: Designed for use in commercial and industrial electrical distribution systems.
• Original Equipment Requirements: Manufactured to meet the original form, fit, and functional requirements of compatible equipment.
• Installation Notice: Confirm compatibility with your equipment specifications and applicable electrical codes before installation.

Where It Works Best

• The SKHA26AT0800 is commonly used in facilities where dependable power distribution is essential, and equipment compatibility is a priority. Typical applications include:
  • Manufacturing plants
  • Industrial processing facilities
  • Commercial buildings
  • Electrical switchgear
  • Power distribution equipment
  • Motor control systems
  • Industrial control panels
  • Facility maintenance and repair projects requiring a compatible replacement breaker frame
• Its combination of an 800-amp rating, 2-pole design, and electronic trip configuration makes it a practical solution for maintaining existing SK1200 electrical systems without changing the original equipment layout or electrical characteristics.
