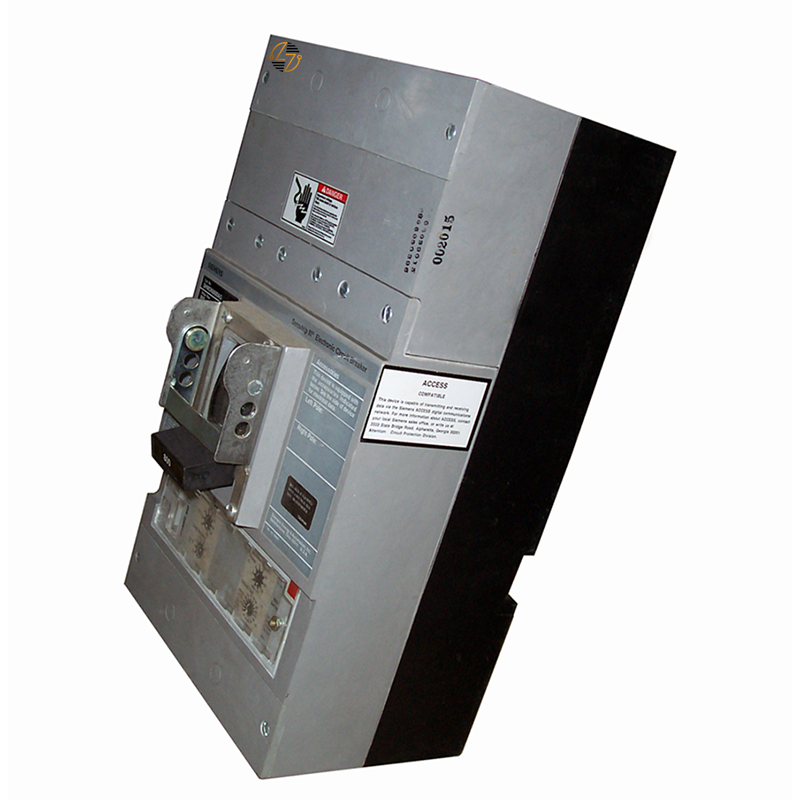

SHND69800ANT - 800Amp Circuit Breaker

SHND69800ANT - 800Amp Circuit Breaker

The SHND69800ANT Siemens Low Voltage Sentron Molded Case Circuit Breaker is a high-performance solution engineered to meet the rigorous demands of industrial and commercial electrical systems. This 800A, 3-pole breaker offers an impressive high breaking capacity, ensuring robust protection and operational efficiency. Equipped with an advanced Electronic Trip Unit (ETU) and SENSITRIP functions, the SHND69800ANT provides precise and adjustable trip settings, enhancing safety and flexibility. Compliant with UL 489 and IEC 60947-2 standards, this circuit breaker guarantees adherence to the highest quality and safety benchmarks, making it a trusted choice for critical environments.

Key Features and Benefits:

• High Breaking Capacity: Rated at 50kAIC at 600V and 65kAIC at 480V, providing exceptional protection against high fault currents.
• Advanced Electronic Trip Unit (ETU): The ETU offers accurate and customizable trip settings, ensuring optimal protection and adaptability for various operational needs.
• SENSITRIP Functions: Enhance the sensitivity and responsiveness of the circuit breaker, ensuring immediate action during electrical faults.
• Durability and Versatility: Includes line and load side lugs (TA4N8500), supporting a wire range of 250 - 500KCM (CU/AL), accommodating diverse wiring requirements.

Technical Specifications:

• Frame Type: ND
• Rated Current: 800 Amps
• Number of Poles: 3
• Interrupting Rating: 50kAIC at 600V, 65kAIC at 480V
• Dimensions: 9 x 16 x 6 inches (W x H x D)
• Weight: 62 lbs

Material Compliance and Certifications:

• Standards Compliance: Meets UL 489 and IEC 60947-2 standards, ensuring high safety and performance levels.
• RoHS Compliance: Conforms to the RoHS directive since March 30, 2009, indicating it is free from hazardous substances.

Suitability:

• The SHND69800ANT is ideal for a wide range of industrial and commercial applications, including manufacturing plants, commercial buildings, and other facilities requiring reliable circuit protection. Its robust design and advanced features make it suitable for environments where high performance and safety are paramount.
