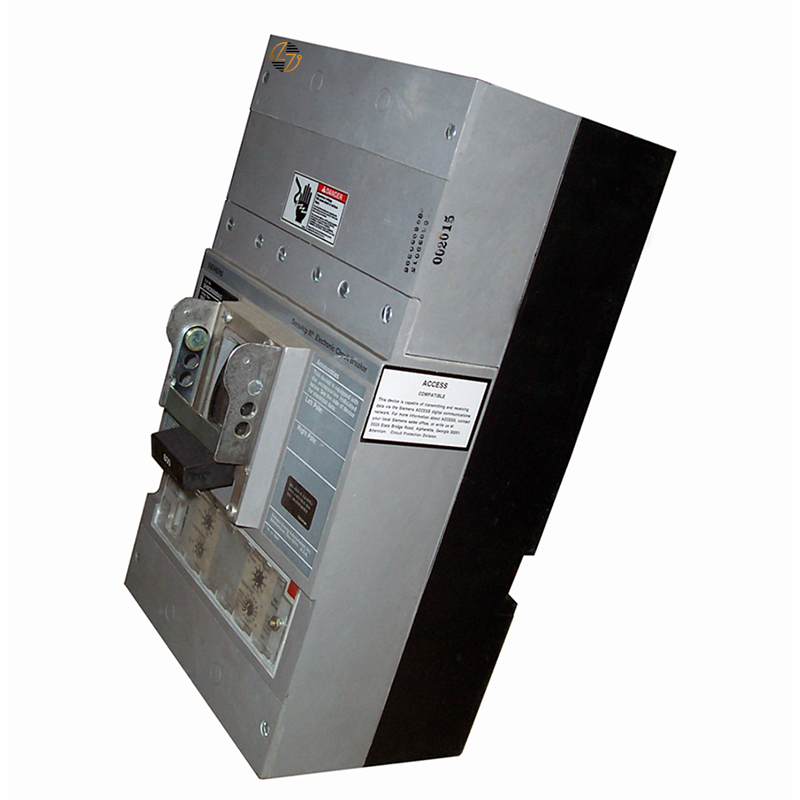

SHND69800A - 800Amp Circuit Breaker

SHND69800A - 800Amp Circuit Breaker

The Siemens SHND69800A is a robust low voltage SENTRON molded case circuit breaker featuring an advanced electronic trip unit (ETU). Engineered for optimal performance and reliability, this standard 40å¡C breaker in an ND frame meets stringent UL 489 and IEC 60947-2 standards, ensuring high breaking capacity for demanding electrical applications. Rated at 800A with three poles, the SHND69800A provides substantial interruption capacities of 50kAIC at 600V and 65kAIC at 480V. Equipped with LI Sensitrip functions, it offers precise protection against overloads and short circuits. This breaker includes line and load side lugs (TA4N8500) supporting a wire range of 250 - 500kcm (CU/AL), facilitating flexible and efficient installation. Its compact dimensions of 9 x 16 x 6 inches make it suitable for a variety of electrical systems, ensuring robust and dependable circuit protection.

Key Features and Benefits:

• High Breaking Capacity: Delivers exceptional interruption capacities of 50kAIC at 600V and 65kAIC at 480V, ideal for high-demand electrical systems.
• Advanced Electronic Trip Unit (ETU): Features LI Sensitrip functions for accurate and reliable circuit protection, minimizing the risk of electrical faults.
• Standards Compliance: Meets UL 489 and IEC 60947-2 standards, ensuring high levels of safety and reliability.
• Versatile Connectivity: Equipped with line and load side lugs (TA4N8500), accommodating a wide wire range (CU/AL: 250 - 500kcm), facilitating versatile installation.
• Compact Design: Dimensions of 9 x 16 x 6 inches allow for easy integration into various electrical setups.

Technical Specifications:

• Rated Current: 800A
• Poles: 3
• Interruption Capacity: 50kAIC at 600V, 65kAIC at 480V
• Frame Type: ND Frame
• Dimensions: 9 x 16 x 6 inches
• Standards Compliance: UL 489, IEC 60947-2
• Special Features: LI Sensitrip functions, line and load side lugs (TA4N8500)
• Wire Range: 250 - 500kcm (CU/AL)

Material Compliance and Certifications:

• Compliance: The SHND69800A circuit breaker is designed to comply with stringent material standards, adhering to the RoHS directive, which ensures the reduction of hazardous substances in electrical and electronic equipment.

Suitability:

• The Siemens SHND69800A circuit breaker is perfect for high-demand commercial, industrial, and infrastructure applications where robust circuit protection and adherence to international safety standards are essential. Its advanced features and durable design make it a reliable choice for professionals seeking dependable and versatile circuit breakers.
