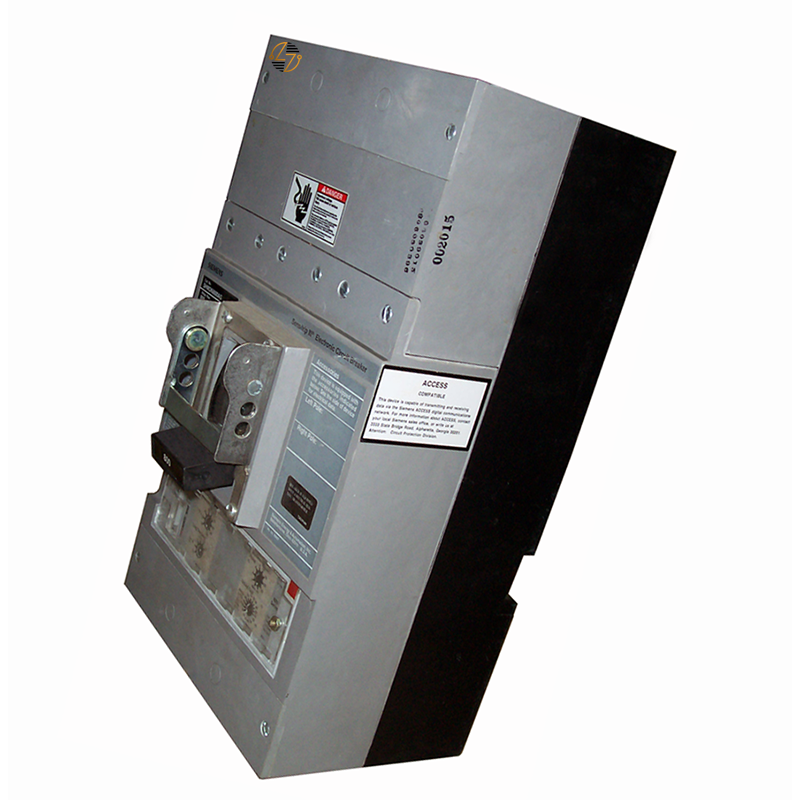

SHND69120ANGT - 1200Amp Circuit Breaker

SHND69120ANGT 1200A Circuit Breaker

The Siemens SHND69120ANGT is a high-capacity low voltage SENTRON molded case circuit breaker equipped with an advanced electronic trip unit (ETU). Engineered for superior performance and reliability, this standard 40å¡C breaker in an ND frame meets the rigorous UL 489 and IEC 60947-2 standards, ensuring optimal safety and efficiency in demanding electrical applications. Rated at 1200A with three poles, it boasts substantial interruption capacities of 50kAIC at 600V and 65kAIC at 480V. The SHND69120ANGT features LSIG Sensitrip functions, offering precise protection against overloads and short circuits. Additionally, it includes line and load side lugs (TA4N8500) supporting a wire range of 250 - 500kcm (CU/AL), facilitating flexible and efficient installation. Its compact dimensions of 9 x 16 x 6 inches make it an ideal choice for various electrical systems, ensuring robust and reliable circuit protection.

Key Features and Benefits:

• High Breaking Capacity: Provides exceptional interruption capacities of 50kAIC at 600V and 65kAIC at 480V, ideal for high-demand electrical systems.
• Advanced Electronic Trip Unit (ETU): Features LSIG Sensitrip functions for accurate and reliable circuit protection, minimizing the risk of electrical faults.
• Standards Compliance: Meets UL 489 and IEC 60947-2 standards, ensuring high levels of safety and reliability.
• Versatile Connectivity: Equipped with line and load side lugs (TA4N8500), accommodating a wide wire range (CU/AL: 250 - 500kcm), facilitating versatile installation.
• Compact Design: Dimensions of 9 x 16 x 6 inches allow for easy integration into various electrical setups.

Technical Specifications:

• Rated Current: 1200A
• Poles: 3
• Interruption Capacity: 50kAIC at 600V, 65kAIC at 480V
• Frame Type: ND Frame
• Dimensions: 9 x 16 x 6 inches
• Standards Compliance: UL 489, IEC 60947-2
• Special Features: LSIG Sensitrip functions, line and load side lugs (TA4N8500)
• Wire Range: 250 - 500kcm (CU/AL)

Material Compliance and Certifications:

• Compliance: The SHND69120ANGT circuit breaker is designed to comply with stringent material standards, adhering to the RoHS directive, which ensures the reduction of hazardous substances in electrical and electronic equipment.

Suitability:

• The Siemens SHND69120ANGT circuit breaker is perfect for high-demand commercial, industrial, and infrastructure applications where robust circuit protection and adherence to international safety standards are essential. Its advanced features and durable design make it a reliable choice for professionals seeking dependable and versatile circuit breakers.
