SHND69120AG - 1200Amp Circuit Breaker

SHND69120AG - 1200Amp Circuit Breaker

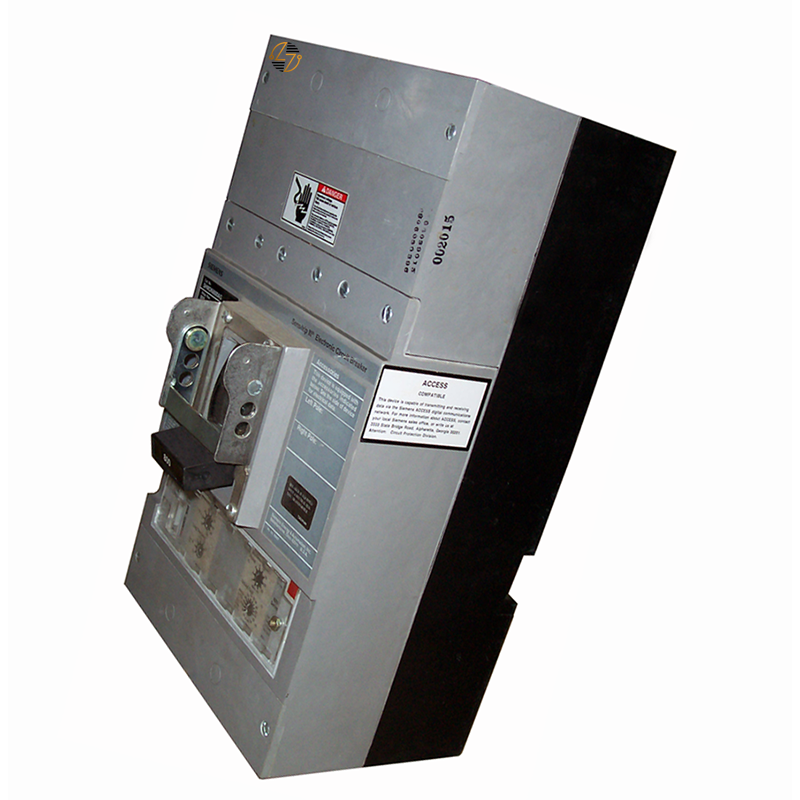

The SHND69120AG is a 1200-amp, 3-pole molded-case circuit breaker built on the SND1200A frame. It is intended for use in your compatible commercial and industrial electrical distribution systems, where the original breaker's ratings and dimensions must be maintained. As a thermal-magnetic circuit breaker, it provides both overload and short-circuit protection while offering several adjustable trip functions to help you match the protection requirements of the application.

This breaker includes adjustable settings for continuous current, long-time delay, instantaneous protection, ground-fault pickup, and ground-fault delay. These adjustments allow qualified personnel to coordinate the breaker with other protective devices in the system when needed. The SHND69120AG carries interrupting ratings of 50kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, making it suitable for a wide range of power distribution equipment that requires these ratings. It is built to last and is commonly selected as a form-fit-and-function replacement for compatible installations.

Key Features and Benefits

• Part Number: SHND69120AG
• 1200 Amp Current Rating: 1200 Amp current rating.
• 3-Pole Configuration: 3-pole configuration.
• Breaker Type: SHND6 molded case circuit breaker.
• Frame: SND1200A frame.
• Thermal Magnetic Trip Mechanism: Thermal magnetic trip mechanism.
• Adjustable Trip Functions Include:
  • Continuous Current Setting
  • Long Time Delay
  • Instantaneous Setting
  • Ground Fault Pickup
  • Ground Fault Delay
• Interrupting Ratings:
  • 50kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Replacement: Form, fit, and functional replacement for compatible equipment.
• Built for Long Service Life: Built for long service life.
• Lug Terminals: Lug terminals not included.

Technical Specifications

• Part Number: SHND69120AG

• Type: SHND6

• Frame: SND1200A

• Circuit Breaker Type: Molded Case Circuit Breaker

• Trip Type: Thermal Magnetic

• Poles: 3

• Amperes: 1200A

• Interrupting Rating:
  • 50kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Dimensions:
  • Height: 16.0 in.
  • Width: 9.0 in.
  • Depth: 6.0 in.
• Lug Terminals: Not Included


Material Compliance and Certifications

• Molded Case Circuit Breaker Construction: Molded case circuit breaker construction.
• Thermal Magnetic Overcurrent Protection: Thermal magnetic overcurrent protection.
• Adjustable Ground Fault and Overcurrent Settings: Adjustable ground fault and overcurrent settings.
• Compatible Equipment: Intended for use in compatible equipment with matching electrical ratings.
• Installation Requirements: Installation should be performed in accordance with applicable electrical codes and manufacturer requirements.


Where It Works Best

• The SHND69120AG is commonly used in switchboards, panelboards, industrial control systems, manufacturing facilities, commercial buildings, and other electrical distribution equipment that require a 1200-amp, 3-pole molded-case circuit breaker. It is intended for maintaining existing systems where a compatible replacement with the same frame size, electrical ratings, and adjustable protection features is required.
