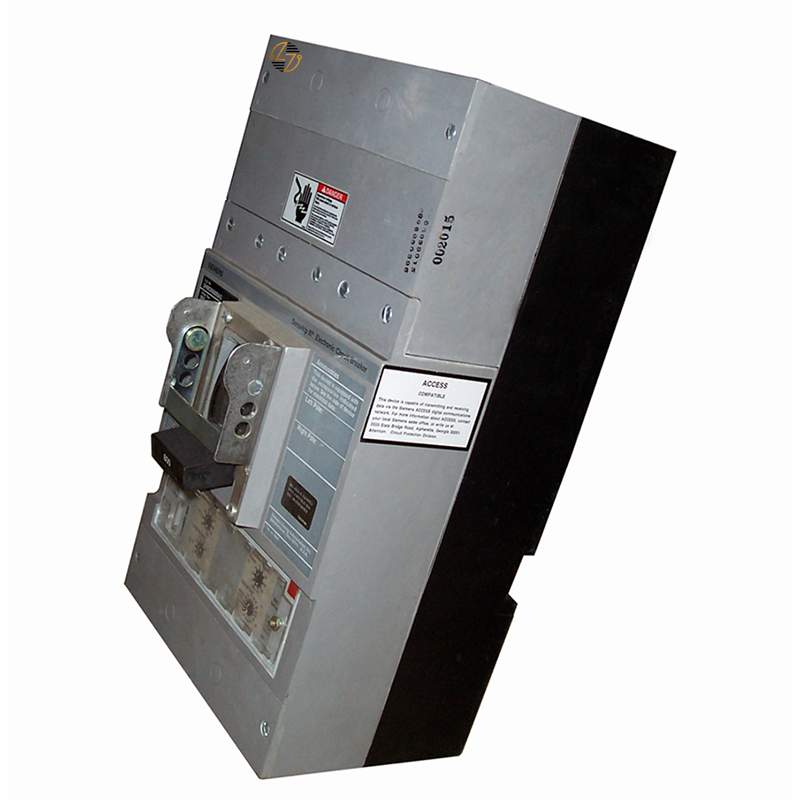

SHND69100ANT - 1000Amp Circuit Breaker

SHND69100ANT - 1000Amp Circuit Breaker

The Siemens SHND69100ANT is a top-of-the-line low voltage SENTRON molded case circuit breaker equipped with an advanced electronic trip unit (ETU). Designed to deliver exceptional performance and reliability, this standard 40å¡C breaker, housed in an ND frame, ensures high breaking capacity for demanding electrical applications. Compliant with UL 489 and IEC 60947-2 standards, it is rated at 1000A with three poles, providing substantial interruption capacities of 50kAIC at 600V and 65kAIC at 480V. The SHND69100ANT features LSI Sensitrip functions, which offer precise protection against overloads and short circuits.

Key Features and Benefits:

• High Breaking Capacity: Offers substantial interruption capacities of 50kAIC at 600V and 65kAIC at 480V, making it suitable for high-demand electrical systems.
• Advanced Electronic Trip Unit (ETU): Features LSI Sensitrip functions for accurate and reliable circuit protection, reducing the risk of electrical faults.
• Standards Compliance: Meets UL 489 and IEC 60947-2 standards, ensuring high levels of safety and reliability.
• Versatile Connectivity: Equipped with line and load side lugs (TA4N8500), accommodating a wide wire range (CU/AL: 250 - 500kcm), facilitating versatile installation.

Technical Specifications:

• Rated Current: 1000A
• Poles: 3
• Interruption Capacity: 50kAIC at 600V, 65kAIC at 480V
• Frame Type: ND Frame
• Dimensions: 9 x 16 x 6 inches
• Standards Compliance: UL 489, IEC 60947-2
• Special Features: LSI Sensitrip functions, line and load side lugs (TA4N8500)
• Wire Range: 250 - 500kcm (CU/AL)

Material Compliance and Certifications:

• Compliance: The SHND69100ANT circuit breaker is designed to comply with stringent material standards, adhering to the RoHS directive, which ensures the reduction of hazardous substances in electrical and electronic equipment.

Suitability:

• The Siemens SHND69100ANT circuit breaker is perfect for high-demand commercial, industrial, and infrastructure applications where robust circuit protection and adherence to international safety standards are essential. Its advanced features and durable design make it a reliable choice for professionals seeking dependable and versatile circuit breakers.
