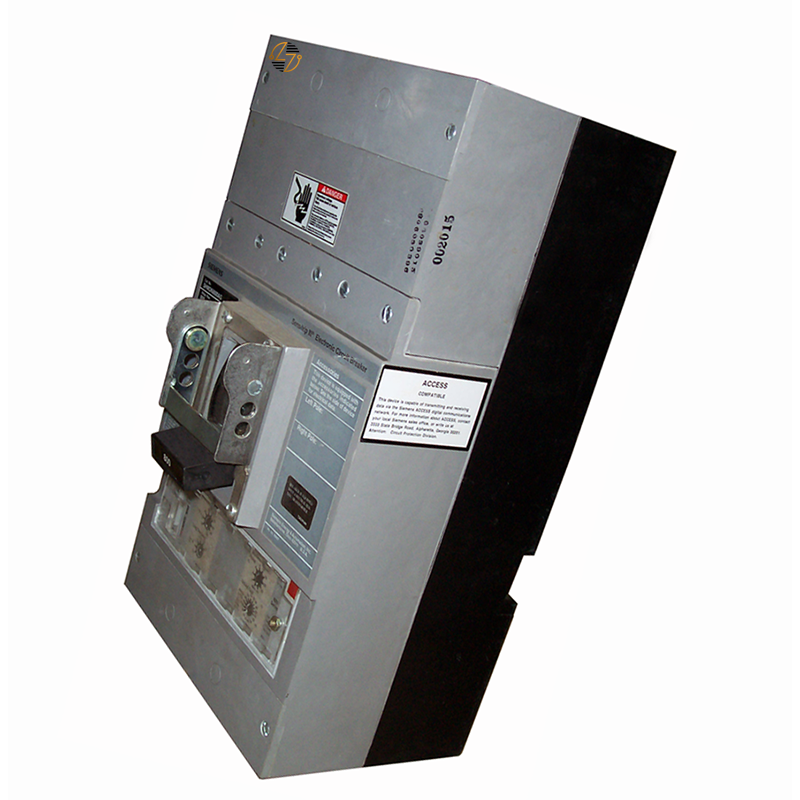

SHND69100ANGT - 1000Amp Circuit Breaker

SHND69100ANGT - 1000Amp Circuit Breaker

The SHND69100ANGT Siemens Low Voltage Sentron Molded Case Circuit Breaker is an exceptional choice for high-demand industrial and commercial electrical applications. This 1000A, 3-pole breaker offers superior performance and reliability, featuring a high breaking capacity designed to handle the most challenging electrical faults. Equipped with an advanced Electronic Trip Unit (ETU) and SENSITRIP functions, the SHND69100ANGT provides precise and adjustable trip settings, ensuring optimal protection and flexibility. Compliant with UL 489 and IEC 60947-2 standards, this circuit breaker meets the highest quality and safety benchmarks, making it a trusted choice for critical environments.

Key Features and Benefits:

• High Breaking Capacity: Rated at 50kAIC at 600V and 65kAIC at 480V, providing robust protection against high fault currents.
• Advanced Electronic Trip Unit (ETU): The ETU offers accurate and customizable trip settings, ensuring optimal protection and adaptability for various operational needs.
• SENSITRIP Functions: Enhance the sensitivity and responsiveness of the circuit breaker, providing immediate action during electrical faults.
• Durability and Versatility: Includes line and load side lugs (TA4N8500), supporting a wire range of 250 - 500KCM (CU/AL), accommodating diverse wiring requirements.

Technical Specifications:

• Frame Type: ND
• Rated Current: 1000 Amps
• Number of Poles: 3
• Interrupting Rating: 50kAIC at 600V, 65kAIC at 480V
• Dimensions: 9 x 16 x 6 inches (W x H x D)
• Weight: 62 lbs

Material Compliance and Certifications:

• Standards Compliance: Meets UL 489 and IEC 60947-2 standards, ensuring high safety and performance levels.
• RoHS Compliance: Conforms to the RoHS directive since March 30, 2009, indicating it is free from hazardous substances.

Suitability:

• The SHND69100ANGT is ideal for a wide range of industrial and commercial applications, including manufacturing plants, commercial buildings, and other facilities requiring reliable circuit protection. Its robust design and advanced features make it suitable for environments where high performance and safety are paramount.

The SHND69100ANGT Circuit Breaker provides robust performance and safety, making it an indispensable component for electrical systems demanding reliability and adherence to international standards. Explore how this breaker can enhance your electrical infrastructure with advanced protection features and superior durability.
