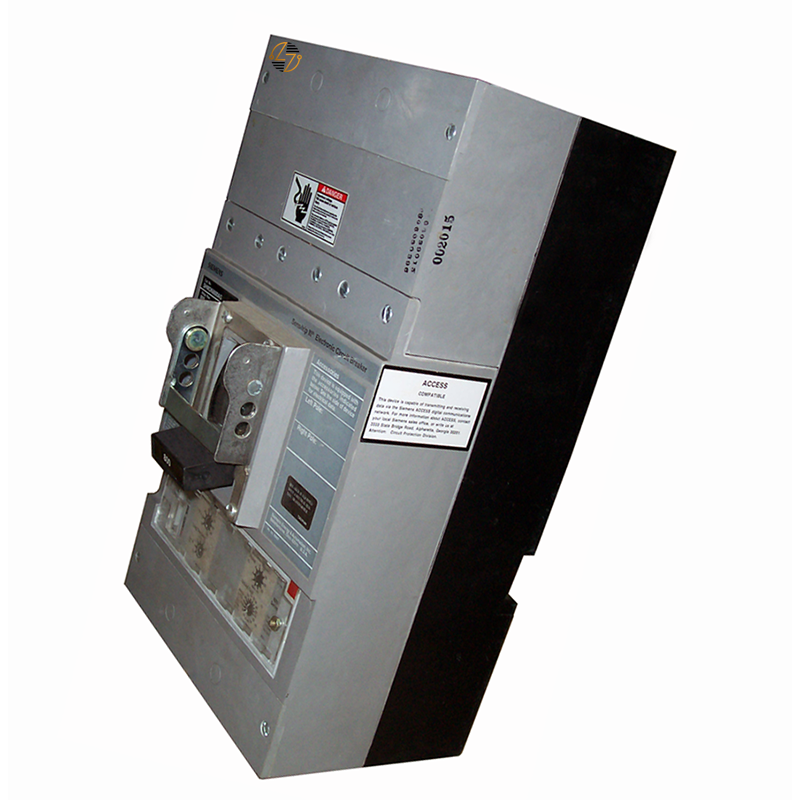

SHND69100AG - 1000Amp Circuit Breaker

SHND69100AG - 1000Amp Circuit Breaker

The Siemens SHND69100AG is a high-capacity low voltage SENTRON molded case circuit breaker, incorporating a state-of-the-art electronic trip unit (ETU) designed for superior performance and reliability. This standard 40å¡C breaker in an ND frame meets the rigorous UL 489 and IEC 60947-2 standards, ensuring high breaking capacity for demanding electrical applications. Rated at 1000A with three poles, the SHND69100AG provides impressive interruption capacities of 50kAIC at 600V and 65kAIC at 480V. Featuring LIG Sensitrip functions, it delivers precise protection against overloads and short circuits.

Key Features and Benefits:

• High Breaking Capacity: Offers substantial interruption capacities of 50kAIC at 600V and 65kAIC at 480V, making it suitable for high-demand electrical systems.
• Advanced Electronic Trip Unit (ETU): Features LIG Sensitrip functions for accurate and reliable circuit protection, reducing the risk of electrical faults.
• Standards Compliance: Meets UL 489 and IEC 60947-2 standards, ensuring high levels of safety and reliability.
• Versatile Connectivity: Equipped with line and load side lugs (TA4N8500), accommodating a wide wire range (CU/AL: 250 - 500kcm), facilitating versatile installation.

Technical Specifications:

• Rated Current: 1000A
• Poles: 3
• Interruption Capacity: 50kAIC at 600V, 65kAIC at 480V
• Frame Type: ND Frame
• Dimensions: 9 x 16 x 6 inches
• Standards Compliance: UL 489, IEC 60947-2
• Special Features: LIG Sensitrip functions, line and load side lugs (TA4N8500)
• Wire Range: 250 - 500kcm (CU/AL)

Material Compliance and Certifications:

• Compliance: The SHND69100AG circuit breaker is designed to comply with stringent material standards, adhering to the RoHS directive, which ensures the reduction of hazardous substances in electrical and electronic equipment.

Suitability:

• The Siemens SHND69100AG circuit breaker is perfect for high-demand commercial, industrial, and infrastructure applications where robust circuit protection and adherence to international safety standards are essential. Its advanced features and durable design make it a reliable choice for professionals seeking dependable and versatile circuit breakers.
