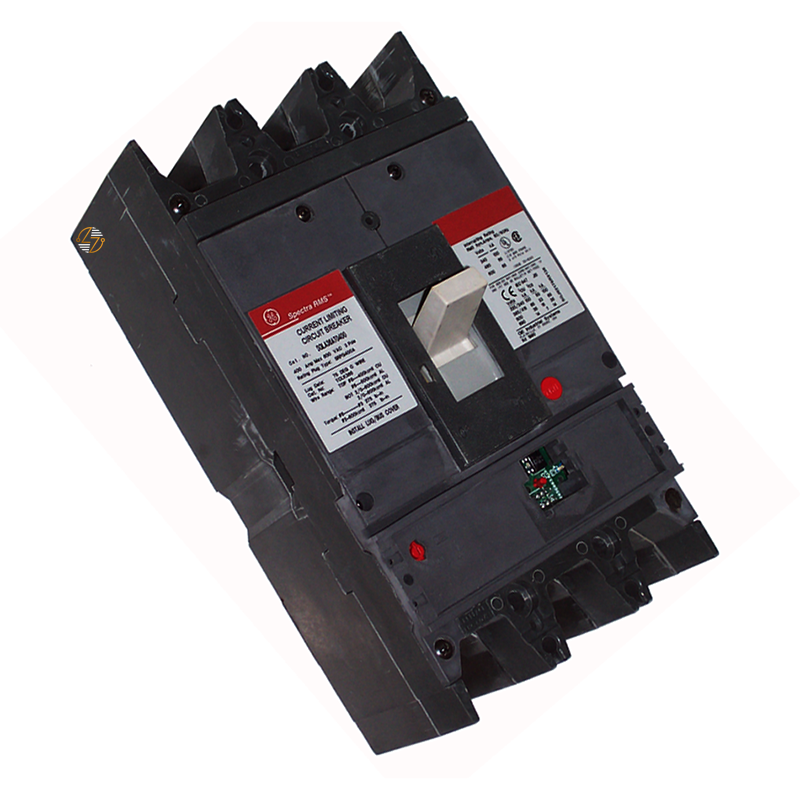

SGPA36AT0600 - 600Amp Max. *Frame Only*

SGPA36AT0600 - 600Amp Max. *Frame Only*

If you're maintaining or repairing an existing SG600 Line electrical distribution system, the SGPA36AT0600 provides the correct form, fit, and functional replacement for compatible applications. This 600-amp, 3-pole molded-case circuit breaker frame is designed for use with an electronic trip configuration and is supplied as a frame only, making it an ideal solution for replacing a damaged or worn breaker frame while retaining compatible components.

Built for demanding commercial and industrial environments, the SGPA36AT0600 is designed to last and delivers the interrupting capacity needed for systems with higher available fault current. With ratings of 65kA at 600VAC, 100kA at 480VAC, and 200kA at 240VAC, it helps support dependable circuit protection in manufacturing facilities, commercial buildings, industrial plants, and other heavy-duty electrical installations. Whether you're performing scheduled maintenance or replacing an existing breaker, this frame is intended to match compatible SG600 Series equipment without requiring changes to your existing system design.

Key Features and Benefits

• Genuine SG600 Line Frame: Genuine SG600 Line molded case circuit breaker frame.
• Part Number: SGPA36AT0600.
• Frame Only Configuration: Frame only for compatible electronic trip applications.
• 600 Amp Current Rating: 600 Amp current rating.
• Three-Pole Configuration: Three-pole configuration for three-phase power systems.
• Current-Limiting Design: Current-limiting design.
• Interrupting Ratings:
  • 65kA @ 600VAC
  • 100kA @ 480VAC
  • 200kA @ 240VAC
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible SG600 Series equipment.
• Built to Last: Built to last in commercial and industrial environments.
• Maintains Existing Systems: Helps maintain existing electrical distribution systems without modifying compatible equipment.


Technical Specifications

• Part Number: SGPA36AT0600

• Series: SG600 Line

• Type: SGPA

• Product Type: Industrial Molded Case Circuit Breaker Frame

• Configuration: Frame Only

• Poles: 3

• Amperage: 600A

• Trip Type: Electronic Trip

• Current Limiting: Yes

• Interrupting Ratings:
  • 65kA @ 600VAC
  • 100kA @ 480VAC
  • 200kA @ 240VAC
• Dimensions:
  • Height: 10.09 in.
  • Width: 5.50 in.
  • Depth: 3.81 in.

Material Compliance and Certifications

• Application: Designed for use in compatible SG600 Line electrical distribution systems.
• Manufacturing: Manufactured to meet the original product design specifications and electrical ratings.
• Compatibility: Verify compatibility with existing equipment before installation.
• Installation Requirements: Installation should always be performed by qualified electrical personnel and in accordance with applicable electrical codes.


Where It Works Best

• The SGPA36AT0600 is commonly used in commercial and industrial facilities where dependable circuit protection is essential. It is well suited for switchboards, panelboards, motor control centers, industrial manufacturing equipment, processing facilities, utilities, and large commercial buildings. Because this unit is supplied as a frame only, it is intended for applications using the appropriate compatible electronic trip components. If you're servicing an existing SG600 Line installation, this breaker frame provides a straightforward replacement that maintains the original equipment configuration.
