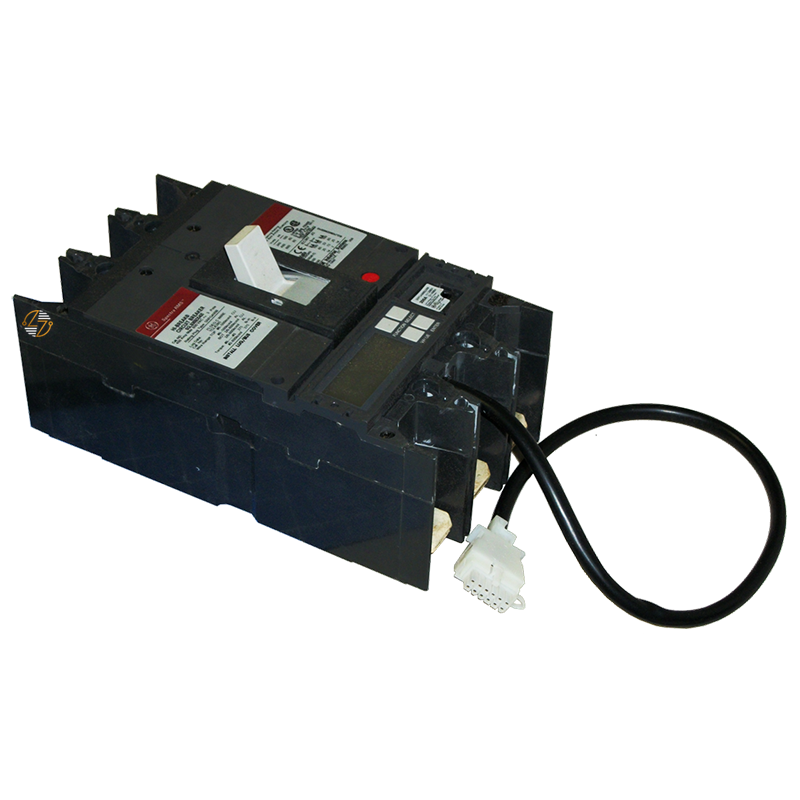

SGLB36BD0150 - 150Amp Max. *Frame Only*

SGLB36BD0150 - 150Amp Max. *Frame Only*

Introducing the SGLB36BD0150 circuit breaker, a high-performance and reliable solution designed to meet the rigorous demands of modern electrical systems. Part of the Spectra RMS series, this 150A, 3-pole breaker features a digital, solid-state RMS sensing trip system, ensuring precise and dependable protection. With adjustable instantaneous trip settings and front-mounted rating plugs, it is adaptable to various applications, making it ideal for residential, commercial, and industrial environments where superior protection and adaptability are required. This is a frame-only model and requires a compatible trip unit to function as a complete circuit breaker.

Key Features and Benefits

• High Capacity: 150A, 3-pole breaker suitable for demanding electrical systems.
• Advanced Trip System: Digital, solid-state RMS sensing trip system for accurate protection.
• Adjustable Settings: Adjustable long time, short time, and instantaneous trip settings for customized protection.
• Voltage Rating: Compatible with a wide range of system voltages (120V, 120/240V, 240V, 277V, 480V, 600V).
• High Interrupting Capacity: 100kAIC for 120V, 120/240V, and 240V applications; 65kAIC for 277V, 480V, and 600V applications.
• Ground Fault Protection: Built-in ground fault protection enhances safety.
• Trip Indication: Features trip indication target for easy fault identification.
• Versatility: Suitable for reverse feed applications.

Technical Specifications

• Amperage: 150A (also available in 60A, 80A, 100A, and 125A)
• Voltage: 120V, 120/240V, 240V, 277V, 480V, 600V
• Interrupting Capacity Rating: 100kAIC (120V, 120/240V, 240V), 65kAIC (277V, 480V, 600V)
• Poles: 3
• Trip Style: Interchangeable
• Frame Type: SG600
• Trip Function: LSIG (Long Time, Short Time, Instantaneous, Ground Fault)
• Trip Indication Target: Yes
• Continuous Current Rating: Standard
• Suitable for Reverse Feed: Yes
• Lugs: TCLK365
• Adjustable Settings: Long time, short time, instantaneous
• Ground Fault Protection: Yes
• Current Metering: Yes
• Special Markings: HACR

Material Compliance and Certifications

• The SGLB36BD0150 circuit breaker is constructed with high-quality materials that ensure durability and long-lasting performance. It meets stringent industry standards for safety and reliability, being UL and CSA certified, providing peace of mind for a variety of applications.

Suitability

• The SGLB36BD0150 is ideal for a range of applications, including residential, commercial, and industrial environments. Its high amperage rating and advanced trip system make it suitable for systems requiring precise and reliable protection. The breakers design allows for efficient installation and integration, making it a versatile component for modern power management solutions.
