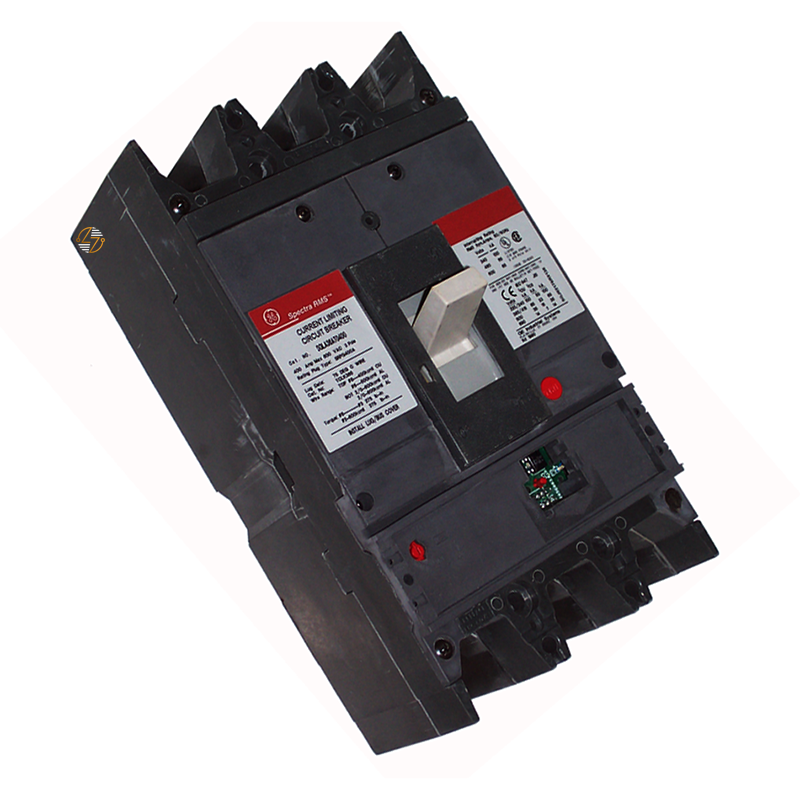

SGLA36AT0600 - 600Amp Max. *Frame Only*

SGLA36AT0600 - 600Amp Max. *Frame Only*

The SGLA36AT0600 is a 3-pole, 600-amp industrial molded case circuit breaker frame from the SG600 line, designed for use in your electrical distribution systems that require dependable overcurrent protection and compatibility with existing equipment. This Type SGLA frame features an electronic trip configuration and a current-limiting design that helps you to reduce the effects of high fault currents when paired with the appropriate components. Rated for 65kA at 480VAC and 100kA at 240VAC, it is well-suited for demanding commercial and industrial applications where maintaining the original form, fit, and function of an existing system is important.

Key Features and Benefits

• Type SGLA Circuit Breaker Frame: Type SGLA industrial molded case circuit breaker frame.
• 600 Amp Rating: 600 Amp current rating.
• Three-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• Electronic Trip Design: Electronic trip design (frame only; trip components not included).
• Current-Limiting Construction: Current-limiting construction to help reduce the effects of fault currents.
• High Interrupting Capacity: Interrupting capacity of 65kA at 480VAC and 100kA at 240VAC.
• Form, Fit, and Functional Replacement: Designed for form, fit, and functional replacement in compatible SG600 line installations.
• Built to Last: Built to last in commercial and industrial electrical environments.


Technical Specifications

• Part Number: SGLA36AT0600

• Product Type: Industrial Molded Case Circuit Breaker Frame

• Type: SGLA

• Series: SG600 Line

• Poles: 3

• Amperage: 600A

• Trip Type: Electronic Trip (Frame Only)

• Interrupting Rating:
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Dimensions:
  • Height: 10.09 in.
  • Width: 5.50 in.
  • Depth: 3.81 in.

Material Compliance and Certifications

• Manufacturing Requirements: Manufactured for use in accordance with the original product design and applicable electrical system requirements.
• Installation Requirements: Suitable for installation by qualified personnel in accordance with applicable electrical codes and manufacturer specifications.
• Compatibility Verification: Verify compatibility with the intended electrical system, associated trip components, and equipment before installation.


Where It Works Best

• The SGLA36AT0600 is ideal for commercial, industrial, and institutional power distribution systems that require a compatible SG600 line Type SGLA molded-case circuit breaker frame. It is commonly used in switchboards, panelboards, motor control applications, and distribution equipment that require a 600-amp, 3-pole breaker frame with the specified interrupting ratings. Its form, fit, and functional compatibility make it a practical choice for maintaining existing electrical infrastructure while preserving system configuration.
