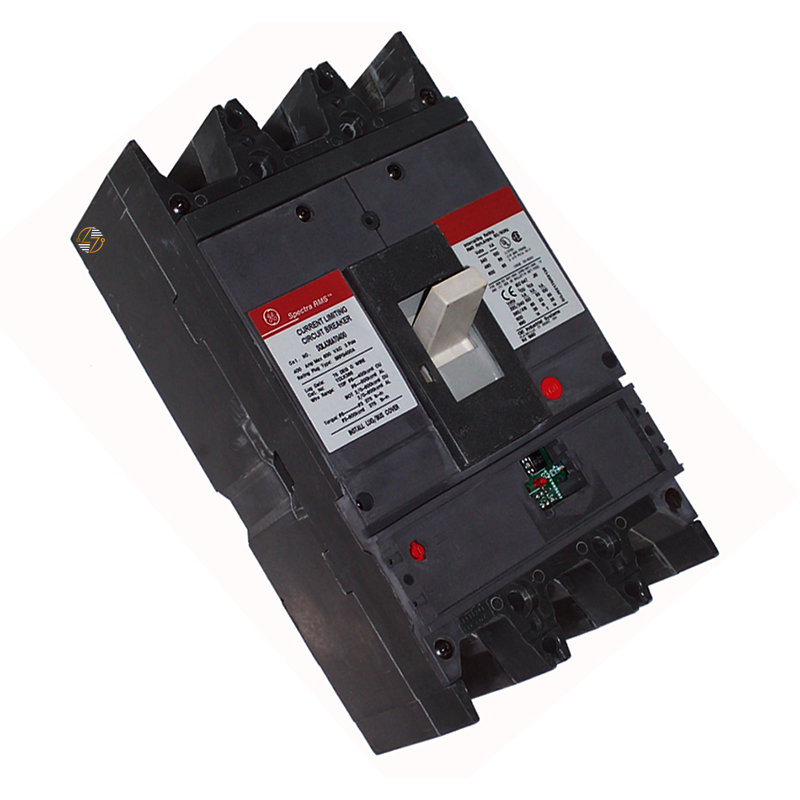

SGLA26AT0600 - 600Amp Max. *Frame Only*

SGLA26AT0600 - 600Amp Max. *Frame Only*

When you need a compatible replacement circuit breaker frame for an existing electrical distribution system, the SGLA26AT0600 provides the form, fit, and function designed for the job. This SG600 Line industrial molded case circuit breaker frame is built for demanding commercial and industrial applications where dependable overcurrent protection is essential. Featuring a 600-amp rating, 2-pole configuration, electronic trip design, and current-limiting construction, it is intended for use with compatible components in existing systems. Because this is a frame-only unit, it's an ideal choice for maintenance, repair, and equipment restoration when the original frame must be replaced while maintaining compatibility with the existing installation. With interrupting ratings of 65 kA at 480 VAC and 100 kA at 240 VAC, the SGLA26AT0600 is designed for applications where higher available fault currents require properly rated equipment. Built to last, this breaker frame helps keep commercial and industrial power distribution systems operating as intended while maintaining the original equipment configuration.

Key Features and Benefits

• SG600 Line Circuit Breaker Frame: SG600 Line industrial molded case circuit breaker frame.
• Frame-Only Configuration: Frame-only configuration for compatible replacement applications.
• 600 Amp Rating: 600 Amp current rating.
• Two-Pole Design: 2-pole design.
• Electronic Trip Configuration: Electronic trip configuration.
• Current-Limiting Construction: Current-limiting construction.
• Interrupting Ratings:
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Built to Last: Built to last in demanding commercial and industrial environments.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible equipment.


Technical Specifications

• Part Number: SGLA26AT0600

• Type: SGLA

• Product Line: SG600

• Product Style: Industrial Molded Case Circuit Breaker Frame

• Configuration: Frame Only

• Poles: 2

• Amperage: 600A

• Trip Type: Electronic Trip

• Interrupting Rating: 65kA @ 480VAC

• Interrupting Rating: 100kA @ 240VAC

• Dimensions:
  • Height: 10.09 in.
  • Width: 5.50 in.
  • Depth: 3.81 in.

Material Compliance and Certifications

• Commercial and Industrial Use: The SGLA26AT0600 is manufactured for use in commercial and industrial electrical distribution systems.
• Compatibility Verification: Always verify compatibility with your equipment and consult applicable electrical codes and manufacturer documentation before installation.
• Qualified Installation: This product should be installed and serviced by qualified personnel in accordance with all applicable safety practices.


Where It Works Best

• The SGLA26AT0600 is commonly used in commercial buildings, manufacturing facilities, industrial plants, institutional campuses, and other power distribution systems that utilize compatible SG600 Line equipment. It's particularly well-suited for maintenance projects where preserving the original equipment configuration is important. As a frame-only component, it is intended for use with the appropriate compatible internal components in existing electrical systems.
